Запчасти Case IH 7100 (9-078) - HEAVY DUTY HITCH, THREE DRILL, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS

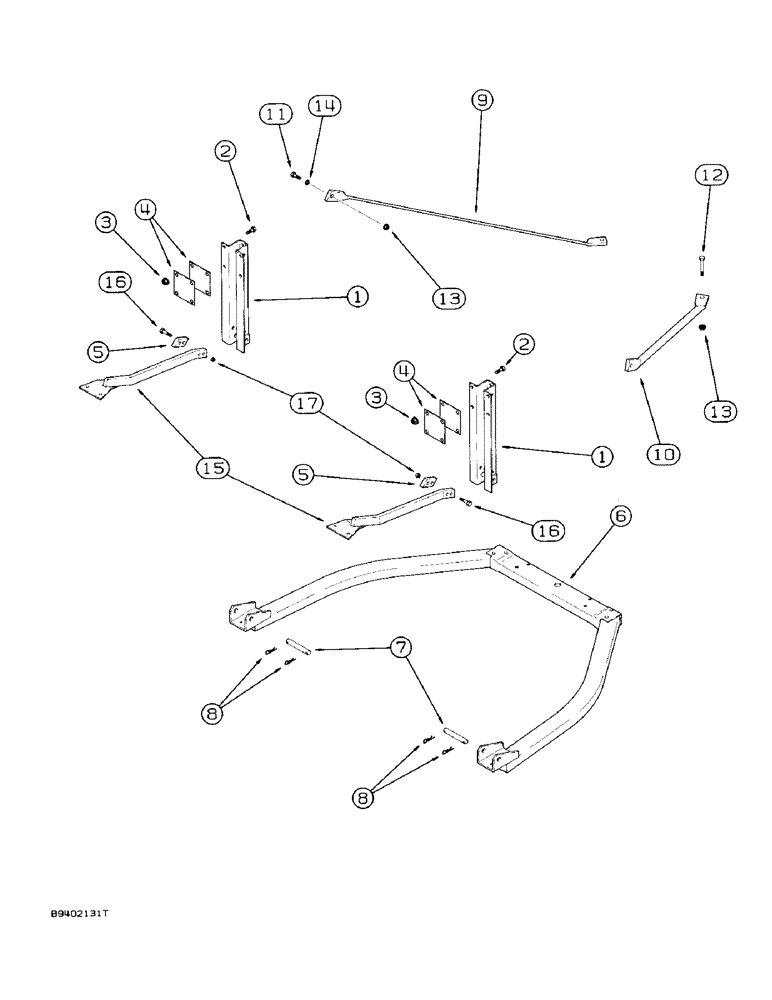

Схема запчастей Case IH 7100 - (9-078) - HEAVY DUTY HITCH, THREE DRILL, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS
14
16
1
4
5
17
5
9
13
13
6
11
2
16
15
1
4
10
8
3
8
2
12
3
7

Артикул

Название

Примечание

Количество

1

817029C2

SUPPORT

ASSEMBLY - hitch

6шт.

2

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

4шт.

3

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

4шт.

4

817357C1

BAR

- support backing

12шт.

5

818133C1

BAR

- support filler (Used only with brace assembly 818130C1)

6шт.

5

1279477C1

BAR

- support spacer, 3/4 inch

6шт.

6

818366C2

TRAILER HITCH

HITCH - basic (See Page 9-57)

2шт.

7

818251C1

PIN

- hitch pivot channel

2шт.

8

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

4шт.

9

818383C2

BRACE

- hitch left, 48-29/32 inch

2шт.

10

818384C2

BRACE

- hitch right, 48-29/32 inch

2шт.

11

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

6шт.

12

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

6шт.

13

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

12шт.

14

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

6шт.

15

1279475C1

BRACE

ASSEMBLY - hitch support (Replaces brace assembly 818130C1 by also ordering, 1279477C1 bar)

6шт.

16

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

12шт.

17

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

12шт.

Выбрано товаров: 18
