Запчасти Case IH 7100 (9-074) - FRONT HITCH, TWO DRILL, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

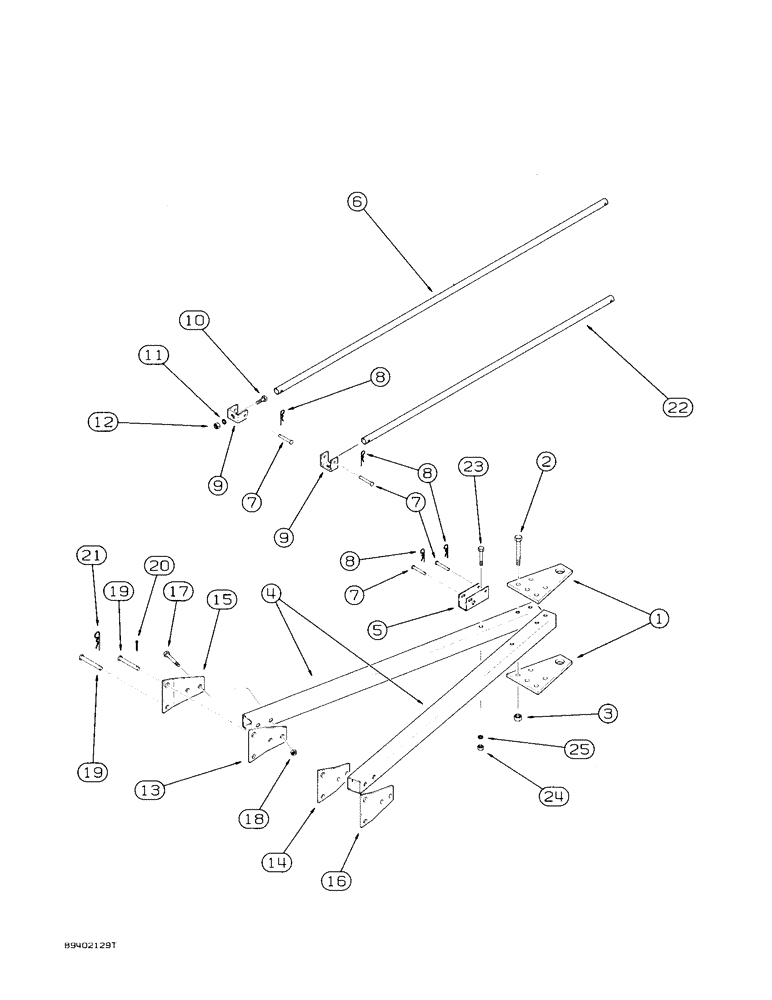

Схема запчастей Case IH 7100 - (9-074) - FRONT HITCH, TWO DRILL, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS
8
17
19
22
1
8
7
21
6
9
23
3
16
8
13
5
12
25
10
7
18
4
11
24
2
14
9
7
19
15
20

Артикул

Название

Примечание

Количество

1

819001C1

PLATE

- hitch front

2шт.

2

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

3

425-1010

NUT,5/8"-11, G5

4шт.

4

819013C2

TUBE,56.55" Length

- hitch front

2шт.

5

819018C2

CHANNEL

- transport tube support front

1шт.

6

1279788C1

SUPPORT TUBE,26.7 mm OD, 1556 mm Length

TUBE - hitch transport support, 61-1/4 inch long

1шт.

7

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch

4шт.

8

1978737C1

COTTER PIN,Int, 1/8" x 49mm

PIN - hair

4шт.

9

819010C1

YOKE

- tube support

2шт.

10

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

12

425-1012

NUT,3/4"-10, G5

1шт.

13

819002C1

PLATE

- hitch hinge left inner

1шт.

14

819003C1

PLATE

- hitch hinge right inner

1шт.

15

819004C1

PLATE

- hitch hinge left outer

1шт.

16

819005C1

PLATE

- hitch hinge right outer

1шт.

17

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

18

425-1010

NUT,5/8"-11, G5

4шт.

19

439-11264

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch

4шт.

20

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

21

1978739C1

PIN

- hair

2шт.

22

819668C1

TUBE

- hitch transport support, 46 inch long

1шт.

23

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

24

425-1010

NUT,5/8"-11, G5

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Выбрано товаров: 25
