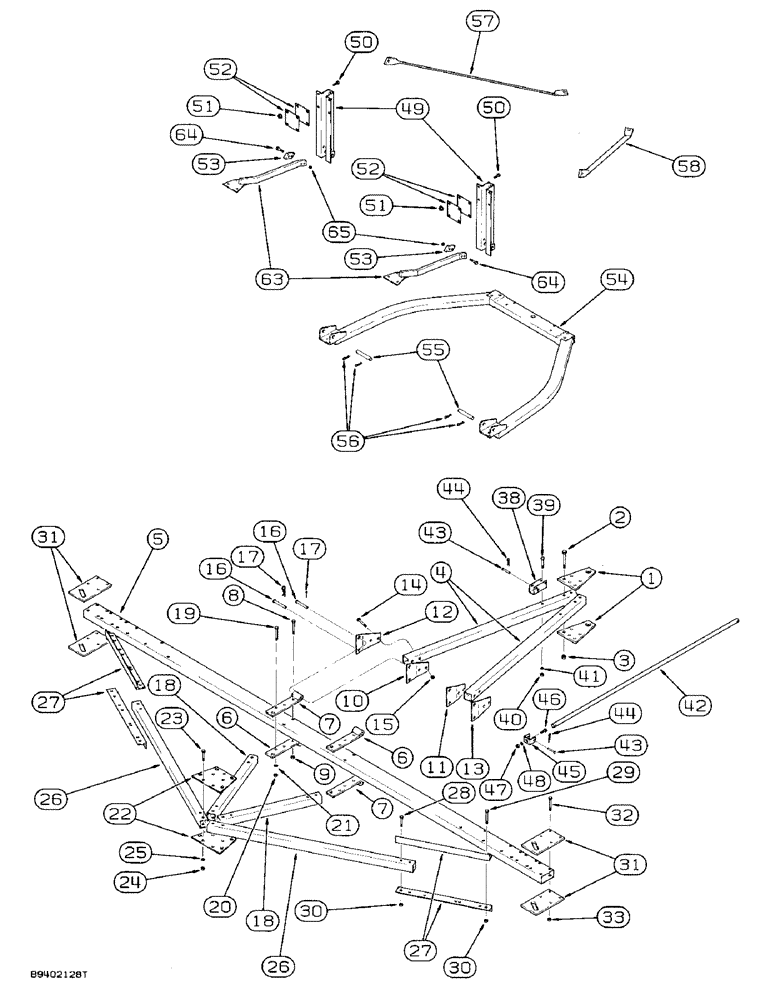

Запчасти Case IH 7100 (9-070) - HEAVY DUTY HITCH, TWO DRILL, MACHINES BUILT 1980 THROUGH 1984 (09) - CHASSIS/ATTACHMENTS

1

819001C1

PLATE

- hitch front

2шт.

2

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

3

425-1010

NUT,5/8"-11, G5

4шт.

4

819013C2

TUBE,56.55" Length

- hitch front

2шт.

5

819007C2

TUBE,180.4" Length

- hitch cross

1шт.

6

819011C1

SUPPORT

- hitch hinge, lower left and upper right

2шт.

7

819012C1

SUPPORT

- hitch hinge, lower right and upper left

2шт.

8

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

9

425-1010

NUT,5/8"-11, G5

4шт.

10

819002C1

PLATE

- hitch hinge, left inner

1шт.

11

819003C1

PLATE

- hitch hinge, right inner

1шт.

12

819004C1

PLATE

- hitch hinge, left outer

1шт.

13

819005C1

PLATE

- hitch hinge, right outer

1шт.

14

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

15

425-1010

NUT,5/8"-11, G5

4шт.

16

Q3795

HEADED PIN,3/4" x 4"

PIN - headed, 3/4 x 4 inch

4шт.

17

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

17

1978739C1

PIN

- cotter

2шт.

18

819016C1

TUBE,30.46" Length

- hitch stabilizer, center

2шт.

19

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

20

425-1010

NUT,5/8"-11, G5

4шт.

21

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

22

819009C1

PLATE

- hitch stabilizer rear

2шт.

23

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

8шт.

24

425-1010

NUT,5/8"-11, G5

8шт.

25

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

8шт.

26

819017C1

TUBE,60.2" Length

- hitch stabilizer outer

2шт.

27

819008C1

ANGLE

BAR - outer tube support

4шт.

28

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

29

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

30

425-1010

NUT,5/8"-11, G5

8шт.

31

819019C1

BAR

- drill hitch

4шт.

32

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch

8шт.

33

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

34

819258C1

BOLT,Hex, 7/8" - 9 x 5", Drilled

- hex, 7/8 NC x 5 inch, not shown

2шт.

35

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC, not shown

2шт.

36

32-828

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), , not shown 1/8" x 1 3/4"

2шт.

37

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch, not shown

4шт.

38

819018C2

CHANNEL

- transport tube support front

1шт.

39

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

40

425-1010

NUT,5/8"-11, G5

1шт.

41

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

42

819022C1

TUBE

- hitch transport support

1шт.

43

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN, HEADED, 3/8" x 3 1/4"

2шт.

44

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - quick attachable cotter

2шт.

45

819010C1

YOKE

- tube support (Continued from previous page)

1шт.

46

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

47

425-1012

NUT,3/4"-10, G5

1шт.

48

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

49

817029C2

SUPPORT

- hitch

4шт.

50

326-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

16шт.

51

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8

16шт.

52

817357C1

BAR

- support backing

8шт.

53

818133C1

BAR

- support filler (Used only with brace assembly 818130C1)

4шт.

53

1279477C1

BAR

- support spacer, 3/4 inch thick

4шт.

54

818366C2

TRAILER HITCH

HITCH - basic (See Page 9-57)

2шт.

55

818251C1

PIN

- hitch pivot channel

2шт.

56

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

4шт.

57

818383C2

BRACE

- hitch left, 48-29/32 inch

2шт.

59

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Not shown Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

58

818384C2

BRACE

- hitch left, 48-29/32 inch

2шт.

59

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Not shown Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

60

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

not shown Hex, 5/8"-11 x 3", G5

4шт.

61

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, Grade 8, not shown

8шт.

62

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch, not shown

4шт.

63

1279475C1

BRACE

- hitch support (Replaces brace 818130C1 by also ordering, 1279477C1 bar)

4шт.

64

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

8шт.

65

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

8шт.
