Запчасти Case IH 7100 (9-066) - HITCH BRACES,FOR MULTIPLE DRILLS, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

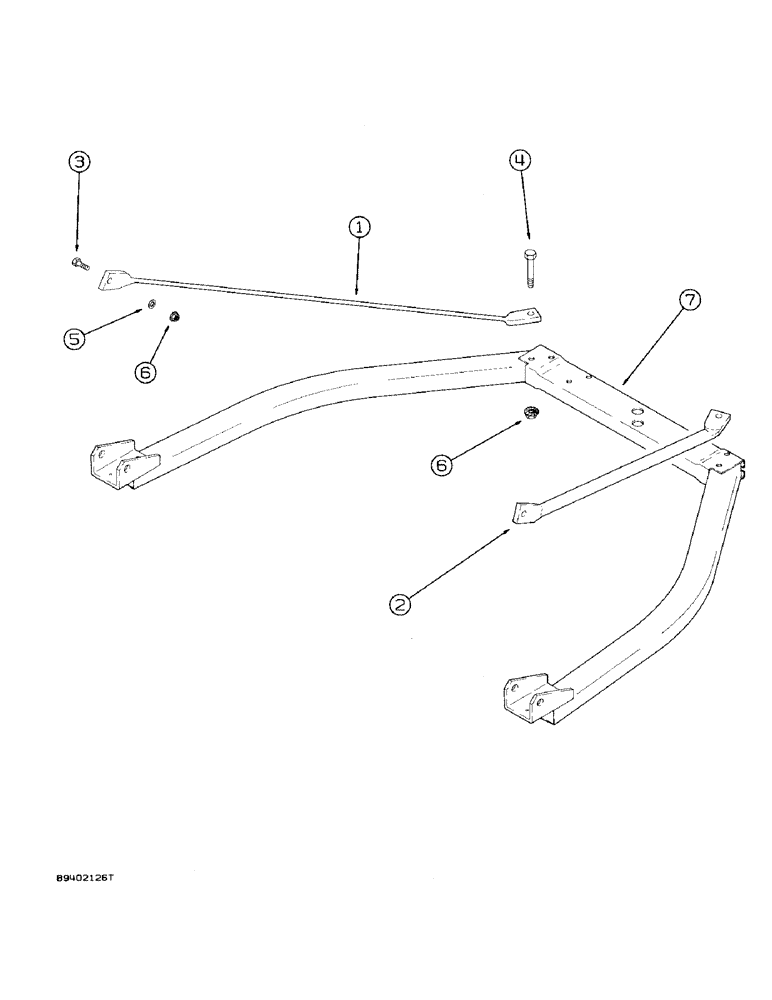

Схема запчастей Case IH 7100 - (9-066) - HITCH BRACES,FOR MULTIPLE DRILLS, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS
5
7
6
4
1
6
3
2

Артикул

Название

Примечание

Количество

1

818383C2

BRACE

- hitch, left (48-29/32 inch)

1шт.

2

818384C2

BRACE

- hitch, right (48-29/32 inch)

1шт.

3

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

4

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

5

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 7/32 inch

2шт.

6

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- hex flange lock, 5/8 inch NC, grade 8

4шт.

7

REF

INSTRUCTION

HITCH ASSEMBLY - basic (See Page 9-57)

1шт.

Выбрано товаров: 7
