Запчасти Case IH 7100 (9-062) - HITCH LINKS, FOUR DRILL, INNER, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS

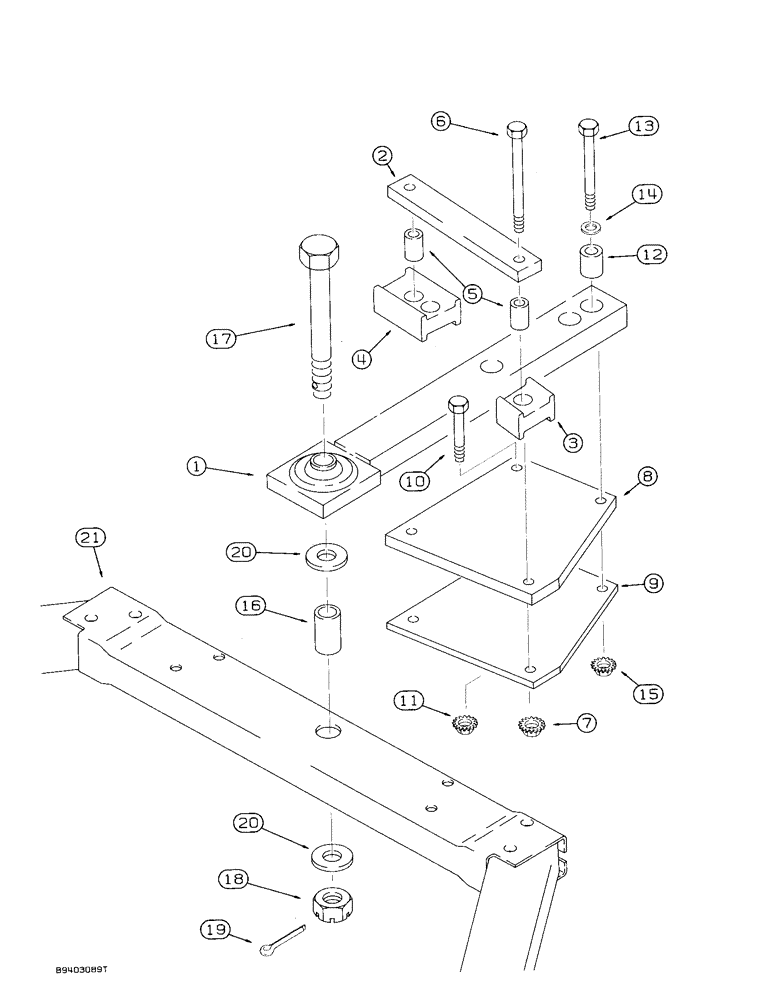

Схема запчастей Case IH 7100 - (9-062) - HITCH LINKS, FOUR DRILL, INNER, MACHINES BUILT 1985 AND AFTER, WITH HITCH P.I.N. 501 AND AFTER (09) - CHASSIS/ATTACHMENTS
19
2
20
9
16
4
21
17
12
18
1
13
10
8
11
3
6
14
15
5
20
7

Артикул

Название

Примечание

Количество

1

1279485C1

LINK

- hitch

1шт.

2

1279489C1

BAR

- link guide, inner

1шт.

3

1279491C1

BLOCK

- stop

1шт.

4

1279493C1

BLOCK

- stop

1шт.

5

1279490C1

SPACER

- stop block, 41/64 x 7/8 x 1-5/16 inch

2шт.

6

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

2шт.

7

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

8

1279488C1

PLATE

- upper hitch, inner

1шт.

9

1279487C1

PLATE

- lower hitch, inner

1шт.

10

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

11

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

12

1279492C1

SPACER

- pivot, 41/64 x 1-1/8 x 1-5/16 inch

1шт.

13

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

14

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch

1шт.

15

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

16

1279058C1

SPACER

- hitch pivot, 29/32 x 1-1/4 x 2-7/64 inch

1шт.

17

1279548C1

BOLT,Hex, 7/8" - 9 x 6 1/2", Gr 8, Drilled

- hex, 7/8 inch hitch ball point

1шт.

18

425-1214

SLOTTED NUT,7/8"-9, G5

NUT - hex slotted, 7/8 inch NC

1шт.

19

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

20

1279868C1

WASHER

- flat, 29/32 x 2 x 7/32 inch

2шт.

21

818366C2

TRAILER HITCH

HITCH ASSEMBLY - basic (See Page 9-57)

1шт.

Выбрано товаров: 21
