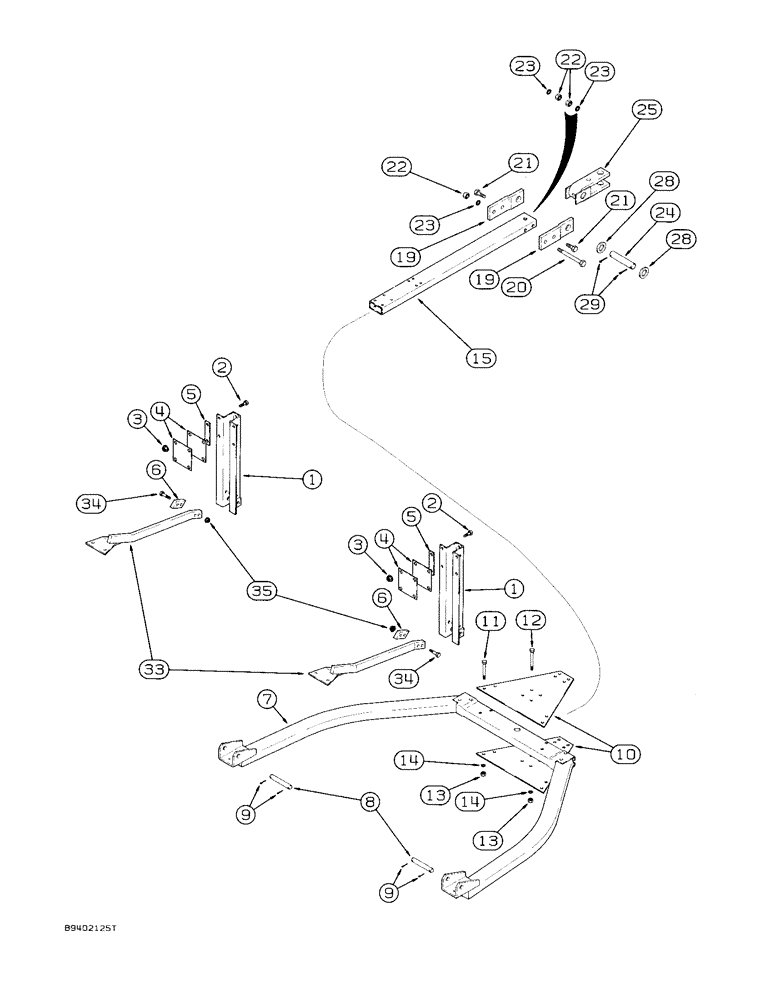

Запчасти Case IH 7100 (9-056) - BASIC HITCH AND CONNECTIONS, SINGLE DRILL HEAVY DUTY HITCH (09) - CHASSIS/ATTACHMENTS

1

817029C2

SUPPORT

- hitch

2шт.

2

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8, Used with 9, 12, and 13 foot drills

8шт.

2

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8, Used with 14 foot drills

8шт.

3

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

8шт.

4

817357C1

BAR

- support backing, used with 13 and 14 foot drills

4шт.

5

817481C1

BAR

- support backing, used with 9, 12, and 13 foot drills

2шт.

6

818133C1

BAR

- support filler (Used only with brace 818130C1), used with 9, 12, and 13 foot drills

2шт.

6

1279477C1

BAR

- support spacer, 3/4 inch thick

2шт.

7

818366C2

TRAILER HITCH

HITCH - basic

1шт.

8

818251C1

PIN

- hitch pivot channel

2шт.

9

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4шт.

10

818354C1

PLATE

- hitch

2шт.

11

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

11шт.

12

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

15

818355C1

TUBE,1093 mm Length

- hitch

1шт.

16

818356C1

BAR

BRACE - clevis pivot, not shown, if used

2шт.

17

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

If used with item 16, Not shown Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

18

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

If used with item 16, not shown Hex, 5/8"-11 x 5 1/2", G5

1шт.

19

1344549C1

TRAILER HITCH

BRACE - clevis pivot (Replaces 818356C1)

2шт.

20

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

21

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

22

425-1010

NUT,5/8"-11, G5

3шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

23a

818142C1

SPACER

- hitch clevis pivot (If used with 818356C1 brace) not shown

1шт.

24

819724C1

PIN

- pivot (Replaces 818142C1)

1шт.

25

1333760C1

CLEVIS

- hitch (Replaces 813560C1 and 608499R21)

1шт.

26

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch, not shown

1шт.

27

608595R1

NUT

- hex lock, 5/8 inch NC, not shown

1шт.

28

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 7/64 inch

4шт.

29

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

30

813560C1

CLEVIS

- hitch, if used, not shown

1шт.

31

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

- hex, 1 NC x 6 inch, if used with item 30, not shown

1шт.

32

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, if used with item 30, not shown

1шт.

33

1279475C1

BRACE

- hitch support (Replaces 818130C1 by also ordering bar, 1279477C1)

2шт.

34

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

- hex, 1/2 NC x 2-3/4 inch, grade 8

4шт.

35

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.
