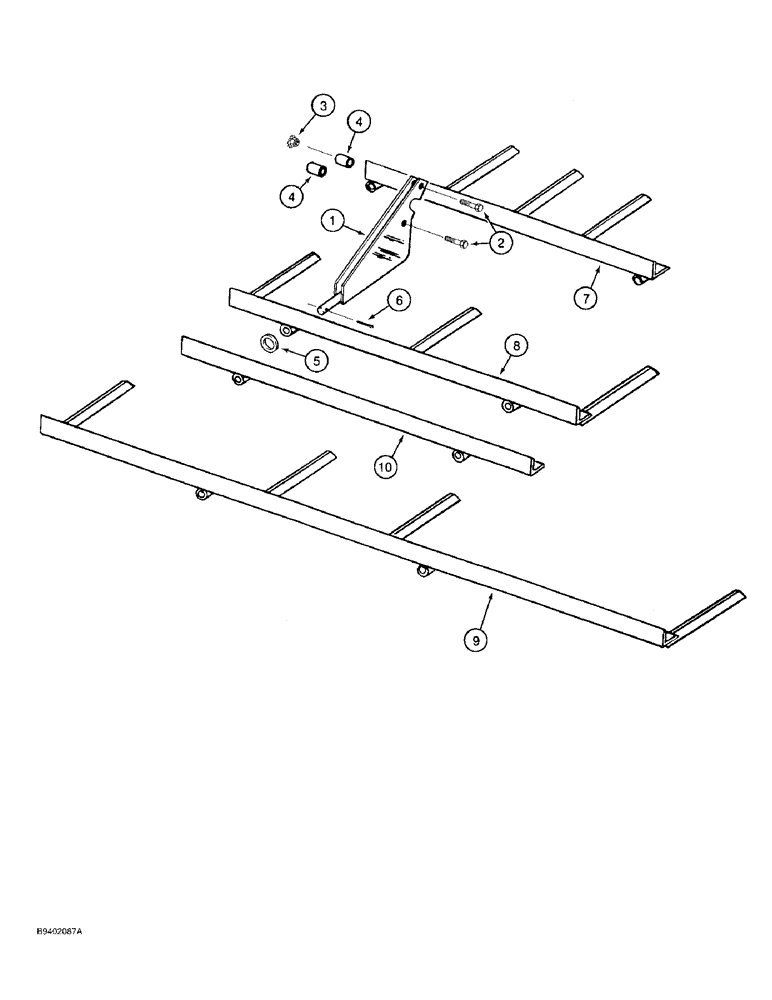

Запчасти Case IH 7100 (9-054) - PRESS WHEEL STONE KICKER AND GANG LEVELER (09) - CHASSIS/ATTACHMENTS

1

816620C2

SUPPORT

- stone kicker frame or gang leveler

4-6шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8-12шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8-12шт.

4

HA4457

SPACER

- 1/2 x 5/8 inch pipe

8-12шт.

5

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4-6шт.

6

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

4-6шт.

7

817525C2

FRAME

- stone kicker, center (18 x 8 inch drill)

1шт.

8

817526C2

FRAME

- stone kicker, outer (18 x 8 inch drill)

2шт.

9

818122C2

FRAME

- stone kicker (8 x 18 inch drill)

2шт.

9

843165C2

FRAME

- stone kicker (10 x 14 inch hillside drill)

2шт.

10

817589C1

ANGLE

- gang leveler (12 x 10 inch drill)

2шт.

10

818287C1

ANGLE

- gang leveler (10 x 12 and 14 x 12 inch drill)

2шт.

10

817522C1

ANGLE

- gang leveler, outer (10 x 14 inch drill)

2шт.

10

817523C1

ANGLE

- gang leveler, center (10 x 14 inch drill)

1шт.

10

817529C1

ANGLE

- gang leveler, outer (16 x 10 inch drill)

2шт.

10

817528C1

ANGLE

- gang leveler, center (16 x 10 inch drill)

1шт.

10

817527C1

ANGLE

- gang leveler, center (14 x 12 inch drill)

1шт.

10

818288C1

ANGLE

- gang leveler, outer (14 x 10 inch drill)

2шт.

10

818289C1

ANGLE

- gang leveler, center (14 x 10 inch drill)

1шт.
