Запчасти Case IH 7100 (9-050) - GRASS SEED ATTACHMENT, FEED MECHANISM, USED WITH 16 X 10 AND 18 X 8 INCH DRILL (09) - CHASSIS/ATTACHMENTS

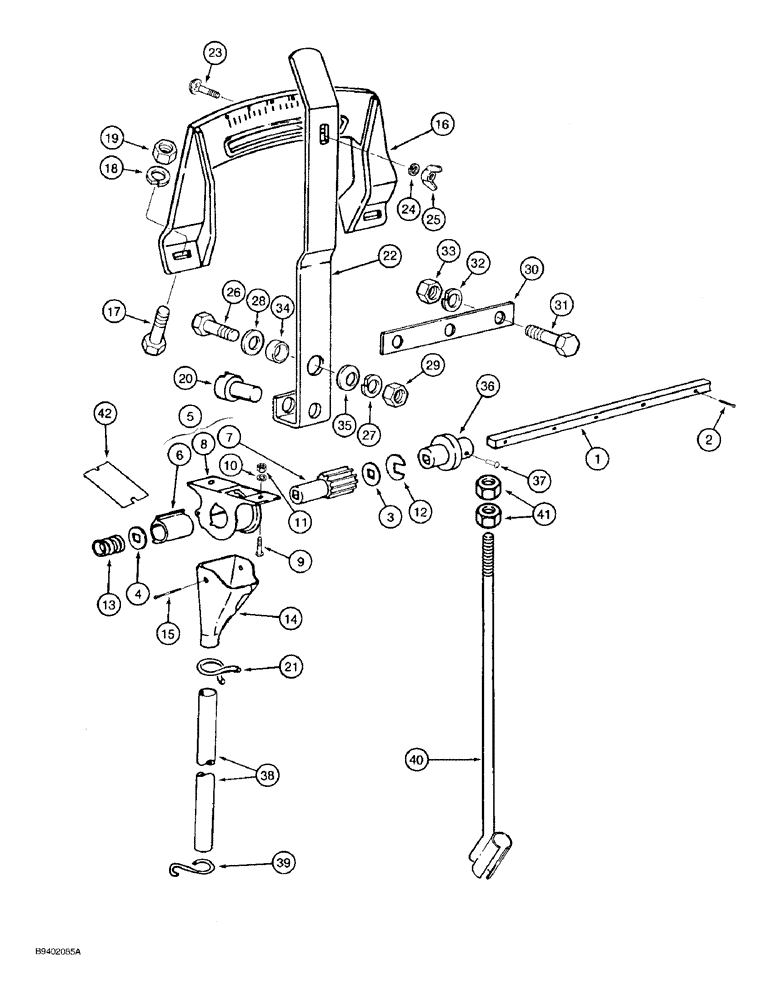

Схема запчастей Case IH 7100 - (9-050) - GRASS SEED ATTACHMENT, FEED MECHANISM, USED WITH 16 X 10 AND 18 X 8 INCH DRILL (09) - CHASSIS/ATTACHMENTS
1
28
23
41
17
6
40
26
3
2
18
10
5
4
21
30
12
25
35
27
38
15
7
24
14
33
22
39
13
8
37
9
19
28
16
42
32
31
36
11
20
29

Артикул

Название

Примечание

Количество

1

815626C1

DRIVE SHAFT

BAR - feed shaft, 16 x 10 inch drill

2шт.

1

816334C1

BAR

- feed shaft, 18 x 8 inch drill

2шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

3

498-81000

SQ HOLE WASHER,.344" x 3/4" x .018", Sq. Hole

- square hole, 11/32 x 3/4 x 1/64 inch

1шт.

4

498-81001

SQ HOLE WASHER,.344" x 3/4" x .060", Sq. Hole

- square hole, 11/32 x 3/4 x 1/16 inch

1шт.

5

600924R93

CUP ASSY.

CUP ASSEMBLY - grass seed

1шт.

6

600923R2

BLOCK

CUP - feed cut-off

1шт.

7

601463R1

FINGER ASSY.

ROLL - feed

1шт.

8

615750R92

SUPPORT ASSY.

CUP - feed

1шт.

9

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

12

N32109

WASHER

- slotted, 11/32 x 3/4 x 1/64 inch

2шт.

13

N32176

SPRING

- feed roll

1шт.

14

603817R1

TUBE

TOP - grass seed tube

1шт.

15

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

16

815627C1

INDICATOR

- grass box feed

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

815630C1

PIN,25.4mm OD x 42.16mm L

- feed shifter

1шт.

21

603699R2

CLAMP

- seed tube top

1шт.

22

815628C1

LEVER

- shifter

1шт.

23

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

25

142745

NUT, WING

NUT - wing, 5/16 inch NC

1шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

815629C1

BAR

BRACE - reinforcing

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

32

492-11038

LOCK WASHER,3/8"

2шт.

33

425-106

NUT,3/8"-16, Cl 5

2шт.

34

95944C1

BUSHING

SPACER - lever pivot

1шт.

35

151401C1

BELLEVILLE WASHER

WASHER - Belleville

1шт.

36

819227C1

SLEEVE

- feed shifter

1шт.

37

104056

RIVET

- 1/8 x 7/8 inch

1шт.

38

REF

INSTRUCTION

TUBE - seed (Cut 74-13/16 inch length from 25 foot roll of 997790R1)

1шт.

39

603882R1

HOOK

- seed tube lower

1шт.

40

605088R11

HOLDER

- band seed tube

1шт.

41

425-106

NUT,3/8"-16, Cl 5

2шт.

42

818183C1

PROTECTIVE COVER

BAR - feeder cover

1шт.

Выбрано товаров: 43
