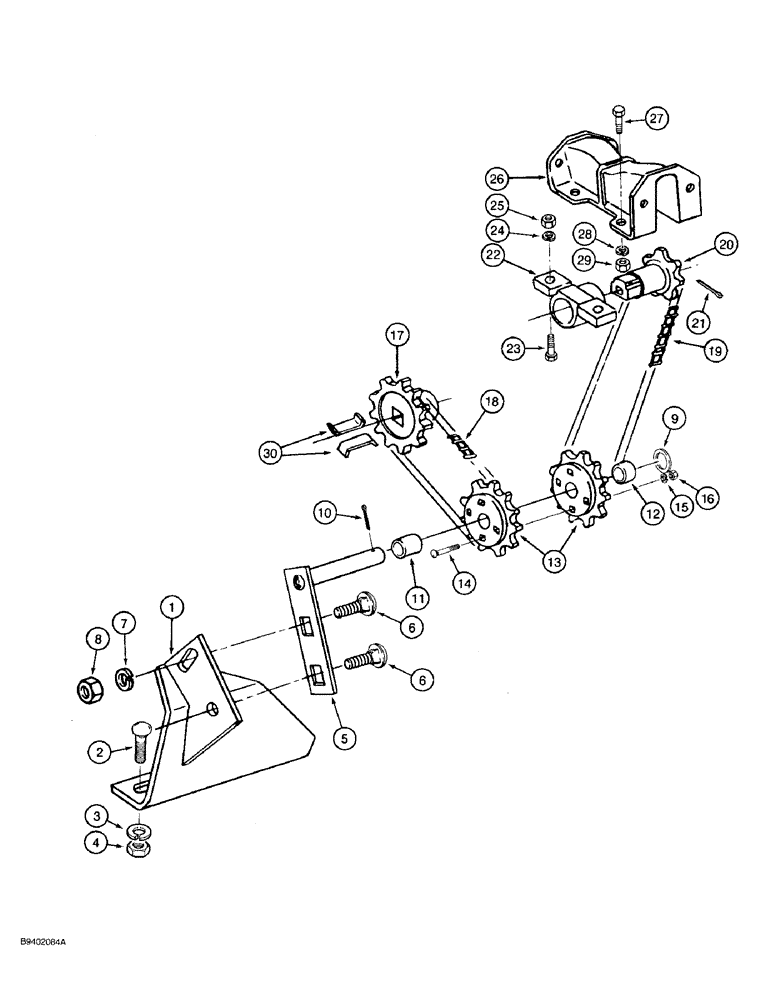

Запчасти Case IH 7100 (9-048) - GRASS SEED ATTACHMENT, SEED DRIVE, USED WITH 16 X 10 AND 18 X 8 INCH DRILL (09) - CHASSIS/ATTACHMENTS

1

818292C1

SUPPORT

- chain tightener bracket

1-2шт.

2

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

2-4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2-4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2-4шт.

5

816340C2

BRACKET

- drive chain tightener

1-2шт.

6

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2-4шт.

7

492-11038

LOCK WASHER,3/8"

2-4шт.

8

425-106

NUT,3/8"-16, Cl 5

2-4шт.

9

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1-2шт.

10

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1-2шт.

11

PO15237

SPACER

- tightener sprocket, inner

1-2шт.

12

590750R1

SPACER

- tightener sprocket, outer

1-2шт.

13

819949C1

DRIVE SPROCKET

SPROCKET - chain tightener

2-4шт.

14

433-432

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2", Gr 5

BOLT - carriage, 1/4 x 2 inch

2-4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2-4шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2-4шт.

17

1978907C1

DRIVE SPROCKET

SPROCKET - grass seed drive, 10 tooth (Replaces 815324C1)

2шт.

18

REF

INSTRUCTION

CHAIN - grass seed drive, left-hand and right-hand of 18 x 8 inch drill - left-hand of 16 x 10 inch drill (Use 52 links from 10 foot roll of No. 25 chain CS25)

1шт.

18

REF

INSTRUCTION

CHAIN - grass seed drive, right-hand of 16 x 10 inch drill (Use 40 links from 10 foot roll of No. 25 chain CS25)

1шт.

19

REF

INSTRUCTION

CHAIN - grass seed driven, left-hand and right-hand of 18 x 8 inch drill - left-hand of 16 x 10 inch drill (Use 43 links from 10 foot roll of No. 25 chain CS25)

1шт.

19

REF

INSTRUCTION

CHAIN - grass seed driven, right-hand of 16 x 10 inch drill (Use 42 links from 10 foot roll of No. 25 chain CS25)

1шт.

20

NA1475

DRIVE SPROCKET

SPROCKET - grass feed driven, 7 tooth

1-2шт.

21

432-1216

COTTER PIN,3/16" x 1"

1-2шт.

22

816533C1

BRACKET

BEARING - sprocket

1-2шт.

23

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2-4шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2-4шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2-4шт.

26

816532C1

GUARD

- drive chain

1-2шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4-8шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4-8шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4-8шт.

30

815803C1

CLIP

- sprocket retaining (Used only with 815324C1)

2-4шт.
