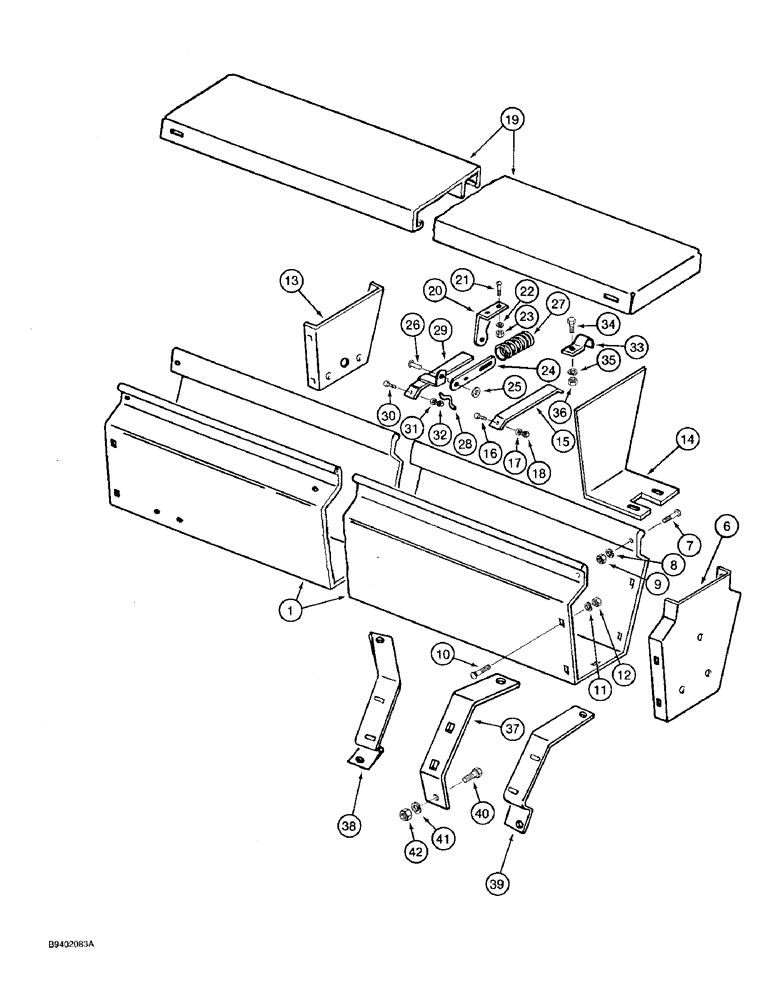

Запчасти Case IH 7100 (9-046) - GRASS SEED ATTACHMENT, HOPPER, USED WITH 16 X 10 AND 18 X 8 INCH DRILL (09) - CHASSIS/ATTACHMENTS

1

843140C1

HOPPER

- grass seed (16 x 10 inch drill)

1шт.

1

816857C2

HOPPER

- grass seed (18 x 8 inch drill)

1шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, (Not shown) Short NK, 5/16"-18 x 1/2", G5, Full Thd

4-8шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch (Not shown)

8-12шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch (Not shown)

2-6шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Not shown) 5/16"

14-26шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Not shown)

14-26шт.

6

819060C2

PANEL, SIDE

PANEL - hopper end

2шт.

7

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

4шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

10

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

8шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

13

815597C1

PLATE

BAFFLE - hopper

2-4шт.

14

815598C1

BAFFLE

- grass seed

5-7шт.

15

815599C1

BRACKET

BRACE - hopper

4шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

19

818184C1

COVER

- hopper (16 x 10 inch drill)

1шт.

19

816779C1

COVER

- hopper (18 x 8 inch drill)

1шт.

20

815615C1

SUPPORT

BRACKET - cover spring

1шт.

21

470-1258

SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"

- machine, pan head slotted, 1/4 NC x 1/2 inch

2шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

24

N32052

BAR

- cover spring plunger

1шт.

25

495-81100

WASHER,0.2" ID x 0.88" OD x 0.05" Thk

- flat, 13/64 x 7/8 x 3/64 inch

1шт.

26

104066

RIVET,But Hd, 3/16" x 9/32"

- 3/16 x 3/8 inch

1шт.

27

6628

SPRING

- plunger

1шт.

28

N32114

LINCH PIN

LOCK - spring

1шт.

29

815616C1

BRACKET

- cover

1шт.

30

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

33

815618C1

CLAMP

- cover hinge

7шт.

34

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

34

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

36

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

37

815636C1

BRACKET

BRACE - hopper support, intermediate

2-4шт.

38

818265C1

BRACKET

SUPPORT - hopper end, left-hand

1шт.

39

818266C1

BRACKET

SUPPORT - hopper end, right-hand

1шт.

40

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4-6шт.

41

492-11038

LOCK WASHER,3/8"

4-6шт.

42

425-106

NUT,3/8"-16, Cl 5

4-6шт.
