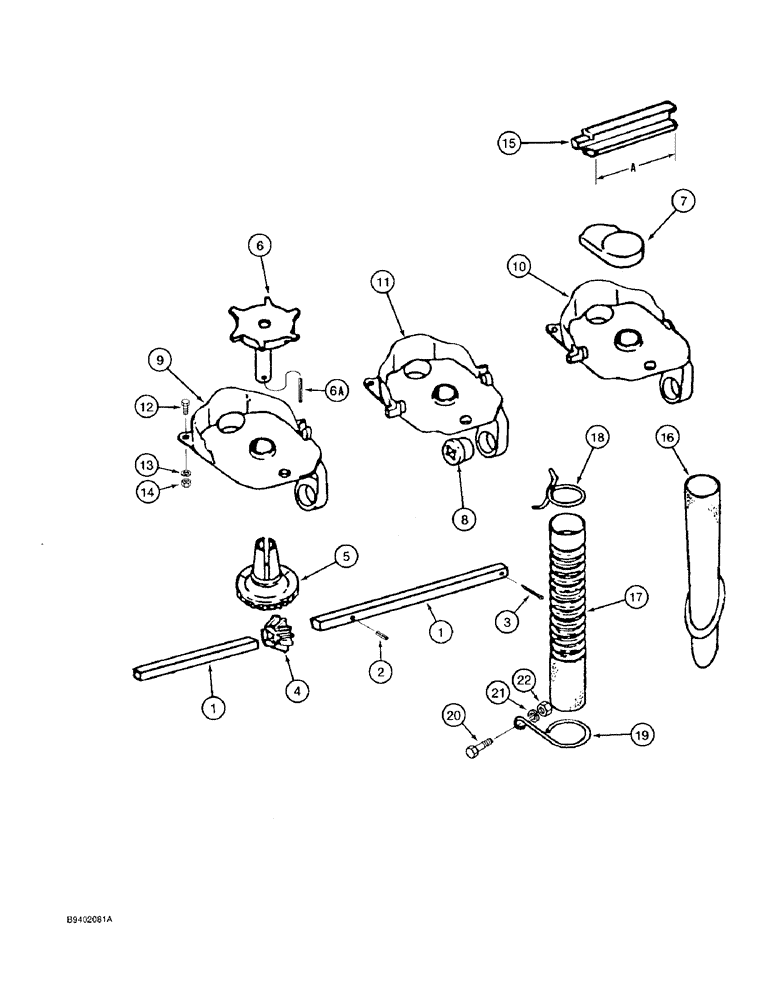

Запчасти Case IH 7100 (9-042) - FERTILIZER FEED PARTS (09) - CHASSIS/ATTACHMENTS

1

817193C1

BAR

- fertilizer feed shaft, 107-3/32 inch long (12 x 10 and 10 x 12 inch drill)

1шт.

1

818219C1

BAR

- fertilizer feed shaft, left-hand, 63-1/8 inch long (10 x 14 and 8 x 18 inch drill)

1шт.

1

REF

INSTRUCTION

BAR - fertilizer feed shaft, right-hand, 71-7/8 inch long (Cut from 816228C1 bar, see below)(10 x 14, 8 x 18, 14 x 10 and 18 x 8 inch drill)

1шт.

1

REF

INSTRUCTION

BAR - fertilizer feed shaft, left-hand, 67-3/32 inch long (Cut from 816228C1 bar, see below)(14 x 10 and 18 x 8 inch drill)

1шт.

1

REF

INSTRUCTION

BAR - fertilizer feed shaft, left-hand, 72-1/8 inch long (Cut from 816228C1 bar, see below)(16 x 10 and 14 x 12 inch drill)

1шт.

1

REF

INSTRUCTION

BAR - fertilizer feed shaft, right-hand, 77-13/16 inch long (Cut from 816228C1 bar, see below)(16 x 10 and 14 x 12 inch drill)

1шт.

2

438-31216

PIN,3/16" x 1", Coiled

1-2шт.

3

432-1216

COTTER PIN,3/16" x 1"

1-2шт.

4

603463R2

GEAR

- bevel pinion, 12 tooth

10-18шт.

5

F282C

GEAR

- feed shaft bevel

10-18шт.

6

602554R11

DRIVE SPROCKET

WHEEL ASSEMBLY - star feed

10-18шт.

6a

N62414

PIN,3.96mm OD x 28mm L

- shear

1шт.

7

603593R1

BLOCK

- fertilizer feed shut-off

10-18шт.

8

603462R1

TRUNNION

- bevel pinion

10-18шт.

9

603451R2

PLATE

- bottom end, left-hand

1-2шт.

10

603452R2

PLATE

- bottom end, right-hand

1-2шт.

11

603453R2

PLATE

- bottom intermediate

6-14шт.

12

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

12

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- machine, flat head slotted, 1/4 NC x 5/8 inch

1шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

15

605450R1

SPACER

- bottom plate, "A" dimension is 3-25/32 inch

1шт.

15

843121C1

SPACER

- bottom plate, "A" dimension is 5-25/32 inch

1шт.

15

817310C1

SPACER

- bottom plate, "A" dimension is 9-9/16 inch

1шт.

15

818225C1

SPACER

- bottom plate, "A" dimension is 7-11/16 inch

1шт.

15

817312C1

SPACER

- bottom plate, "A" dimension is 4-7/8 inch

1шт.

15

818224C1

SPACER

- bottom plate, "A" dimension is 4-1/64 inch

1шт.

15

817313C1

SPACER

- bottom plate, "A" dimension is 2-3/8 inch

1шт.

15

815391C1

BLOCK

SPACER - bottom plate, "A" dimension is 2-1/8 inch

1шт.

15

605153R1

SHIM

SPACER - bottom plate, "A" dimension is 4-1/4 inch

1шт.

16

607289R2

TUBE,1.25" OD, 7" Length

- combined delivery, fertilizer

10-18шт.

17

817229C1

TUBE

- seperate delivery, fertilizer

10-18шт.

18

603591R1

SPRING

- fertilizer tube, upper (For seperate delivery tube)

10-18шт.

19

1268314C1

CLIP

CLAMP - fertilizer tube, center, 19/32 inch mounting hole (For seperate delivery tube)

10-18шт.

19

603592R1

SPRING CLIP

CLAMP - fertilizer tube, lower, 13/32 inch mounting hole (For seperate delivery tube)

10-18шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

816228C1

BAR

- fertilizer feed shaft, 92-1/4 inch long

1шт.
