Запчасти Case IH 7100 (9-040) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS

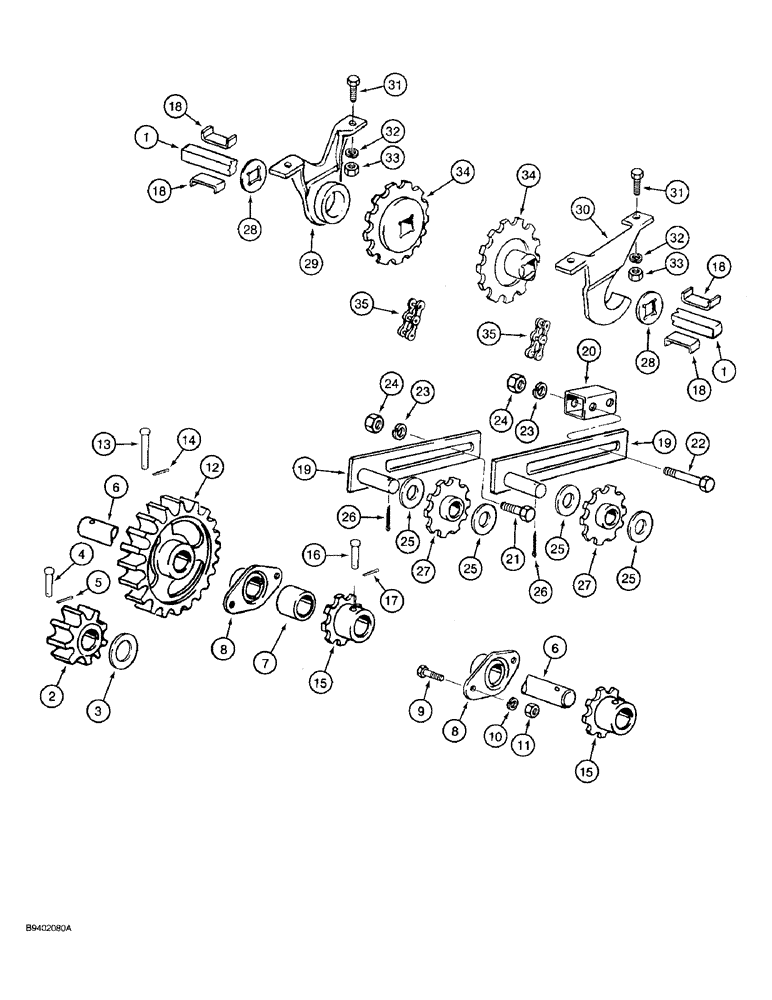

Схема запчастей Case IH 7100 - (9-040) - FERTILIZER DRIVE (09) - CHASSIS/ATTACHMENTS
17
2
24
25
26
25
27
32
28
18
18
33
33
14
19
32
23
29
34
11
18
34
16
10
3
8
15
21
31
31
7
8
25
27
22
12
35
1
26
24
1
16
30
15
5
13
28
6
9
25
35
19
23
6
20
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BAR - fertilizer feed shaft (See page 9-35, item 1, for correct shaft)

1шт.

2

817473C1

GEAR

- fertilizer drive, 13 tooth

1шт.

3

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

4

439-1628

HEADED PIN,3/8" x 1 3/4"

PIN - headed, 3/8 x 1-3/4 inch

1шт.

5

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

6

817264C1

ROD

- fertilizer drive, shaft

1шт.

7

817752C1

SPACER

- fertilizer drive shaft

1шт.

8

596943R92

BEARING ASSY,25.45mm ID

BEARING - clutch extension shaft

2шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

12

817474C1

GEAR

- fertilizer drive shaft, 29 tooth

1шт.

13

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

PIN - headed, 3/8 x 2 inch

1шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

15

817483C1

SPROCKET ASSY.

SPROCKET - fertilizer drive shaft, 7 tooth

1-2шт.

16

439-1628

HEADED PIN,3/8" x 1 3/4"

PIN - headed, 3/8 x 1-3/4 inch

1-2шт.

17

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1-2шт.

18

816279C1

CLIP

- sprocket retaining

2-4шт.

19

816040C2

BRACKET

- fertilizer drive tightener

1-2шт.

20

843270C1

SPACER

- fertilizer drive chain tightener (10 x 14 and 8 x 18 inch drill)

1шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2-4шт.

22

433-640

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch

2шт.

23

492-11038

LOCK WASHER,3/8"

2-4шт.

24

425-106

NUT,3/8"-16, Cl 5

2-4шт.

25

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2-4шт.

26

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1-2шт.

27

819458C1

DRIVE SPROCKET

SPROCKET - fertilizer drive tightener, 8 tooth

1-2шт.

28

569875R1

SQ HOLE WASHER

- square hole, 25/32 x 1-3/4 x 3/64 inch

1-2шт.

29

843156C1

HANGER

- fertilizer driven sprocket, right-hand (8 x 18, 10 x 14, 14 x 10, 18 x 8, 16 x 10 and 14 x 12 inch drill)

1шт.

30

816276C1

HANGER

- fertilizer driven sprocket, left-hand (14 x 10, 16 x 10, 14 x 12, 12 x 10 and 10 x 12 inch drill)

1шт.

30

816277C1

HANGER

- fertilizer driven sprocket, left-hand (8 x 18, 18 x 8 and 10 x 14 inch drill)

1шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2-4шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2-4шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2-4шт.

34

817484C1

SPROCKET ASSY.

SPROCKET - fertilizer feed shaft drive, 13 tooth

1-2шт.

35

REF

INSTRUCTION

CHAIN - fertilizer drive (Quantity of 1 per drive, use 33 links from 10 foot roll 569088R91 chain and 1 457113R91 connecting link)

1-2шт.
