Запчасти Case IH 7100 (9-036) - GRAIN FEED SHAFT (09) - CHASSIS/ATTACHMENTS

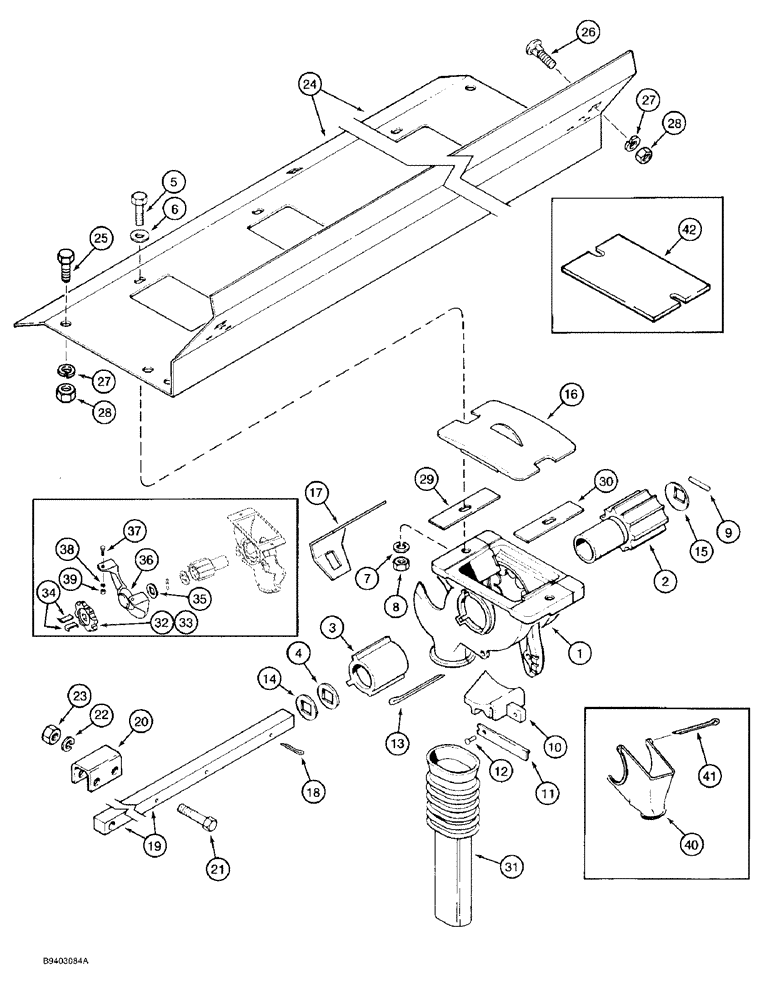

Схема запчастей Case IH 7100 - (9-036) - GRAIN FEED SHAFT (09) - CHASSIS/ATTACHMENTS
38
28
14
27
22
42
10
29
28
40
17
33
31
5
35
6
8
11
24
2
9
34
27
1
7
16
39
26
25
21
4
23
32
36
15
18
19
12
30
20
37
41
13
3

Артикул

Название

Примечание

Количество

603816R93

CUP

ASSEMBLY - feed

1шт.

Quantities shown are for one feed cup.

1шт.

1

NSS

NOT SOLD SEPARAT

CUP - feed

1шт.

2

603111R1

ROLLER

SHAFT - fluted roll

1шт.

3

603112R1

BLOCK

- shut off

1шт.

4

602106R1

SQ HOLE WASHER

- square hole, 21/32 x 1-11/64 x 1/64 inch

4шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

Quantities shown are for one feed cup.

1шт.

6

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

1шт.

Quantities shown are for one feed cup.

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Quantities shown are for one feed cup.

1шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

Quantities shown are for one feed cup.

1шт.

9

603134R1

PIN,4.76mm OD x 29.37mm L

- roll, feed cup

1шт.

Quantities shown are for one feed cup.

1шт.

10

603108R21

BOTTOM

ASSEMBLY - feed cup dump

1шт.

Quantities shown are for one feed cup.

1шт.

11

603178R1

LATCH

- dump bottom

1шт.

12

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, 3/16 x 3/8 inch

1шт.

13

432-1248

COTTER PIN,3/16" x 3"

3/16" x 3"

1шт.

Quantities shown are for one feed cup.

1шт.

14

N11720

WASHER

- square hole, 21/32 x 1-1/2 x 3/32 inch

1шт.

Quantities shown are for one feed cup.

1шт.

14

602106R1

SQ HOLE WASHER

- square hole, 21/32 x 1-11/64 x 1/64 inch

1шт.

Quantities shown are for one feed cup.

1шт.

15

603231R1

SPRING WASHER,16.67mm ID x 30.2mm OD x 0.71mm Thk

- feed cup, spring

1шт.

Quantities shown are for one feed cup.

1шт.

16

818335C1

COVER ASSY

COVER - grain feed

1шт.

Quantities shown are for one feed cup.

1шт.

17

606034R1

GUARD

WINDSHIELD - grain feed cup

1шт.

Quantities shown are for one feed cup.

1шт.

18

432-1216

COTTER PIN,3/16" x 1"

1шт.

Quantities shown are for one feed cup.

1шт.

19

817506C2

BAR

- feedshaft, left-hand, 12 x 10 inch drill

1шт.

19

817507C3

BAR

- feedshaft, right-hand, 12 x 10 inch drill

1шт.

19

817150C2

BAR

- feedshaft, left-hand, 10 x 12 inch drill

1шт.

19

817151C3

BAR

- feedshaft, right-hand, 10 x 12 inch drill

1шт.

19

817152C2

BAR

- feedshaft, left-hand, 8 x 18 and 10 x 14 inch drill

1шт.

19

817153C2

BAR

- feedshaft, right-hand, 8 x 18 and 10 x 14 inch drill

1шт.

19

817160C2

BAR

- feedshaft, left-hand, 14 x 10 inch drill

1шт.

19

817161C2

BAR

- feedshaft, right-hand, 14 x 10 inch drill

1шт.

19

818228C2

BAR

- feedshaft, left-hand, 18 x 8 inch drill

1шт.

19

818229C2

BAR

- feedshaft, right-hand, 18 x 8 inch drill

1шт.

19

817090C2

BAR

- feedshaft, left-hand, 16 x 10 inch drill

1шт.

19

817091C2

BAR

- feedshaft, right-hand, 16 x 10 inch drill

1шт.

19

818180C3

BAR

- feedshaft, left-hand, 14 x 12 inch drill

1шт.

19

818181C2

BAR

- feedshaft, right-hand, 14 x 12 inch drill

1шт.

20

816133C1

CHANNEL

- feed shaft coupler

1шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

817358C1

PANEL

- grain bottom partition, 10 x 12 inch drill

1шт.

24

817363C1

PANEL

- grain bottom partition, 12 x 10 inch drill

1шт.

24

817220C1

PANEL

- grain bottom partition, 8 x 18 and 10 x 14 inch drill

1шт.

24

817220C1

PANEL

- grain bottom partition, 8 x 18 and 10 x 14 inch drill

1шт.

24

817183C1

PANEL

- grain bottom partition, 14 x 10 inch drill

1шт.

24

818200C1

PANEL

- grain bottom partition, 18 x 8 inch drill

1шт.

24

817075C1

PANEL

- grain bottom partition, 16 x 10 inch drill

1шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

26

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

29

90987C1

BAR

- feed cup spacer, front

1шт.

Quantities shown are for one feed cup.

1шт.

30

90988C1

BAR

- feed cup spacer, rear

1шт.

Quantities shown are for one feed cup.

1шт.

31

843382C2

PLASTIC-RUBBER TUBE,32 mm OD

TUBE - grain seed (Extended length, 18-1/2 inch)

1шт.

Quantities shown are for one feed cup.

1шт.

32

1978907C2

DRIVE SPROCKET

SPROCKET - grass seed drive, 10 tooth, 18 x 8 and 16 x10 inch drill (Replaces 815324C1)

2шт.

33

28793R1

SNAP RING,1.312", Int, #131

Ring, Snap, 1.312", Int, #131

2шт.

34

815803C1

CLIP

- sprocket retaining (Used only with 815324C1)

2шт.

35

N11791

WASHER

- grass seed drive sprocket (Used only with 815324C1)

4шт.

36

1978908C2

HANGER

- sprocket, 18 x 8 and 16 x 10 inch drill (Replaces 815499C2)

2шт.

37

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

40

815804C1

CUP

- grain seed viewing, if used

1шт.

Quantities shown are for one feed cup.

1шт.

41

432-1248

COTTER PIN,3/16" x 3"

if used 3/16" x 3"

2шт.

Quantities shown are for one feed cup.

1шт.

42

603677R2

PLATE

COVER - grain feed shutoff, 8 x 18 inch drill

2шт.

Выбрано товаров: 82
