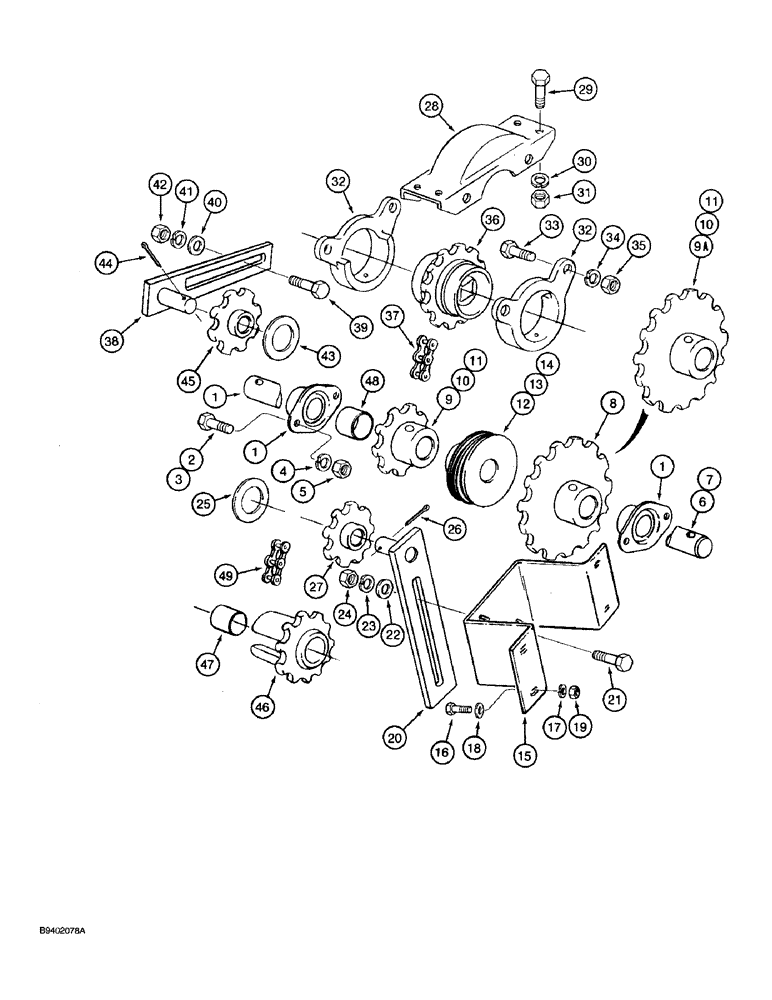

Запчасти Case IH 7100 (9-030) - GRAIN DRIVE COUNTERSHAFT (09) - CHASSIS/ATTACHMENTS

1

596943R92

BEARING ASSY,25.45mm ID

BEARING - grain drive shaft

2шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

6

817126C1

ROD

- grain drive shaft

1шт.

7

496-81008

WASHER,1.06" ID x 1.88" OD x 0.13" Thk

- flat, 1-1/16 x 1-7/8 x 9/64 inch

1шт.

8

816035C1

SPROCKET ASSY.

SPROCKET - grain countershaft driven, 14 tooth

1шт.

9

816273C1

SPROCKET ASSY.

SPROCKET - grain countershaft drive, 7 tooth (For regular speed)

1шт.

9a

816035C1

SPROCKET ASSY.

SPROCKET - grain countershaft drive, 14 tooth (For fast speed)

1шт.

10

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

PIN - headed, 3/8 x 2 inch

2шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

12

818190C1

GEAR

- worm, acreage counter

1шт.

13

439-1628

HEADED PIN,3/8" x 1 3/4"

PIN - headed, 3/8 x 1-3/4 inch

1шт.

14

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

15

817546C1

SUPPORT

- grain drive shaft chain tightener bracket

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

20

816040C2

BRACKET

- grain drive tightener

1шт.

21

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

22

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

425-106

NUT,3/8"-16, Cl 5

2шт.

25

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

26

432-1216

COTTER PIN,3/16" x 1"

2шт.

27

819457C1

SPROCKET

- chain tightener, 6 tooth

1шт.

28

817459C1

CAP

COVER - grain feedshaft drive sprocket

1шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

32

817458C1

HANGER

- grain feedshaft drive sprocket

2шт.

33

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

36

817457C1

SPROCKET

- grain feedshaft drive, 9 tooth

1шт.

37

REF

INSTRUCTION

CHAIN - grain feedshaft drive, regular speed (Use 25 links from 10 foot roll of 569089R91, 1 connecting link 587372R91, and 1 offset link 456929R91. Use an additional 2 offset links

1шт.

38

816040C2

BRACKET

1шт.

39

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

40

425-106

NUT,3/8"-16, Cl 5

2шт.

41

492-11038

LOCK WASHER,3/8"

2шт.

42

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

2шт.

43

495-81026

WASHER,21/32" x 1 1/2" x .060"

1шт.

44

432-1216

COTTER PIN,3/16" x 1"

1шт.

45

819457C1

SPROCKET

1шт.

46

817453C91

SPROCKET ASSY.

1шт.

47

298401R1

BUSHING

1шт.

48

243301R1

SPACER,1" Pipe x 11/16"

1шт.

49

569089R91

CHAIN (AG),10' L, 1.0" Pitch

Use 35 Links Form Roll Add One Link (587372R91)

1шт.
