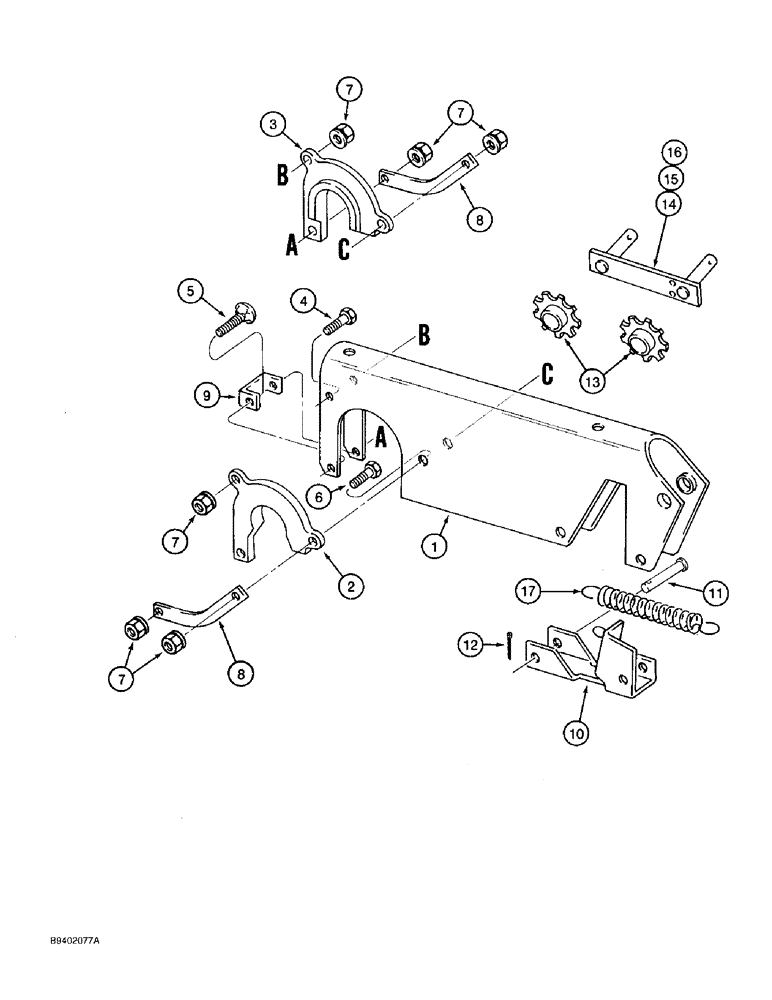

Запчасти Case IH 7100 (9-028) - MAIN DRIVE CHAIN SHIELD (09) - CHASSIS/ATTACHMENTS

1

819459C1

SHIELD

- main drive chain, 10 x 12, 12 x 10, 10 x 14, 14 x 10, 18 x 8, 14 x 12 and 16 x 10 inch drill

1шт.

1

818282C1

SHIELD

- main drive chain, 8 x 18 inch drill

1шт.

2

601225R1

SHIELD

BEARING - shield, right-hand

1шт.

3

601226R1

SHIELD

BEARING - shield, left-hand

1шт.

4

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

5

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

2шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

8

605979R1

BRACE

STRAP - bearing

2шт.

9

601241R1

CHANNEL

CLIP - shield rear tie

1шт.

10

816617C1

SUPPORT

- drive chain shield, 10 x 12, 12 x 10, 10 x 14, 14 x 10, 18 x 8, 14 x 12 and 16 x 10 inch drill

1шт.

10

818280C1

SUPPORT

- drive chain shield, 8 x 18 inch drill

1шт.

11

439-1432

HEADED PIN,1/4" x 2", G2

PIN - headed, 1/4 x 2 inch

2шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

13

819457C1

SPROCKET

- main drive idler, 6 tooth

2шт.

14

819455C1

BRACKET

- chain tightener

1шт.

15

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

16

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

6шт.

17

626206R1

SPRING

- tightener rod

1шт.
