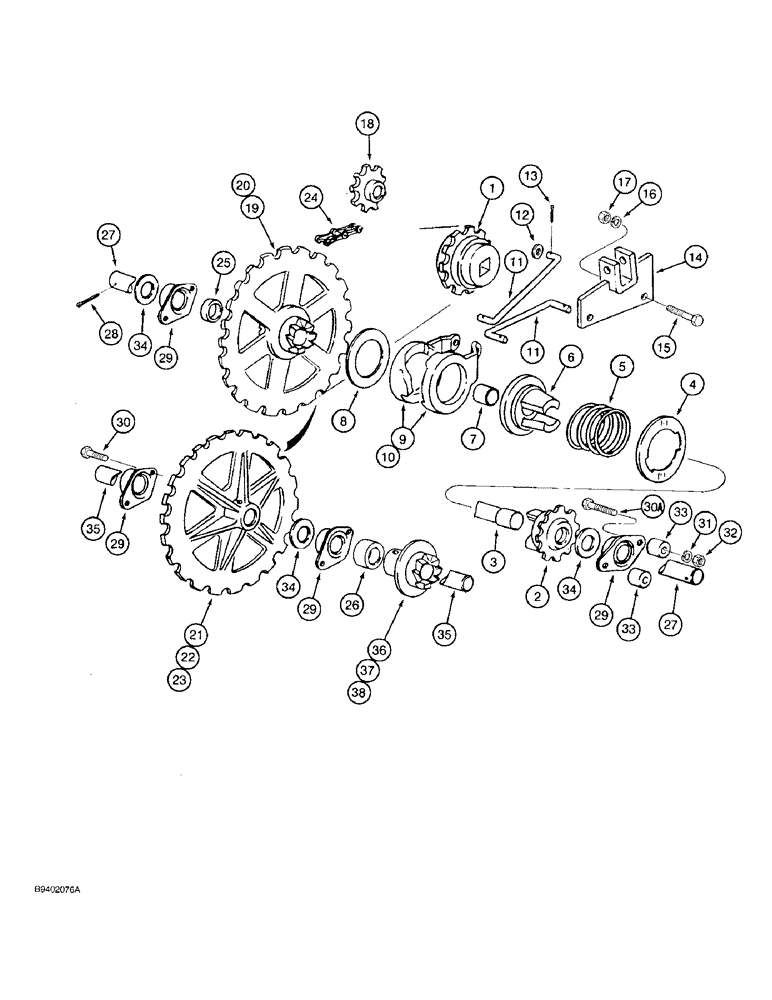

Запчасти Case IH 7100 (9-024) - DRILL MAIN DRIVE (09) - CHASSIS/ATTACHMENTS

1

603902R2

SPROCKET ASSY.

SPROCKET - main drive, 10 tooth

1шт.

2

817453C91

SPROCKET ASSY.

SPROCKET ASSEMBLY - grain drive clutch

1шт.

3

298401R1

BUSHING

- clutch sprocket

1шт.

4

817456C1

WASHER

- clutch sprocket

1шт.

5

816026C1

SPRING

- clutch

1шт.

6

817455C91

CLUTCH

ASSEMBLY - driver

1шт.

7

298401R1

BUSHING

- driver clutch

1шт.

8

816029C1

WASHER,60.45mm ID x 86.36mm OD x 1.9mm Thk

- clutch cam

1шт.

9

817594C1

CAM

- throwout

2шт.

10

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tapping, 1/8 PT x 5/8 inch

1шт.

11

817430C1

ROD

- clutch lift arm

2шт.

12

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

13

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

14

817550C1

ARM

- clutch lift

1шт.

15

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

18

819457C1

SPROCKET

- main drive idler, 6 tooth

1шт.

19

817451C1

SPROCKET ASSY.

SPROCKET - main driven, 25 tooth, 10 x 14, 14 x 10, 18 x 8, 16 x 10 and 14 x 12 inch drill

1шт.

20

438-31220

PIN,3/16" x 1 1/4", Coiled

1шт.

21

816019C1

DRIVE SPROCKET

SPROCKET - main driven, 25 tooth, 12 x 10, 10 x 12, and 8 x 18 inch drill

1шт.

22

439-1632

HEADED PIN,9.53mm OD x 50.8mm L

PIN - clevis, 3/8 x 2 inch

1шт.

23

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

24

REF

INSTRUCTION

CHAIN - main drive (Use 129 links from 10 foot roll of 569089R1, (1) 587372R91 connecting link and (2) 456929R91 offset links, 8 x 18 inch drill

1шт.

24

REF

INSTRUCTION

CHAIN - main drive (Use 133 links from 10 foot roll of 569089R1 and (1) 587372R91 connecting link, all row combinations except 8 x 18 inch drill

1шт.

25

557056R1

SPACER,1" Pipe x 1"

- clutch shaft, 10 x 14, 14 x 10, 18 x 8, 16 x 10 and 14 x 12 inch drill

1шт.

26

M74461

SPACER,26.6mm ID x 33.4mm OD x 19mm L

Clutch shaft, 10 x 12, 12 x 10 and 8 x 18 inch drill 1" Pipe x 3/4"

1шт.

27

817569C1

PIN

- clutch shaft, 10 x 12, 12 x 10 and 8 x 18 inch drill

1шт.

27

817127C1

PIN

- clutch shaft, 10 x 14, 14 x 10, 18 x 8, 16 x 10 and 14 x 12 inch drill

1шт.

28

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

28

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

29

596943R92

BEARING ASSY,25.45mm ID

BEARING - clutch extension shaft

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

30a

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

31

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

32

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

33

818458C1

SPACER

- bearing, 10 x 14, 14 x 10, 18 x 8, 16 x 10, 14 x 12 and 8 x 18 inch drill

2шт.

34

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.

35

817599C2

ROD

- clutch shaft extension, 8 x 18 inch drill

1шт.

35

817570C1

ROD

- clutch shaft extension, 10 x 12 and 12 x 10 inch drill

1шт.

36

817574C1

CLUTCH

- driver, 10 x 12, 12 x 10 and 8 x 18 inch drill

1шт.

37

28051R1

HEADED PIN,3/8" x 3 3/4"

PIN - headed, 3/8 x 3-3/4 inch

2шт.

Note - For Layout See HZG 943 11/22/95

1шт.
