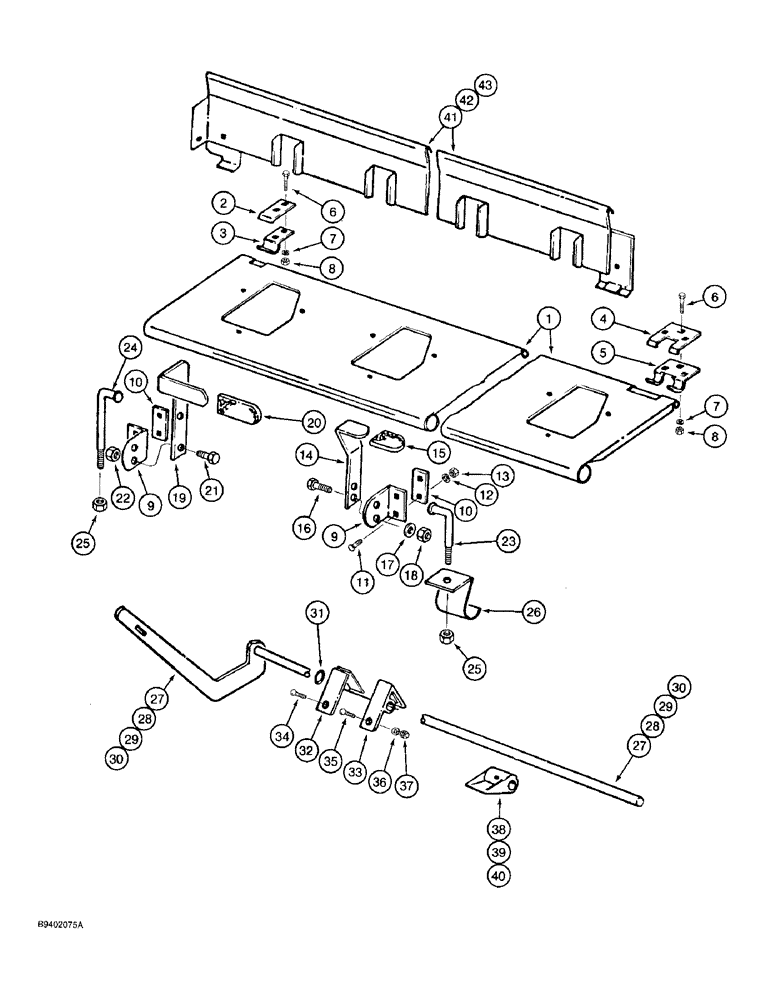

Запчасти Case IH 7100 (9-020) - FERTILIZER DROP BOTTOM (09) - CHASSIS/ATTACHMENTS

1

817366C1

BOTTOM

- fertilizer drop, 12 x 10 inch drill

1шт.

1

817361C1

BOTTOM

- fertilizer drop, 10 x 12 inch drill

1шт.

1

817319C1

BOTTOM

- fertilizer drop, left-hand, 8 x 18 and 10 x 14 inch drill

1шт.

1

817321C1

BOTTOM

- fertilizer drop, right-hand, 8 x 18 and 10 x 14 inch drill

1шт.

1

817214C1

BOTTOM

- fertilizer drop, left-hand, 14 x 10 inch drill

1шт.

1

817216C1

BOTTOM

- fertilizer drop, right-hand, 14 x 10 inch drill

1шт.

1

817323C1

BOTTOM

- fertilizer drop, left-hand, 18 x 8 inch drill

1шт.

1

817325C1

BOTTOM

- fertilizer drop, right-hand, 18 x 8 inch drill

1шт.

1

815364C2

BOTTOM

- fertilizer drop, left-hand, 16 x 10 inch drill

1шт.

1

815365C2

BOTTOM

- fertilizer drop, right-hand, 16 x 10 inch drill

1шт.

1

818168C1

BOTTOM

- fertilizer drop, left-hand, 14 x 12 inch drill

1шт.

1

818170C1

BOTTOM

- fertilizer drop, right-hand, 14 x 12 inch drill

1шт.

2

604403R2

CLAMP

STOP - drop bottom hinge, intermediate

3-6шт.

3

604404R2

CLAMP

HINGE - drop bottom, intermediate

3-6шт.

4

815373C1

STOP

- drop bottom hinge, end

2шт.

5

815374C1

HINGE

- drop bottom, end

2шт.

6

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - carriage, 1/4 NC x 1 inch

12-18шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

12-18шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

12-18шт.

9

603498R1

ANGLE

- drop bottom lever

5-8шт.

10

603587R1

BAR

- lever angle reinforcing

5-8шт.

11

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

10-16шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10-16шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10-16шт.

14

815377C1

LEVER

- drop bottom, short

4-6шт.

15

815378C1

GRIP

- short lever

4-6шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4-6шт.

17

495-81132

WASHER,0.41" ID x 0.88" OD x 0.18" Thk

4-6шт.

18

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

4-6шт.

19

603501R1

LEVER

- drop bottom, long

1-2шт.

20

815379C1

GRIP

- long lever

1-2шт.

21

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1-2шт.

22

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1-2шт.

23

603469R1

BOLT,3/8" - 16 x 3.3", Steel

- drop bottom, short

4-6шт.

24

603470R1

BOLT,3/8" - 16 x 5.1", Steel

- drop bottom, long

1-2шт.

25

425-106

NUT,3/8"-16, Cl 5

5-8шт.

26

603497R1

CATCH

- drop bottom

5-8шт.

27

817537C1

ROD

- gate, 12 x 10 and 10 x 12 inch drill

1шт.

27

REF

INSTRUCTION

ROD - gate, left-hand, 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch drill (Order 817433C1 rod and cut to 74-1/16 inch length, see below)

1шт.

27

REF

INSTRUCTION

ROD - gate, right-hand, 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch drill (Order 817537C1 rod and cut to 74-1/16 inch length, see below)

1шт.

27

REF

INSTRUCTION

ROD - gate, left-hand, 16 x 10 and 14 x 12 inch drill (Order 817433C1 rod and cut to 80-1/16 inch length, see below)

1шт.

27

REF

INSTRUCTION

ROD - gate, right-hand, 16 x 10 and 14 x 12 inch drill (Order 817537C1 rod and cut to 80-1/16 inch length, see below)

1шт.

28

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

2шт.

29

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

2шт.

30

7500032

BUSHING

NUT - wing, 5/16 inch NC

2шт.

31

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1-2шт.

32

607276R2

SUPPORT

BEARING - gate rod

7-10шт.

33

603455R1

LEVER GUIDE

BEARING - gate rod, center

1шт.

34

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, (1 used per gate rod) Short NK, 1/4"-20 x 1/2", G5, Full Thd

1шт.

35

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch, used with center bearing

1шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (1 used per carriage bolt) 1/4"

1шт.

37

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC (1 used per carriage bolt)

1шт.

38

816736C1

GATE ASSY

GATE - fertilizer feed

10-18шт.

39

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch (1 used per gate)

1шт.

40

252552C1

NUT

- weld, 1/4 inch NC (1 used per bolt)

1шт.

41

817364C1

PANEL

- back, 12 x 10 inch drill

1шт.

41

817359C1

PANEL

- back, 10 x 12 inch drill

1шт.

41

817308C1

PANEL

- back, left-hand, 8 x 18 and 10 x 14 inch drill

1шт.

41

817301C1

PANEL

- back, right-hand, 8 x 18 and 10 x 14 inch drill

1шт.

41

817110C1

PANEL

- back, left-hand, 14 x 10 inch drill

1шт.

41

817112C1

PANEL

- back, right-hand, 14 x 10 inch drill

1шт.

41

818205C1

PANEL

- back, left-hand, 18 x 8 inch drill

1шт.

41

818207C1

PANEL

- back, right-hand, 18 x 8 inch drill

1шт.

41

817105C1

PANEL

- back, left-hand, 16 x 10 inch drill

1шт.

41

817107C1

PANEL

- back, right-hand, 16 x 10 inch drill

1шт.

41

818150C1

PANEL

- back, left-hand, 14 x 12 inch drill

1шт.

41

818151C1

PANEL

- back, right-hand, 14 x 12 inch drill

1шт.

42

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

43

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

817433C1

ROD

- gate, 85-9/16 inch long

1шт.

817537C1

ROD

- gate, 114-5/8 inch long

1шт.
