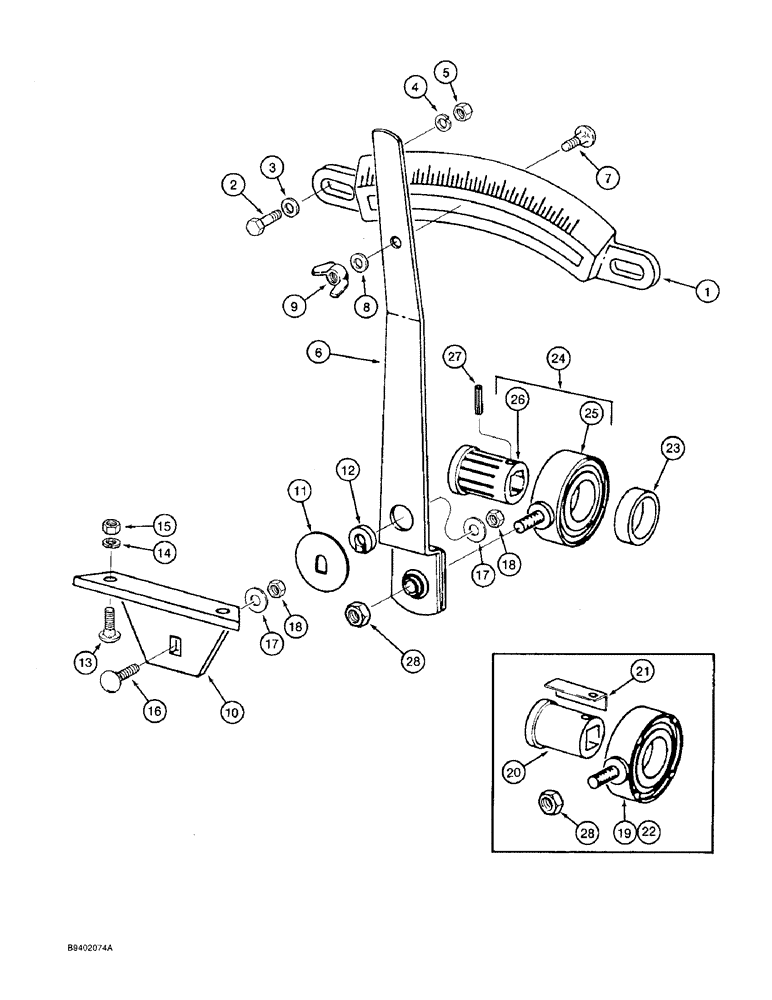

Запчасти Case IH 7100 (9-018) - GRAIN FEED INDICATOR AND SHIFTER (09) - CHASSIS/ATTACHMENTS

1

603127R1

INDICATOR

- grain feed

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

3

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

815179C1

LEVER

- grain feed shifter

1шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9

142745

NUT, WING

NUT - wing, 5/16 inch NC

1шт.

10

819361C1

BRACKET

SUPPORT - shifter lever

1шт.

11

819263C1

WASHER

- shifter lever

1шт.

12

819264C1

BUSHING

- shifter stop

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

17

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

18

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

19

609384R91

THRUST BEARING

- feed shifter (Machines built prior to 1985) (Order 1279927C91 bearing, item 22 and 609388R1 spacer, item 20)

1шт.

20

609388R1

SPACER

- shifter bearing

1шт.

21

816573C1

SHIM

- lever, 0.005 inch (Used only with 609384R91 bearing)

1шт.

22

1279927C91

BEARING ASSY

BEARING - feed shifter

1шт.

23

609389R1

SPACER

- nylon, bushing

1шт.

24

1279109C91

BEARING ASSY

ASSEMBLY - feed shifter (Machines built 1985 and after)

1шт.

25

616154R92

BEARING, ROLLER, CYL,16 mm

BEARING - feed shifter

1шт.

26

1279145C1

SPACER

- feed shifter bearing

1шт.

27

438-31220

PIN,3/16" x 1 1/4", Coiled

1шт.

28

231-4116

NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 8

1шт.
