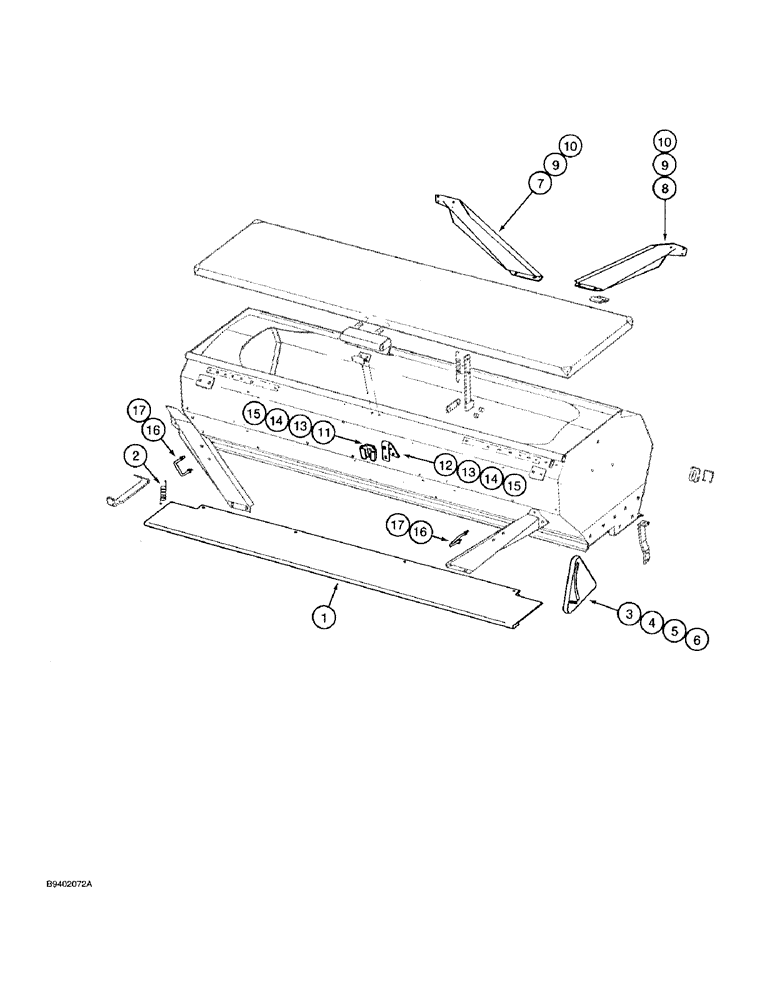

Запчасти Case IH 7100 (9-012) - FERTILIZER HOPPER COVER, FRONT BRACES AND SUPPORT (09) - CHASSIS/ATTACHMENTS

1

815841C1

COVER

- fertilizer, 10 x 12 and 12 x 10 inch

1шт.

1

815843C1

COVER

- fertilizer, 14 x 10 and 18 x 8 inch

1шт.

1

815844C1

COVER ASSY

COVER - fertilizer, 16 x 10 and 14 x 12 inch

1шт.

2

815891C1

SPRING

- fertilizer cover

4шт.

3

817440C1

INDICATOR

- fertilizer, right

1шт.

3

817439C1

INDICATOR

- fertilizer, left (Not shown)

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

817553C1

BRACE

- hopper diagonal, left, front

1шт.

8

817554C1

BRACE

- hopper diagonal, right, front

1шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

10

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

11

398976R1

BRACKET

- SMV emblem mounting

1шт.

12

819998C1

SUPPORT

- SMV emblem

1шт.

13

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

16

811627C2

U-BOLT

- footboard stop

2шт.

17

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex jam, 5/8 inch NC

8шт.
