Запчасти Case IH 7100 (9-008) - GRAIN AND FERTILIZER HOPPER (09) - CHASSIS/ATTACHMENTS

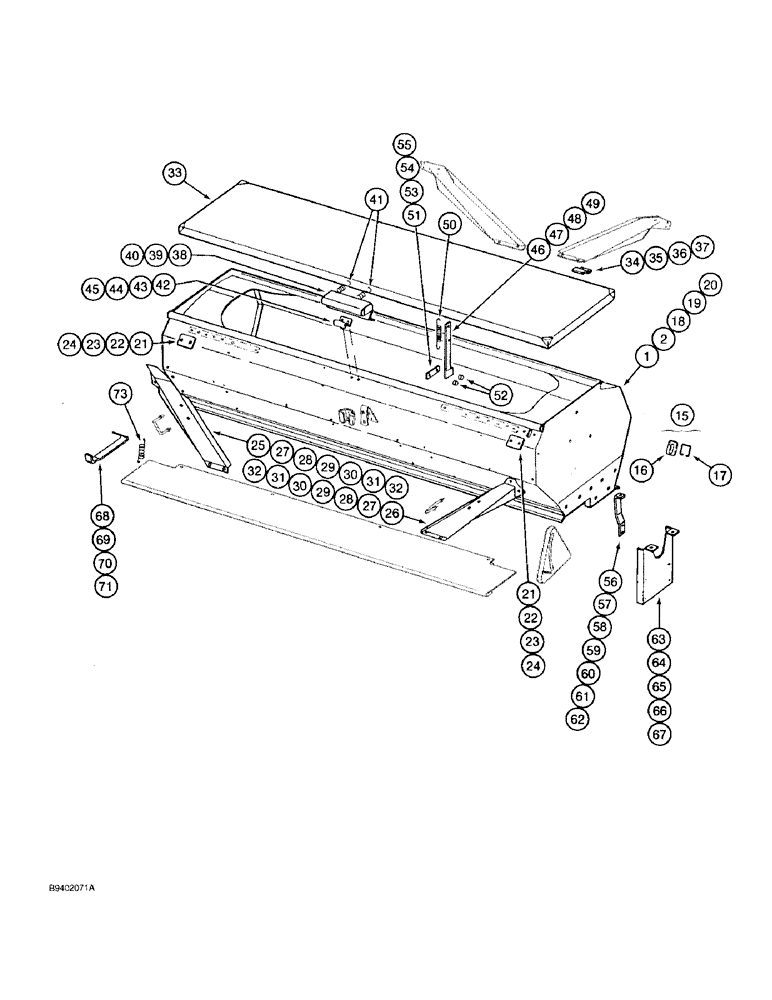

Схема запчастей Case IH 7100 - (9-008) - GRAIN AND FERTILIZER HOPPER (09) - CHASSIS/ATTACHMENTS
59
32
68
69
32
34
20
58
31
39
67
37
71
35
22
28
54
23
22
51
43
66
24
42
15
40
18
25
2
44
52
73
19
48
28
47
53
26
46
17
64
70
36
33
21
27
65
31
61
29
23
60
1
49
50
63
62
55
30
38
16
30
41
29
24
45
57
27
56
21

Артикул

Название

Примечание

Количество

1

819057C94

HOPPER

ASSEMBLY - grain and fertilizer, 9 foot 7 inch long (Used with 10 x 12 and 12 x 10 inch drills)

1шт.

1

819059C93

HOPPER

ASSEMBLY - grain and fertilizer, 12 foot 4 inch long (Used with 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch drills)

1шт.

1

819061C93

HOPPER

ASSEMBLY - grain and fertilizer, 13 foot 4 inch long (Used with 14 x 12 and 16 x 10 inch drills)

1шт.

2

1254170C1

DECAL

- Caution

1шт.

3

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

4

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

8

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

9

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

12

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

Used as required for hopper hole fillers (Not shown).

1шт.

15

1986166C1

GLASS

WINDOW ASSEMBLY - seed vision

2шт.

16

NSS

NOT SOLD SEPARAT

WINDOW - seed vision

1шт.

17

NSS

NOT SOLD SEPARAT

STRIP - adhesive

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

14шт.

20

231-5146

FLANGE NUT,3/8"-16

14шт.

21

815115C1

PLATE

COVER - fertilizer indicator access hole

1шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

25

817289C1

BRACE

- hopper, diagonal, rear, left

1шт.

26

817290C1

BRACE

- hopper, diagonal, rear, right

1шт.

27

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

28

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

29

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

30

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

33

815157C2

COVER

- 9 foot 7 inch long hopper (Used with 10 x 12 and 12 x 10 inch drills)

1шт.

33

815161C1

COVER

- 12 foot 4 inch long hopper (Used with 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch drills)

1шт.

33

815163C1

COVER ASSY

COVER - 13 foot 4 inch long hopper (Used with 14 x 12 and 16 x 10 inch drills)

1шт.

34

815173C1

HINGE

- cover

5-7шт.

35

473-12510

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- machine, flat head slotted, 1/4 NC x 5/8 inch

10-14шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10-14шт.

37

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

10-14шт.

38

815174C1

LATCH

- hopper cover

1шт.

39

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

40

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

41

N32176

SPRING

- cover latch

2шт.

42

815175C1

CLIP

- latch

1шт.

43

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

44

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

45

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

46

815176C1

ARM

- cover hold open

2шт.

47

427-5071

CLEVIS PIN,7.92mm OD x 18.26mm L

2шт.

48

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

6шт.

49

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

50

398304R1

SPRING

- cover return

2шт.

51

815178C1

SPACER

SUPPORT - arm retaining

2шт.

52

594536R1

BUSHING

- retainer bar

4шт.

53

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

54

492-11038

LOCK WASHER,3/8"

4шт.

55

425-106

NUT,3/8"-16, Cl 5

4шт.

56

817438C1

SUPPORT

- hopper (All drills except 10 x 12 and 12 x 10 inch)

2-4шт.

57

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4-8шт.

58

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4-8шт.

59

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4-8шт.

60

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2-4шт.

61

492-11038

LOCK WASHER,3/8"

2-4шт.

62

425-106

NUT,3/8"-16, Cl 5

4шт.

63

817156C1

SUPPORT

- hopper, 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch

1шт.

64

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

65

492-11038

LOCK WASHER,3/8"

12шт.

66

425-106

NUT,3/8"-16, Cl 5

6шт.

67

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

4шт.

68

603538R1

BRACKET

BRACE - hopper center (All drills except 10 x 12 and 12 x 10)

1шт.

69

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

2шт.

70

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

71

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

Выбрано товаров: 87
