Запчасти Case IH 7100 (9-006) - FOOTBOARD AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

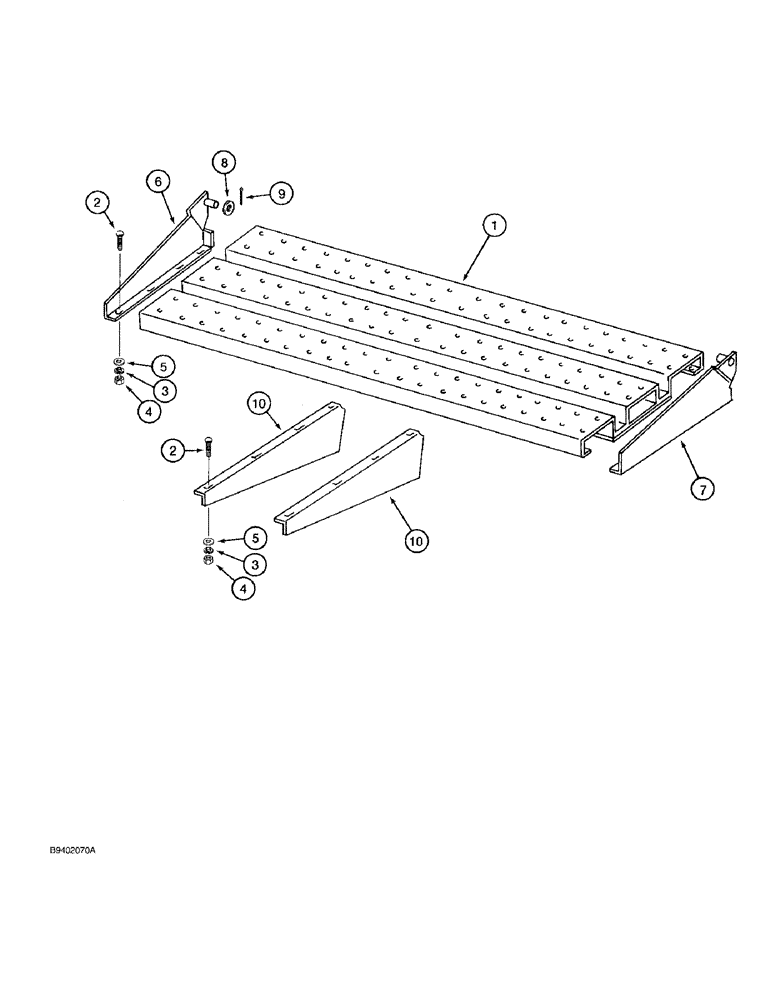

Схема запчастей Case IH 7100 - (9-006) - FOOTBOARD AND SUPPORTS (09) - CHASSIS/ATTACHMENTS
10
4
5
4
8
2
10
6
9
7
3
3
2
5
1

Артикул

Название

Примечание

Количество

1

817548C1

ASSEMBLY

FOOTBOARD - drill, 9 foot 7 inch long (10 x 12 and 12 x 10 inch)

1шт.

1

817513C1

ASSEMBLY

FOOTBOARD - drill, 12 foot 4 inch long (8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch)

1шт.

1

817475C1

ASSEMBLY

FOOTBOARD - drill, 13 foot 4 inch long (14 x 12 and 16 x 10 inch)

1шт.

2

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

16шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

16шт.

5

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch (Use at slotted holes)

6шт.

6

817541C1

SUPPORT

- footboard, outer, left

1шт.

7

817542C1

SUPPORT

- footboard, outer, right

1шт.

8

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

9

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

817386C1

SUPPORT

- footboard, center

2шт.

Выбрано товаров: 12
