Запчасти Case IH 7100 (9-002) - FRAME AND ROCKSHAFT MOUNTING (09) - CHASSIS/ATTACHMENTS

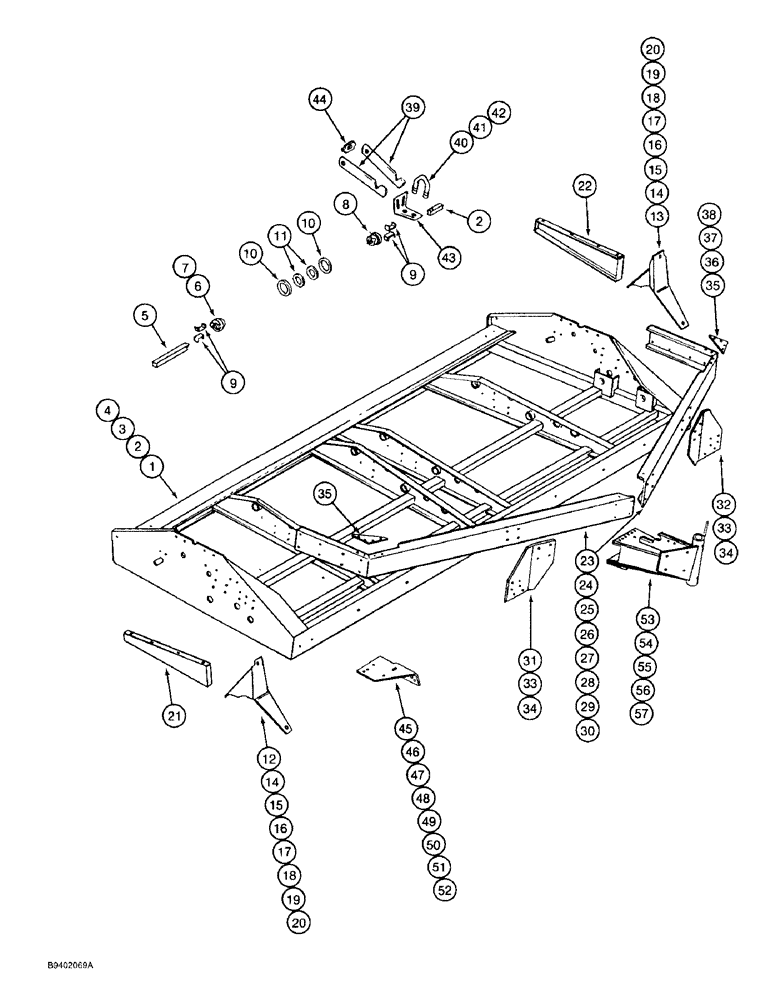

Схема запчастей Case IH 7100 - (9-002) - FRAME AND ROCKSHAFT MOUNTING (09) - CHASSIS/ATTACHMENTS
11
19
29
7
16
8
1
33
9
45
47
36
12
4
30
43
34
15
21
2
31
10
51
20
56
42
35
20
9
39
17
49
57
41
28
17
19
14
26
35
24
32
18
34
6
48
53
13
37
38
54
46
52
10
40
44
2
14
50
15
33
23
16
22
55
3
27
25
18
5

Артикул

Название

Примечание

Количество

1

818236C93

FRAME

- main, 10 x 12 and 12 x 10 inch

1шт.

1

818237C94

FRAME

- main, 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch

1шт.

1

818238C93

FRAME

- main, 14 x 12 and 16 x 10 inch

1шт.

2

1254170C1

DECAL

- caution

1шт.

3

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

2шт.

4

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

817581C1

BAR - rockshaft, 57-1/2 inch long, 10 x 12 and 12 x 10 inch (Cut from 603919R1, see below)

4шт.

5a

815969C1

BAR - rockshaft, 73-7/8 inch long, 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch (Cut from 603164R1, see below)

4шт.

5b

817095C1

BAR

- rockshaft, 79-7/8 inch long, 14 x 12 and 16 x 10 inch (Cut from 603164R1, see below)

4шт.

6

603114R1

TRUNNION

- rockshaft end

4шт.

7

485-14414

SET SCREW,Sq Hd, 7/16"-14 x 7/8"

SCREW - set, square head, 7/16 NC x 7/8 inch, cup point

4шт.

8

815086C1

TRUNNION

- rockshaft intermediate

4-8шт.

9

603196R1

CHANNEL

- trunnion retaining

16-24шт.

10

495-81242

WASHER,1 27/32" x 2 1/2" x .060"

- flat, 1-27/32 x 2-3/4 x 1/16 inch

8-12шт.

11

495-81216

WASHER,1.41" ID x 2.25" OD x 0.04" Thk

- flat, 1-13/32 x 2-1/4 x 3/8 inch

1шт.

12

818382C1

FILLER

- front, right

1шт.

13

818381C1

FILLER

- front, left

1шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

2шт.

21

818227C1

FILLER

- footboard end, right (Not used with multiple hitch)

1шт.

22

818226C1

FILLER

- footboard end, left (Not used with multiple hitch)

1шт.

23

817588C1

CHANNEL

- frame, diagonal, 10 x 12 and 12 x 10 inch

2шт.

23

817100C1

CHANNEL

- frame, diagonal, 8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch

2шт.

23

817012C1

CHANNEL

- frame, diagonal, 14 x 12 and 16 x 10 inch

2шт.

24

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

12-16шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12-16шт.

26

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12-16шт.

26a

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

27

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

8шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

30

425-1010

NUT,5/8"-11, G5

8шт.

603919R1

BAR

- rockshaft, 71-1/2 inch long

1шт.

603164R1

ROCKSHAFT

BAR - rockshaft, 94-5/16 inch long

1шт.

31

817583C1

SUPPORT

- front and diagonal channel, right (10 x 12 and 12 x 10 inch)

1шт.

31

818111C1

SUPPORT

- front and diagonal channel, right (8 x 18, 10 x 14, 14 x 10, 18 x 8, 14 x 12 and 16 x 10 inch)

1шт.

32

817582C1

SUPPORT

- front and diagonal channel, left (10 x 12 and 12 x 10 inch)

1шт.

32

818110C1

SUPPORT

- front and diagonal channel, left (8 x 18, 10 x 14, 14 x 10, 18 x 8, 14 x 12 and 16 x 10 inch)

1шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

34

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, self locking, 1/2 inch NC

4шт.

35

818299C1

SUPPORT

- diagonal corner

4шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

16шт.

37

492-11038

LOCK WASHER,3/8"

16шт.

38

425-106

NUT,3/8"-16, Cl 5

16шт.

39

817179C1

BAR

- rockshaft lift arm (2 used on each furrow opener)

1шт.

40

817140C1

BOLT,U, 1/2" - 13 x 76mm

U-BOLT - lift arm bar (1 used on each furrow opener)

1шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

43

605365R1

CLAMP

- lift arm U-bolt (1 used on each furrow opener)

1шт.

44

NA2540

TRUNNION

- lift arm (1 used on each furrow opener)

1шт.

45

817684C1

GUSSET

- frame, right-hand (8 x 18, 10 x 14, 14 x 10 and 18 x 8 inch)

1шт.

46

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

47

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 x 1-1/2 inch NC

1шт.

48

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

1шт.

49

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1шт.

50

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

51

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

52

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

53

818209C1

SUPPORT

- caster axle, units built prior to November 1980 (10 x 12 and 12 x 10 inch)

1шт.

53

817038C1

SUPPORT

- caster axle, units built prior to November 1980 (8 x 18, 10 x 14, 14 x 10, 18 x 8, 14 x 12 and 16 x 10 inch)

1шт.

53

843248C1

SUPPORT

- caster axle, units built November 1980 and after (8 x 18, 10 x 14, 14 x 10, 18 x 8, 14 x 12 and 16 x 10 inch)

1шт.

54

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap, 1/8 PT x 5/8 inch

2шт.

55

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.
