Запчасти Case IH 7100 (8-68) - TRANSPORT WHEEL LIFT CYLINDER, 1980251C1, 4-1/2 INCH ID X 8 STROKE, IOWA INDUSTRIAL (08) - HYDRAULICS

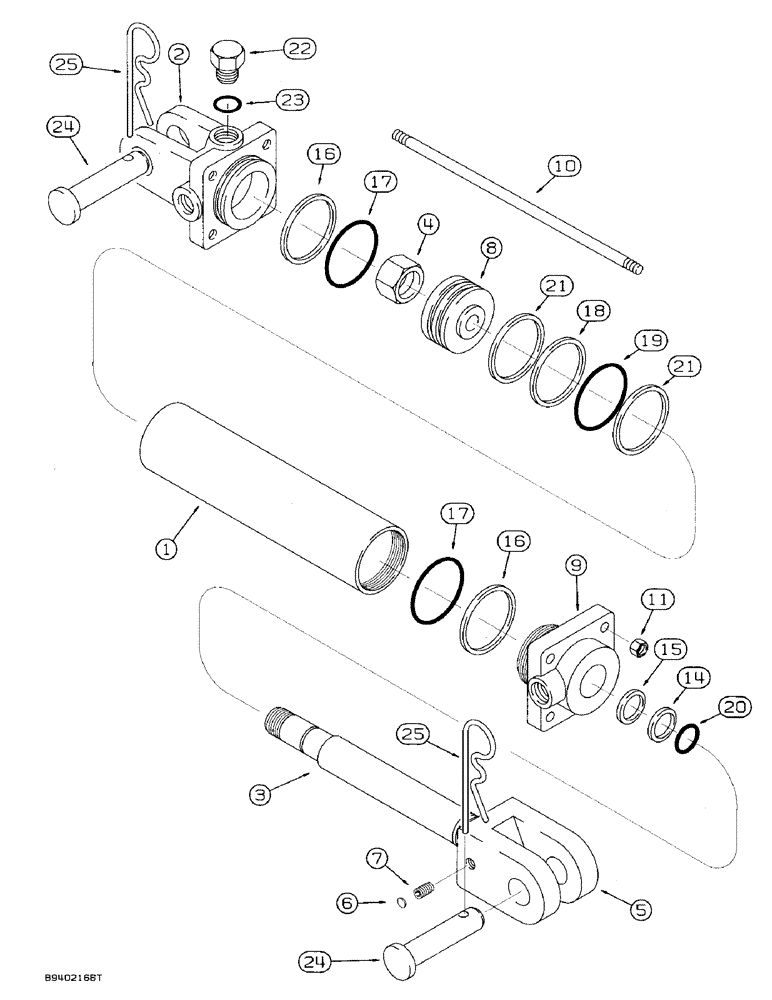

Схема запчастей Case IH 7100 - (8-68) - TRANSPORT WHEEL LIFT CYLINDER, 1980251C1, 4-1/2 INCH ID X 8 STROKE, IOWA INDUSTRIAL (08) - HYDRAULICS
6
19
21
17
23
24
15
3
24
21
18
4
5
7
9
1
16
10
20
2
8
25
16
11
17
25
22
14

Артикул

Название

Примечание

Количество

1980251C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4-1/2 inch (114 mm) ID x 8 inch (203 mm) stroke, transport lift

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1954155C1

JACK HEAD

CAP - end, cylinder

1шт.

3

1980308C1

ROD

- piston, 2 inch OD

1шт.

4

25878R1

LOCK NUT,1"-14, GC

NUT - hex, self-locking, piston to rod

1шт.

5

1267057C1

CLEVIS,3/8" - 16

- piston rod

1шт.

6

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - clevis, nylon

1шт.

7

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, hex socket headless, 3/8 NC x 1/2 inch

1шт.

8

1954189C1

JACK PISTON

PISTON - cylinder

1шт.

9

1954158C1

HEAD

GLAND - cylinder

1шт.

10

1286385C1

TIE-ROD,3/4" - 10 x 13.81"

BOLT - cylinder tie

4шт.

11

425-1012

NUT,3/4"-10, G5

4шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

16

NSS

NOT SOLD SEPARAT

RING - backup, end cap and gland O-ring

2шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - end cap and gland

2шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - piston, large

1шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - piston, small

1шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

21

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

22

218-775

PLUG,3/4"-16, 37 Degree

- hex, 3/4-16 inch flare

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of Seal Repair Kit, P/N 1954188C1

1шт.

24

1266753C1

PIN,25.4mm OD x 96.83mm L

- clevis, cylinder mounting

2шт.

25

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter

4шт.

1954188C1

SEAL KIT

- seal repair, Includes: ref. nos. 14, 15, 16, 17, 18, 19, 20, 21, and 23

1шт.

Выбрано товаров: 34
