Запчасти Case IH 7100 (8-60) - LIFT CYLINDER, 843125C91, 2-1/2 ID X 8 INCH STROKE, RAM (08) - HYDRAULICS

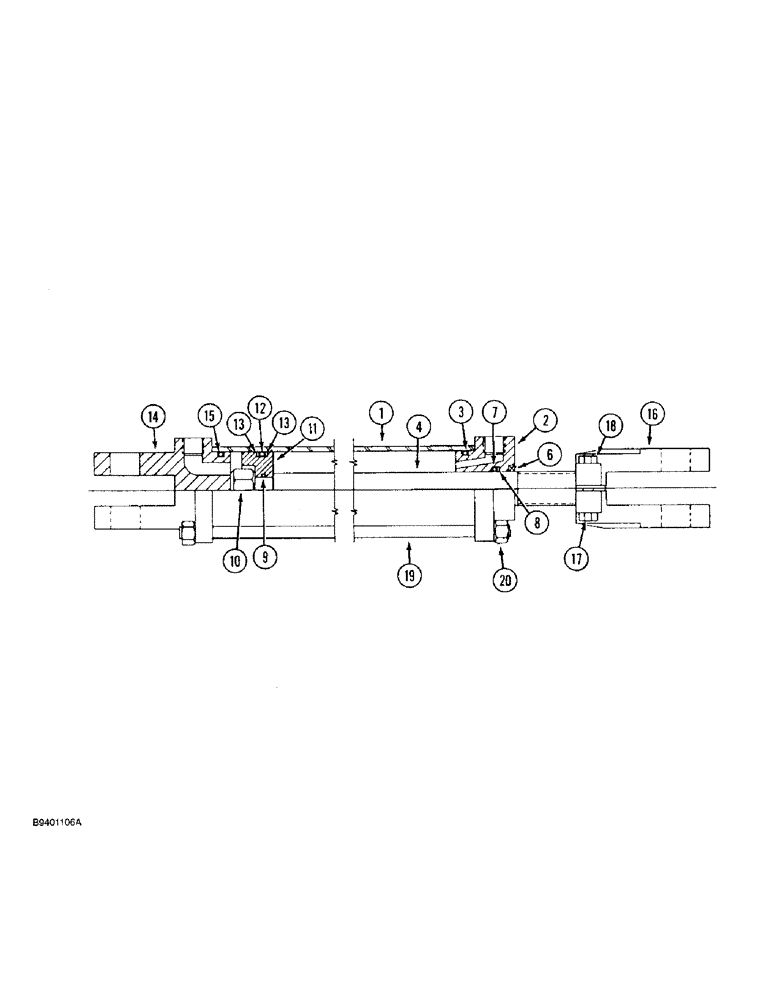

Схема запчастей Case IH 7100 - (8-60) - LIFT CYLINDER, 843125C91, 2-1/2 ID X 8 INCH STROKE, RAM (08) - HYDRAULICS
19
3
18
6
11
10
12
16
13
15
1
17
2
4
8
9
14
7
20
13

Артикул

Название

Примечание

Количество

843125C91

CYLINDER

ASSEMBLY - 2-1/2 ID x 8 inch stroke (No longer available, order 1272402C91 cylinder assembly, page 8-57)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

843213C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, 2-1/8 ID x 2-1/2 inch OD

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

4

843215C1

SHAFT

ROD - piston

1шт.

193-61

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, (Not shown) Int Tooth, 3/4"

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston rod, 1-1/8 ID x 1-3/8 inch OD

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

8

NSS

NOT SOLD SEPARAT

RING - backup, piston rod O-ring

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - piston rod, nut end, 3/4 ID x 1 inch OD

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

10

425-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF

1шт.

11

843214C1

PISTON

- cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/8 ID x 2-1/2 inch OD

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, piston O-ring

2шт.

Part of Seal Kit, P/N 843219C1

1шт.

14

843211C1

CLEVIS

HEAD - cylinder, closed end

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - head, closed end 2-1/8 ID x 2-1/2 inch OD

1шт.

Part of Seal Kit, P/N 843219C1

1шт.

16

843212C1

CLEVIS

- rod end

1шт.

17

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

19

843218C1

ROD

- tie, cylinder, 7/16 inch NC

4шт.

20

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

8шт.

843219C1

KIT

- seal, Includes: ref. nos. 3, 6, 7, 8, 9, 12, 13, and 15

1шт.
