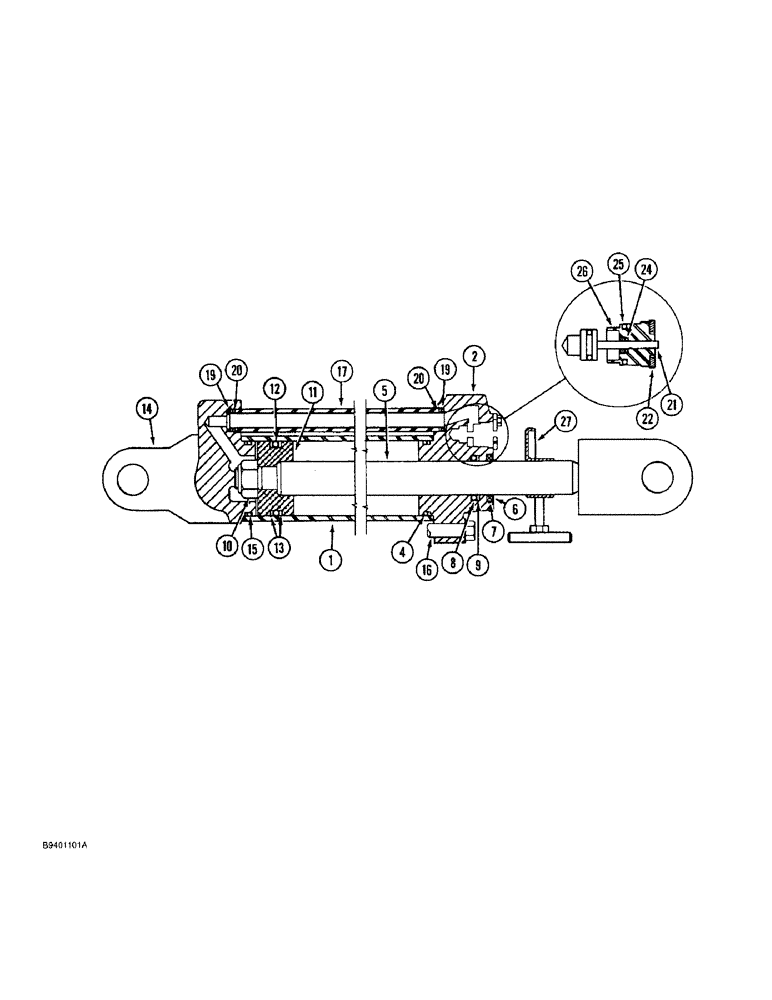

Запчасти Case IH 7100 (8-50) - LIFT CYLINDER, 371291R97, 2-1/2 ID X 8 INCH STROKE, I0WA INDUSTRIAL (08) - HYDRAULICS

371291R97

CYLINDER

ASSEMBLY - 2-1/2 ID x 8 inch stroke (No longer available, order 145353C91 cylinder assembly, page 8-53)

1шт.

1

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

- cylinder

1шт.

2

60794C91

HEAD

GLAND - cylinder

1шт.

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT (Not shown)

1шт.

4

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

Gland -228, 90 Duro, 2.234" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

5

60784C91

ROD

- piston (Replaces 361005R13 piston rod by also ordering 28543R1 clevis pin and 520175R1 hair pin)

1шт.

6

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

7

354049R1

RETAINER

- wiper

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

8

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING - 1-7/64 ID x 1-33/64 inch OD, piston rod

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

9

383669R1

BACK-UP RING

RING - backup, piston rod O-ring

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

10

131-1251

LOCK NUT,3/4"-16, GC

NUT, LOCK, 3/4"-16, GC

1шт.

11

361000R1

HEAD

PISTON - cylinder

1шт.

12

21255R1

O-RING,2.1" ID x 2.52" OD x 0.21"

- 2-1/8 ID x 2-1/2 inch OD, piston

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

13

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

RING - backup, piston O-ring

2шт.

Part of Seal Kit, P/N 363137R94

1шт.

14

60791C1

HEAD

- cylinder, closed end (Replaces 360999R3 head by also ordering 28543R1 clevis pin and 520175R1 hair pin)

1шт.

15

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

Cylinder head -228, 90 Duro, 2.234" ID x .139" Thk

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

16

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

- tie, hex, 7/16 NC x 12-1/8 inch

4шт.

17

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

- return (Replaces 354834R2)

1шт.

18

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Not shown 3/8"

1шт.

19

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

Return tube -113, 90 Duro, .549" ID x .103" Thk

2шт.

Part of Seal Kit, P/N 363137R94

1шт.

20

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

RING - backup, return tube O-ring

2шт.

Part of Seal Kit, P/N 363137R94

1шт.

21

361006R12

VALVE

- stop limiting

1:шт.

22

361009R1

PLATE

- retaining, stop limiting valve

1шт.

180017

- hex, 1/4 NC x 9/16 inch (Not shown)

2шт.

24

21590R1

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

- valve stem, 3/16 ID x 5/16 inch OD

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

25

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Valve cartridge -114, 70 Duro, .612" ID x .103" Thk

1шт.

Part of Seal Kit, P/N 363137R94

1шт.

26

361007R11

RETAINER

- stop limiting valve

1шт.

27

375426R91

COLLAR

- stroke limiting

1шт.

543261R1

SCREW

- thumb, valve trip (Not shown)

1шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, cylinder, 1 x 3-1/4 inch (Replaces 352231R11, 27267R1 and 61571C1 pins, not shown)

2шт.

520175R1

CLIP

PIN - hair, 3/16 inch diameter (Replaces 352369R2 pin, 103373 pin, 354837R1 washer and 352370R1 spring, not shown)

2шт.

363137R94

PACKAGE

KIT - seal, Includes: ref. nos. 4, 6, 7, 8, 9, 12, 13, 15, 19, 20, 24, and 25

1шт.
