Запчасти Case IH 7100 (8-48) - MARKER LIFT CYLINDER , 1345980C1, 2 ID X 8 INCH STROKE, IOWA INDUSTRIAL (08) - HYDRAULICS

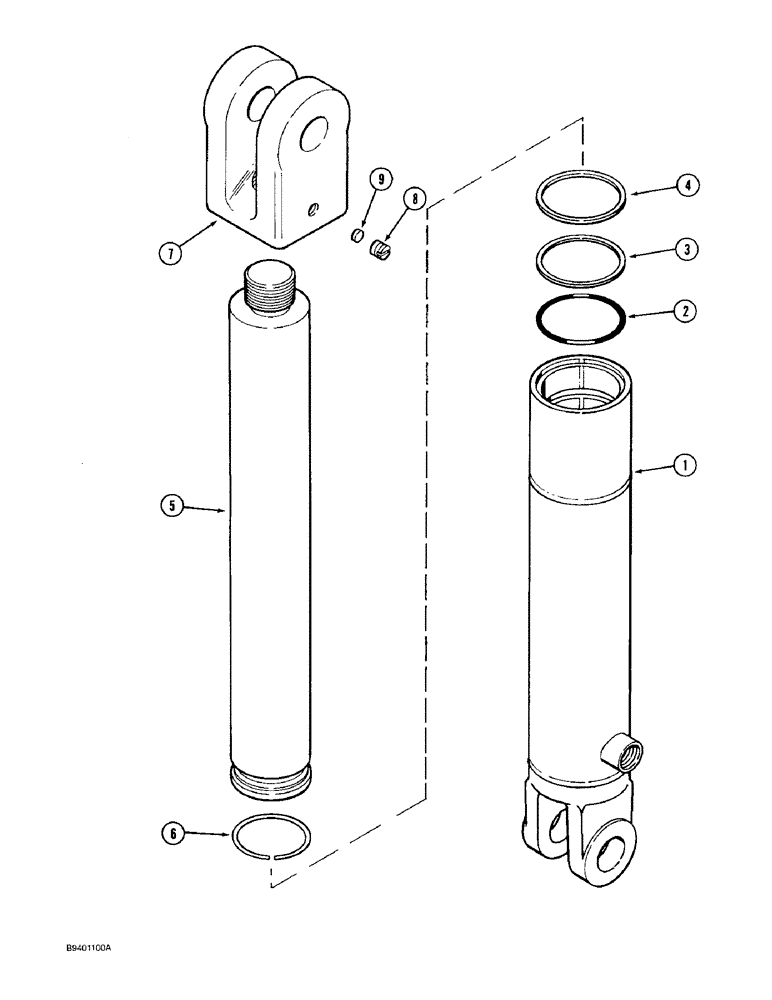

Схема запчастей Case IH 7100 - (8-48) - MARKER LIFT CYLINDER , 1345980C1, 2 ID X 8 INCH STROKE, IOWA INDUSTRIAL (08) - HYDRAULICS
3
1
2
7
5
8
9
4
6

Артикул

Название

Примечание

Количество

1345980C1

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke (Alternative to 145622C91 cylinder assembly, page 8-47)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

238-6329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

- 2 ID x 2-3/8 inch OD, piston rod

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

3

387399R2

RING

RING - backup, piston rod O-ring

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

4

59741C1

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

5

1343689C1

PISTON ROD

ROD - cylinder

1шт.

6

145628C1

RING

- retaining, piston rod

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

7

145233C1

CLEVIS,1/4" - 12

- cylinder rod

1шт.

8

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, headless slotted, 3/8 NC x 3/8 inch

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - rod clevis

1шт.

145682C1

SEALING RING

KIT - seal, Includes: ref. nos. 2, 3, 4, and 6

1шт.

Выбрано товаров: 15
