Запчасти Case IH 7100 (8-46) - MARKER LIFT CYLINDER, 145622C91, 2 ID X 8 INCH STROKE, IOWA INDUSTRIAL (08) - HYDRAULICS

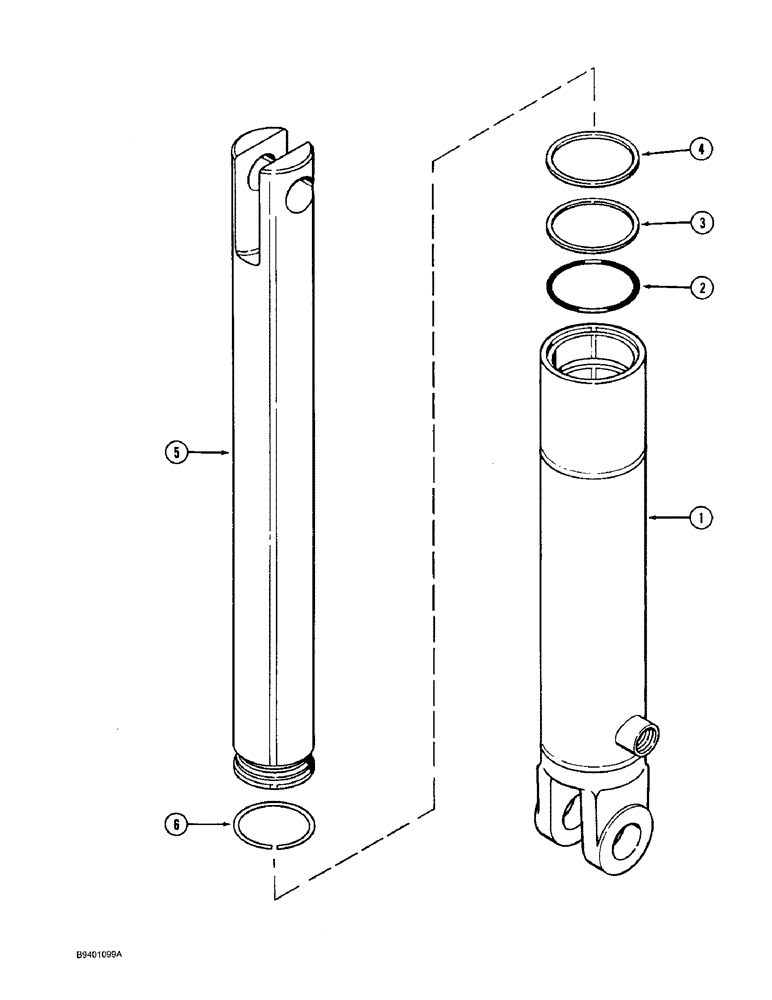

Схема запчастей Case IH 7100 - (8-46) - MARKER LIFT CYLINDER, 145622C91, 2 ID X 8 INCH STROKE, IOWA INDUSTRIAL (08) - HYDRAULICS
3
2
1
4
6
5

Артикул

Название

Примечание

Количество

145622C91

CYLINDER ASSY.,Double Acting, 50.8mm Rod, 204.7mm Stroke

CYLINDER ASSEMBLY - 2 ID x 8 inch stroke, 9/16-18 inch port (Alternative to 1345980C1 cylinder assembly, page 8-49)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

149611C1

PISTON ROD

ROD - piston

1шт.

3

59741C1

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

4

238-6329

O-RING,0.21" Thk x 1.975" ID, -329, Cl 6, 90 Duro

- 2 ID x 2-3/8 inch OD, piston rod

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

5

387399R2

RING

RING - backup, piston rod O-ring

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

6

145628C1

RING

- retaining, piston rod

1шт.

Part of Seal Kit, P/N 145682C1

1шт.

145682C1

SEALING RING

KIT - seal, Includes: ref. nos. 3, 4, 5, and 6

1шт.

Выбрано товаров: 12
