Запчасти Case IH 7100 (8-44) - STROKE CONTROL COLLAR AND HYDRAULIC CYLINDER STOP, STROKE CONTROL COLLAR (08) - HYDRAULICS

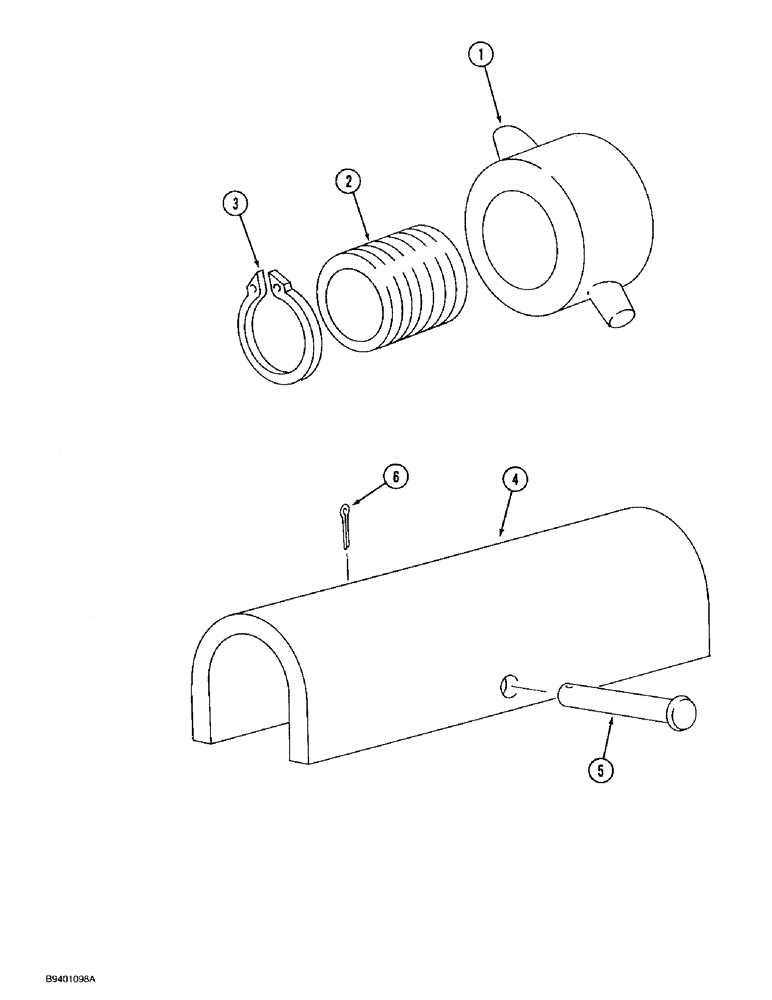

Схема запчастей Case IH 7100 - (8-44) - STROKE CONTROL COLLAR AND HYDRAULIC CYLINDER STOP, STROKE CONTROL COLLAR (08) - HYDRAULICS
5
1
3
4
2
6

Артикул

Название

Примечание

Количество

844098C91

COLLAR

ASSEMBLY - stroke control (Use with 844025C92 cylinder assembly, see page 8-55)

1шт.

1

NSS

NOT SOLD SEPARAT

COLLAR - stroke control (Order 844098C91 collar assembly)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - stroke control collar (Order 844098C91 collar assembly)

1шт.

3

844041C1

RETAINER

- stroke control sleeve

1шт.

4

1268367C2

STOP

- cylinder assembly (Use with 1272145C91 cylinder assembly, see page 8-59) , hydraulic stop

1шт.

5

479749R1

HEADED PIN,1/4" x 3 3/8"

PIN - headed, 1/4 x 3-3/8 inch , hydraulic cylinder stop

1шт.

6

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable , hydraulic cylinder stop

1шт.

Выбрано товаров: 7
