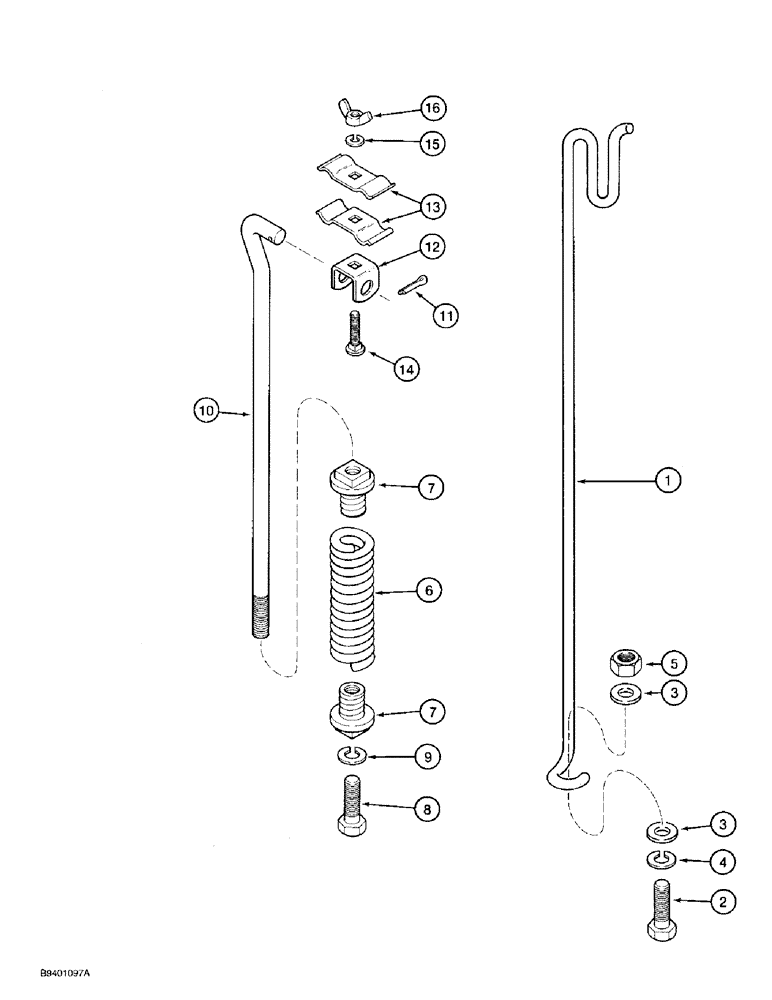

Запчасти Case IH 7100 (8-42) - HYDRAULIC HOSE SUPPORT (08) - HYDRAULICS

1

651793R2

SUPPORT

ROD - hose support (Replaces items 6, 7, 10, 12, and 13)

1шт.

2

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

3

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

425-1010

NUT,5/8"-11, G5

1шт.

6

515031R11

SPRING

- hose support, if used

1шт.

7

SA1378A

PLUG

- spring

2шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

515028R1

ROD

- hydraulic hose support

1шт.

11

432-1216

COTTER PIN,3/16" x 1"

1шт.

12

515029R1

BRACKET

- hose clamp

1шт.

13

515030R1

CLAMP

- hose

2шт.

14

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - carriage, 3/8 NC x 1-3/4 inch

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

1шт.
