Запчасти Case IH 7100 (8-40) - DISK MARKER HYDRAULIC SYSTEM, HYDRAULIC SELECTOR, LEFT MARKER ONLY (08) - HYDRAULICS

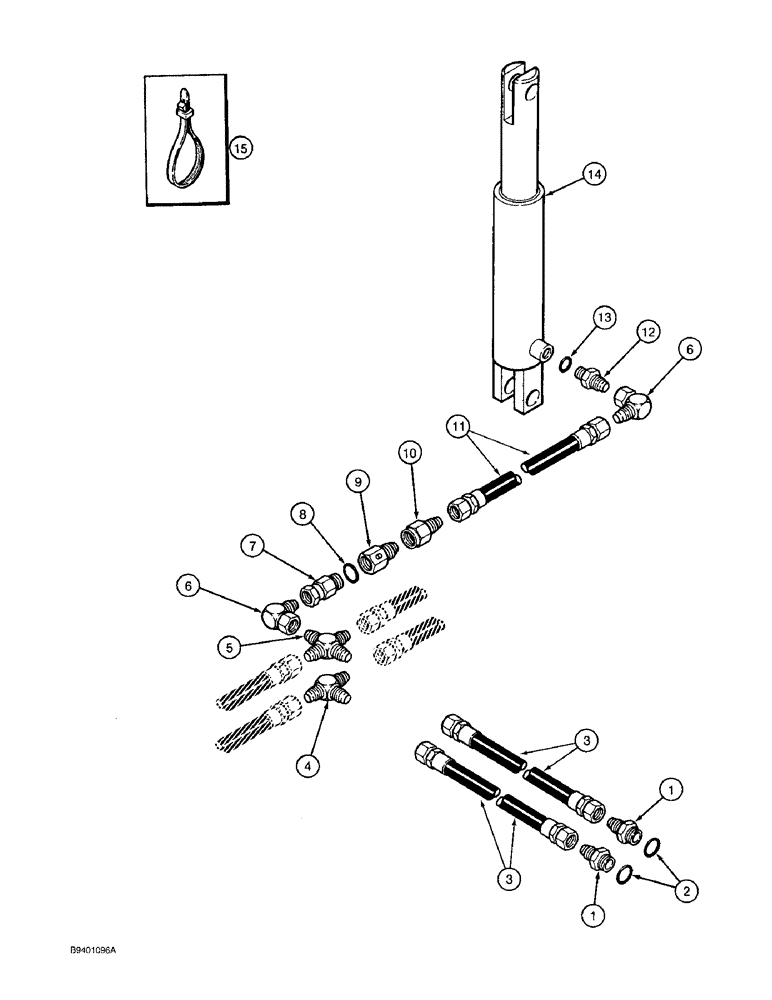

Схема запчастей Case IH 7100 - (8-40) - DISK MARKER HYDRAULIC SYSTEM, HYDRAULIC SELECTOR, LEFT MARKER ONLY (08) - HYDRAULICS
12
1
10
7
3
8
2
14
3
6
5
13
9
4
6
1
15
11

Артикул

Название

Примечание

Количество

1

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

819992C1

HOSE

- hydraulic, 3/8 x 128 inch

2шт.

4

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

1шт.

5

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 inch flare

1шт.

6

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x female swivel

2шт.

7

1263944C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 JIC

ADAPTER - straight, special

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

1279860C91

RESTRICTOR

VALVE - restrictor

1шт.

10

1284308C1

REDUCER

- tube

1шт.

11

1279597C1

HOSE

- hydraulic, 3/8 x 210 inch

1шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4-16 inch flare x 9/16 inch flare

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - IA Ind., 2 rod dia x 8 inch, 9/16-18 inch single port (See page 8-47 or 8-49 for correct cylinder)

1шт.

15

813579C1

CABLE TIE

STRAP - tie, nylon

4шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 15
