Запчасти Case IH 7100 (8-38) - DISK MARKER HYDRAULIC SYSTEM, HYDRAULIC SELECTOR, LEFT AND RIGHT MARKERS (08) - HYDRAULICS

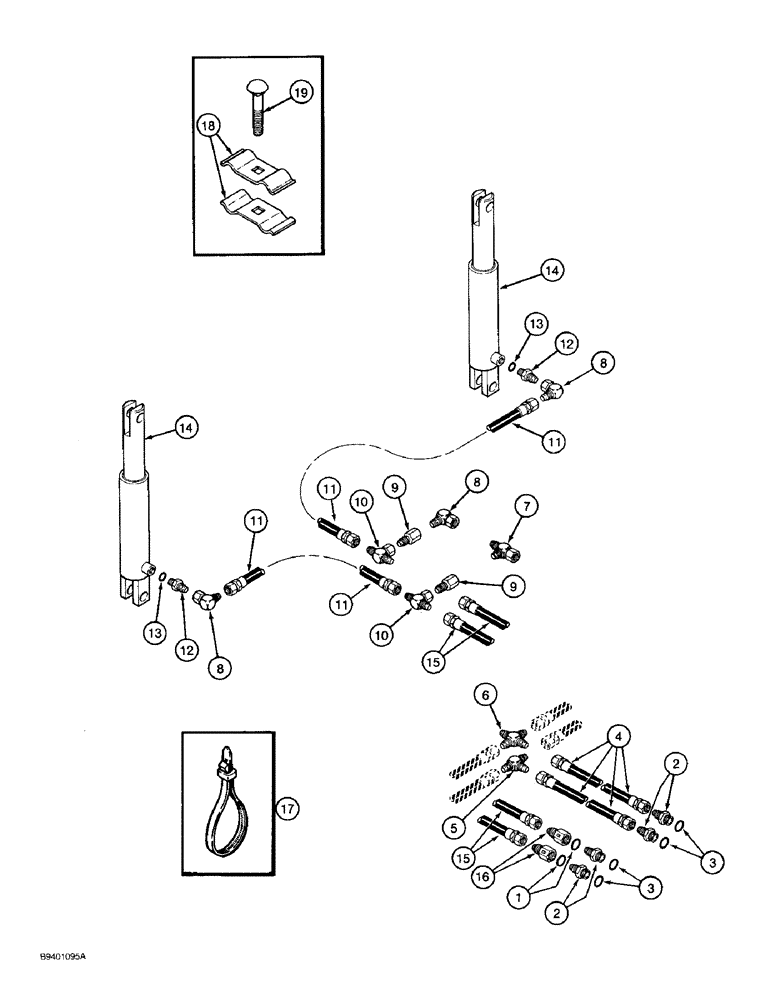

Схема запчастей Case IH 7100 - (8-38) - DISK MARKER HYDRAULIC SYSTEM, HYDRAULIC SELECTOR, LEFT AND RIGHT MARKERS (08) - HYDRAULICS
12
14
13
7
11
19
3
17
6
12
5
2
9
15
3
16
10
8
9
10
8
15
1
18
11
2
14
11
4
11
13
8

Артикул

Название

Примечание

Количество

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

819992C1

HOSE

- hydraulic, 3/8 x 128 inch

2шт.

5

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flare

1шт.

6

218-654

4 WAY CONNECTION,3/4"-16, 37 Degree

CROSS - 3/4-16 inch flare

1шт.

7

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adj, 3/4-16 inch flare x female straight thread

1шт.

8

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x female swivel

3шт.

9

842773C1

RESTRICTOR

CHECK VALVE - hydraulic

2шт.

10

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, 3/4-16 inch flare

2шт.

11

1279597C1

HOSE

- hydraulic, 3/8 x 210 inch

2шт.

12

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - short, 3/4-16 inch flare x 9/16-18 inch flare

2шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - IA Ind., 2 ID x 8 inch stroke, 9/16-18 inch single port (See page 8-47 or 8-49 for correct cylinder)

2шт.

15

1279721C1

HYDRAULIC HOSE,12.70 mm ID x 3251.00 mm

12.70 mm ID x 3251.00 mm

2шт.

16

1279860C91

RESTRICTOR

VALVE - restrictor

2шт.

17

813579C1

CABLE TIE

STRAP - tie, nylon

8шт.

18

515030R1

CLAMP

- hose

2шт.

19

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 19
