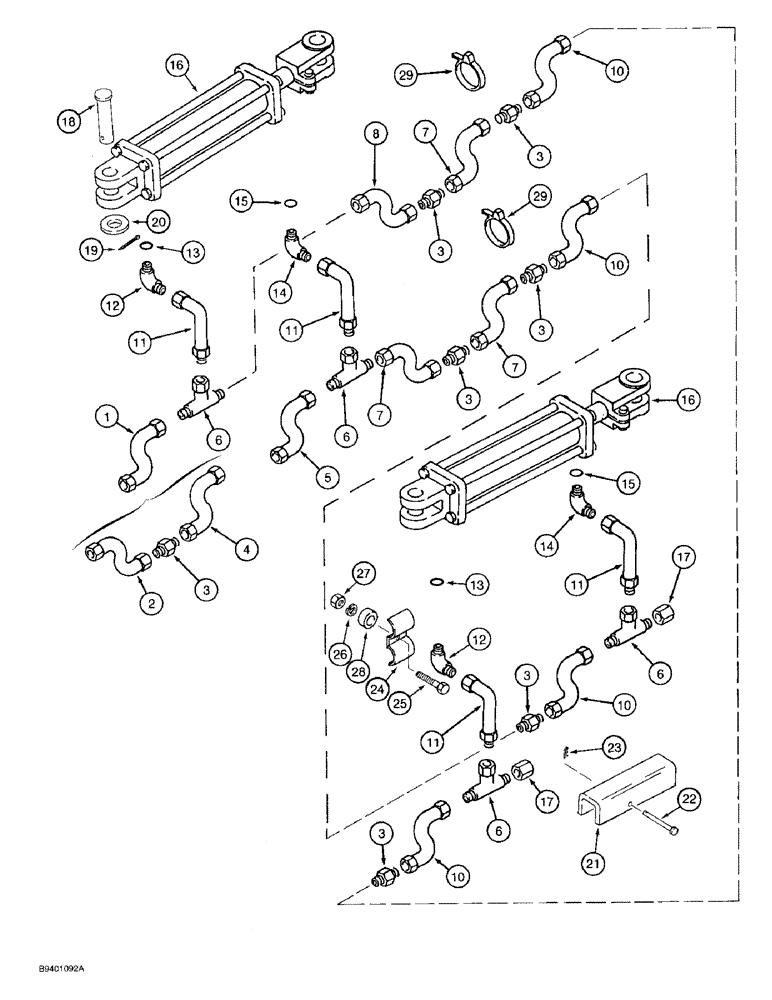

Запчасти Case IH 7100 (8-32) - ENDWISE TRANSPORT HYDRAULIC SYSTEM, 2ND, 3RD, 4TH OR TRAILING UNIT, MACHINES BUILT 1980 THROUGH 1984 (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - hydraulic, 3/8 x 103 inch (Order (1) 1310502C1 hose, item 2, (1) 218-434 adapter, item 3 and (1) 851789C2 hose, item 4)

1шт.

2

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

(Replaces 675984R91 hose, 80 inch and 843153C1 hose, 79 inch) 9.52 mm ID x 2082.80 mm, SAE 100R1

1шт.

3

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare

1шт.

4

851789C2

HOSE

- hydraulic, 3/8 x 20-1/2 inch

1шт.

5

1140447C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 75 inch (Replaces 819842C1 hose, 73 inch)

1шт.

6

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

4шт.

7

66875C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 36 inch

1шт.

8

179411C1

HOSE

- hydraulic, 3/8 x 61 inch (Replaces 843152C1 hose, 57 inch)

1шт.

10

818290C1

HOSE

- hydraulic, 3/8 x 12 inch

4шт.

11

819872C1

TUBE,0.5" OD, 5" Length

- pressure and return

4шт.

12

1277964C1

ELBOW

- flow restrictor

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - Victor, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-57)

1шт.

16

1286321C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - Ram, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-63)

1шт.

17

218-755

CAP,37 Degree, 3/4"-16

2шт.

18

439-11672

HEADED PIN,1" x 4 1/2"

PIN - headed, 1 x 4-1/2 inch

1шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

20

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 2 x 3/64"

1шт.

21

1337050C1

CHANNEL

- hydraulic lockout

2шт.

22

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

2шт.

23

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable

2шт.

24

379045R1

CLAMP

- hydraulic hose

2шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

28

22055R1

SPACER,1/4" Pipe x .594"

- hose clamp

2шт.

29

813579C1

CABLE TIE

STRAP - tie, nylon

3шт.
