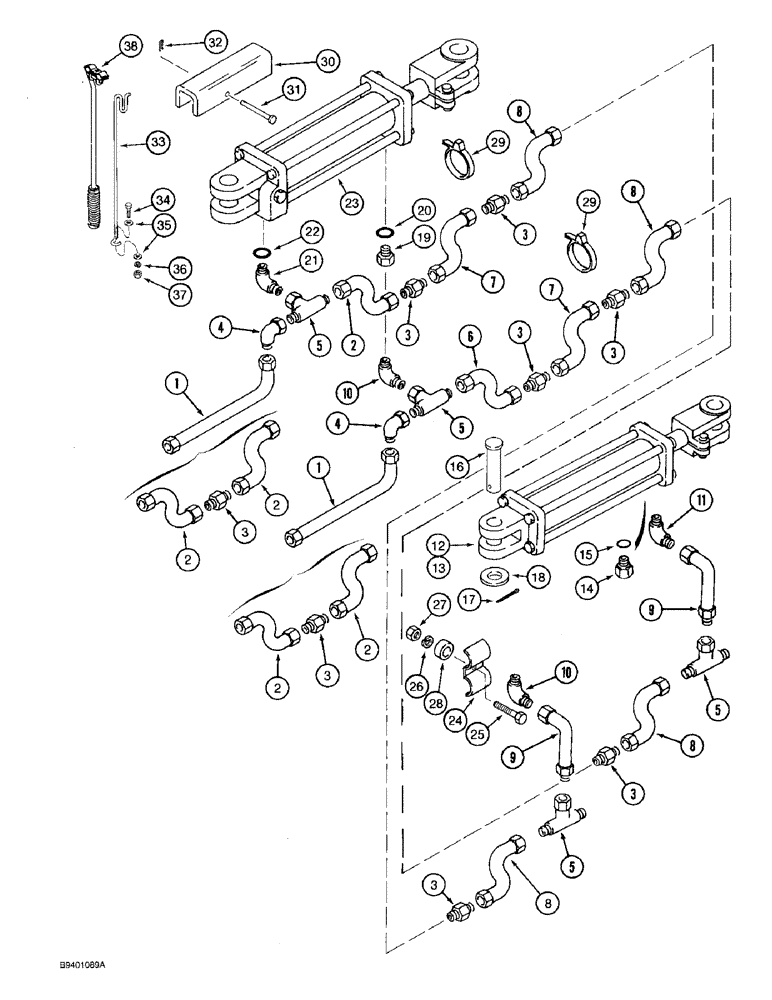

Запчасти Case IH 7100 (8-22) - ENDWISE TRANSPORT HYDRAULIC SYSTEM, LEADING UNIT, MACHINES BUILT FROM 1980 THROUGH 1984 (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - hydraulic, 3/8 x 162 inch (Order (2) 1310502C1 hose, item 2 and (1) 218-434 adapter, item 3 )

2шт.

2

H331637

HYDRAULIC HOSE,9.52 mm ID x 2082.80 mm, SAE 100R1

(Replaces 675984R91 hose, 80 inch and 843153C1 hose, 79 inch long) 9.52 mm ID x 2082.80 mm, SAE 100R1

1шт.

3

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

2шт.

5

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- 3/4-16 inch swivel straight thread branch x flare

4шт.

6

179411C1

HOSE

- hydraulic, 3/8 x 61 inch (Replaces 843152C1 hose, 57 inch long)

1шт.

7

66875C1

HOSE ASSY.

HOSE - hydraulic, 3/8 x 36 inch (Replaces 843155C1 hose, 33 inch long)

2шт.

8

818290C1

HOSE

- hydraulic, 3/8 x 12 inch

1шт.

9

819872C1

TUBE,0.5" OD, 5" Length

- pressure and return

2шт.

10

819966C1

ELBOW

- flow restrictor

2шт.

11

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

12

844025C92

CYLINDER

ASSEMBLY - Monarch, 2-1/2 x 8 inch, 1/2 inch PT front and rear ports (See Note and page 8-55)

1шт.

12

843125C91

CYLINDER

ASSEMBLY - Ram, 2-1/2 x 8 inch, 1/2 inch PT front and rear ports (See Note and page 8-61)

1шт.

13

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - Victor, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-57)

1шт.

13

1286321C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - Ram, 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-63)

1шт.

14

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER - 1/2 PT female x 3/4-16 male, used with 1272402C91 and 1286321C91 cylinders

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

22064R1

PIN

- headed, 1 x 4-1/2 inch

1шт.

17

32-1624

COTTER PIN,1/4" x 1 1/2"

PIN, SPLIT (COTTER), 1/4" x 1 1/2"

1шт.

18

21162R1

WASHER

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

19

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

ADAPTER - straight, 3/4-16 flare x 1/2 inch female PT

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

818146C92

CYLINDER

ASSEMBLY - Prince, 4-1/2 x 8 inch (See page 8-67)^

1шт.

24

379045R1

CLAMP

- hydraulic hose

1шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

28

22055R1

SPACER,1/4" Pipe x .594"

- hose clamp

1шт.

29

813579C1

CABLE TIE

STRAP - tie, nylon

3шт.

30

843137C1

CHANNEL

- hydraulic lockout

1шт.

31

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch

1шт.

32

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN - cotter, quick attachable

1шт.

33

651793R2

SUPPORT

ROD - hose support

1шт.

34

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

1шт.

35

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

36

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

37

425-1010

NUT,5/8"-11, G5

1шт.

38

REF

INSTRUCTION

SUPPORT - hydraulic hose (See page 8-43 for correct parts)

1шт.
