Запчасти Case IH 7100 (8-08) - LIFT HYDRAULIC SYSTEM, TWO DRILL COMBINATION, USES SINGLE HOSE FROM TEE TO CYLINDER (08) - HYDRAULICS

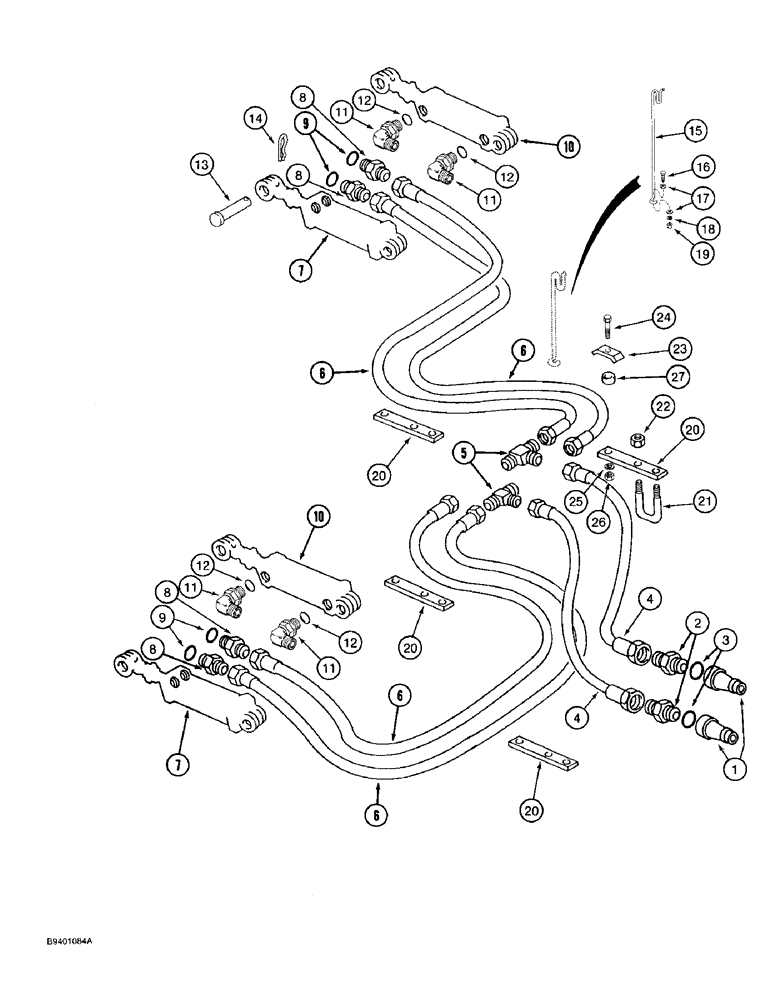

Схема запчастей Case IH 7100 - (8-08) - LIFT HYDRAULIC SYSTEM, TWO DRILL COMBINATION, USES SINGLE HOSE FROM TEE TO CYLINDER (08) - HYDRAULICS
12
18
11
11
20
21
22
24
6
15
17
5
11
20
12
8
10
14
12
8
4
26
7
1
6
2
12
19
27
3
20
6
20
11
6
23
4
10
8
7
9
16
13
8
9
25

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

1a

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

1284369C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 130 inch

2шт.

5

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare

2шт.

6

1284303C1

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 145 inch

4шт.

7

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - IA Ind., 2-1/2 x 8 inch, 3/4-16 inch dual rear ports (See page 8-53)

2шт.

8

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

4шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

1272145C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - IA Ind., 2-1/2 x 8 inch, 3/4-16 inch front and rear ports (See page 8-59)

2шт.

11

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

810751C1

PIN

- headed, 1 x 3-1/2 inch

4шт.

14

1980543C1

HAIR PIN COTTER

PIN - cotter, quick attachable, 5/32 inch diameter

4шт.

14a

1268367C2

STOP

- cylinder assembly, not shown (See page 8-45)

1шт.

15

651793R2

SUPPORT

ROD - hose support

1шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

17

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

19

425-1010

NUT,5/8"-11, G5

1шт.

20

819854C1

BAR

- hose support

4шт.

21

811627C1

BOLT

U-BOLT - hose support

4шт.

22

425-1010

NUT,5/8"-11, G5

8шт.

23

379045R1

CLAMP

- hose

4шт.

24

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

27

618631R1

SPACER

- hose clamp

4шт.

Выбрано товаров: 30
