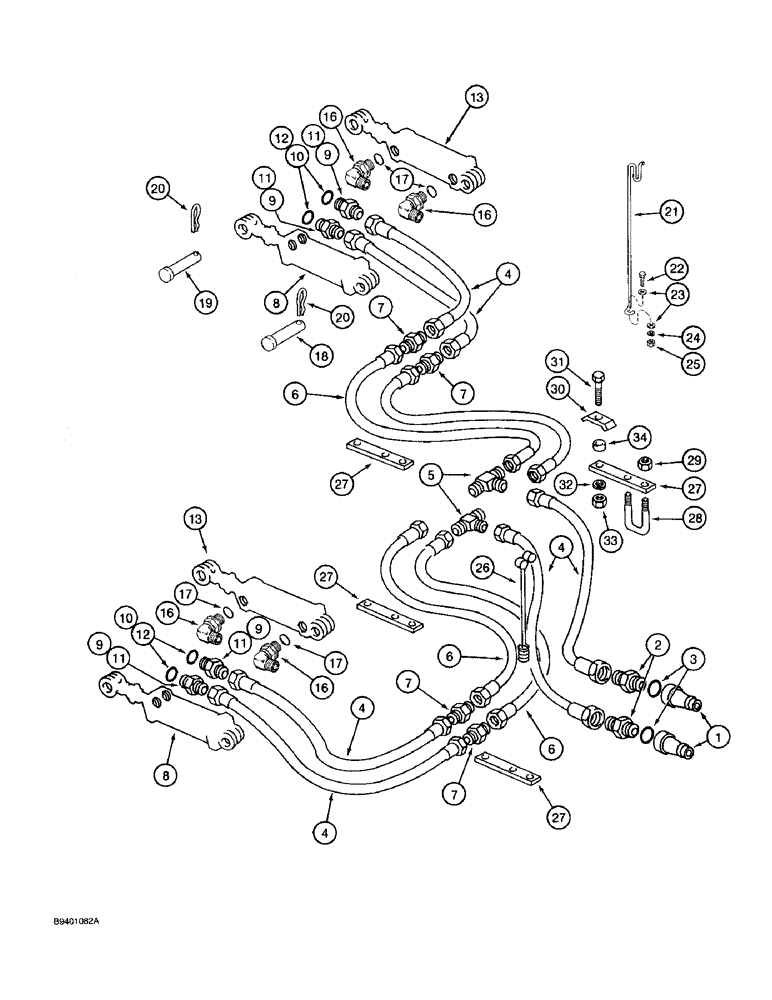

Запчасти Case IH 7100 (8-04) - LIFT HYDRAULIC SYSTEM, TWO DRILL COMBINATION, USES TWO HOSES FROM TEE TO CYLINDER (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

1a

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

819992C1

HOSE

- hydraulic, 3/8 x 128 inch

6шт.

5

218-594

TEE,3/4"-16, 37 Degree

- 3/4-16 inch flared

2шт.

6

196822C1

HOSE

- hydraulic, 3/8 x 43 inch

4шт.

7

218-434

HYD CONNECTOR,3/4" - 16 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 3/4-16 inch flare

4шт.

8

371291R97

CYLINDER

ASSEMBLY - IA Ind., 2-1/2 x 8 inch, 7/8-14 inch dual rear ports (See page 8-51)

2шт.

8

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - IA Ind., 2-1/2 x 8 inch, 3/4-16 inch dual rear ports (See page 8-53)

2шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, used with 371291R91 cylinder 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, used with 145353C91 cylinder

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

844025C92

CYLINDER

ASSEMBLY - Monarch, 2-1/2 x 8 inch, 1/2 inch PT front and rear ports (See Note and page 8-55)

2шт.

13

1272402C91

CYLINDER,Double Acting, 31.7mm Rod, 203.2mm Stroke

ASSEMBLY - Victor, 2-1/2 x 8 inch, 1/2-14 inch front and rear ports (Replaces Monarch cylinder assembly, see page 8-57)

2шт.

13a

844098C91

COLLAR

ASSEMBLY - stroke control, not shown (See page 8-45)

2шт.

14

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT (Use with Monarch cylinder assembly) (not shown)

4шт.

16

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss (Use with Victor cylinder assembly)

4шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

2шт.

19

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

20

520175R1

CLIP

PIN - cotter, quick attachable, 3/16 inch diameter

4шт.

21

651793R2

SUPPORT

ROD - hose support

1шт.

22

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

23

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

24

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25

425-1010

NUT,5/8"-11, G5

1шт.

26

REF

INSTRUCTION

SUPPORT - hydraulic hose (See page 8-43 for correct partsz)

1шт.

27

819854C1

BAR

- hose support

4шт.

28

811627C1

BOLT

U-BOLT - hose support

4шт.

29

425-1010

NUT,5/8"-11, G5

8шт.

30

379045R1

CLAMP

- hose

4шт.

31

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

34

618631R1

SPACER

- hose clamp

4шт.
