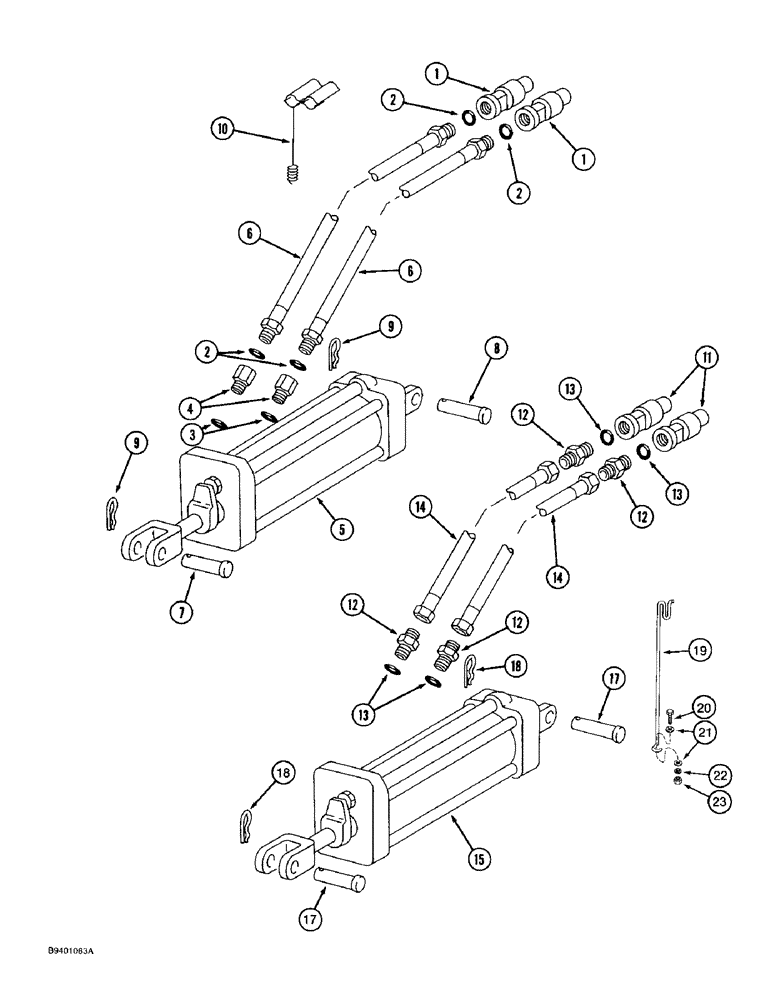

Запчасти Case IH 7100 (8-02) - LIFT HYDRAULIC SYSTEM, SINGLE DRILL, WITH MALE END HOSES AT CYLINDER AND COUPLERS (08) - HYDRAULICS

1

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type

2шт.

1

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard)

2шт.

1a

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

4

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

ADAPTER - 3/4-16 male x 7/8-14 inch female O-ring boss

2шт.

5

REF

INSTRUCTION

CYLINDER ASSEMBLY - IA Ind., 2-1/2 x 8 inch (See pages 8-51 and 8-53 for correct cylinder)

1шт.

6

372570R91

HOSE ASSY.

HOSE - hydraulic, 1/2 x 152 inch

2шт.

7

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

1шт.

8

64560C1

HEADED PIN

PIN - headed, 1 x 3 inch

1шт.

9

520175R1

CLIP

PIN - cotter, quick attachable, 3/16 inch diameter

2шт.

10

REF

INSTRUCTION

SUPPORT - hydraulic hose (See page 8-43 for correct parts)

1шт.

11

395149R1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread poppet type , female end hoses at cyl. and couplers

2шт.

11

1272399C2

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type (ISO standard) , female end hoses at cyl. and couplers

2шт.

11a

1341843C1

QUICK MALE COUPLING

COUPLER - hose, male, 7/8-14 thread self sealing type , female end hoses at cyl. and couplers

2шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss , female end hoses at cyl. and couplers

4шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Female end hoses at cylinder and couplers

1шт.

14

139655C2

HYDRAULIC HOSE

HOSE - hydraulic, 3/8 x 155 inch , female end hoses at cyl. and couplers

2шт.

15

145353C91

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - IA Ind., 2-1/2 x 8 inch (See page 8-53) , female end hoses at cyl. and couplers

2шт.

17

810751C1

PIN

- headed, 1 x 3-1/2 inch , female end hoses at cyl. and couplers

2шт.

18

1980543C1

HAIR PIN COTTER

PIN - cotter, quick attachable, 5/32 inch diameter , female end hoses at cyl. and couplers

2шт.

19

651793R2

SUPPORT

ROD - hose support , female end hoses at cyl. and couplers

1шт.

20

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, Female end hoses at cyl. and couplers

1шт.

21

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch , female end hoses at cyl. and couplers

2шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Female end hoses at cyl. and couplers 5/8"

1шт.

23

425-1010

NUT,5/8"-11, G5

Female end hoses at cyl. and couplers 5/8"-11, G5

1шт.
