Запчасти Case IH 7100 (9-156) - TRANSPORT CHAIN AND SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

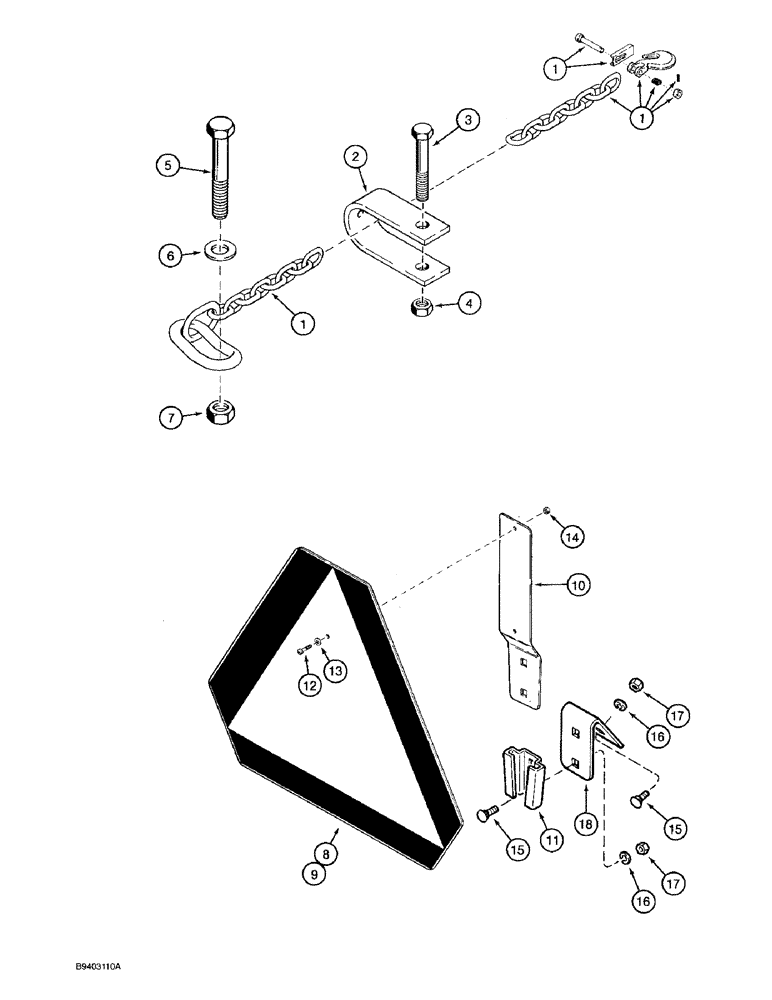

Схема запчастей Case IH 7100 - (9-156) - TRANSPORT CHAIN AND SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
9
18
11
13
2
6
15
15
7
12
17
3
1
17
16
1
14
10
1
16
4
5
8

Артикул

Название

Примечание

Количество

1

100682C3

CHAIN (AG)

CHAIN - transport, 10,000 pound, 5/16 link x 59-1/4 inch

1шт.

61913C92

PACKAGE

KIT - clevis and hardware, transport chain

1шт.

2

148558C1

CLEVIS

- transport chain

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

4

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex lock, 5/8 inch NC

1шт.

5

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

1шт.

6

495-81047

WASHER,25/32" x 2" x .179"

- flat, 25/32 x 2 x 5/32 inch

1шт.

7

231-14412

LOCK NUT,3/4"-10, GB

NUT - hex lock, 3/4 inch NC

1шт.

407220R1

PRODUCT GRAPHIC

EMBLEM ASSEMBLY - SMV, steel

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - SMV emblem

1шт.

9

321-4311

DECAL

- SMV emblem

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - SMV emblem mounting

1шт.

11

398976R1

BRACKET

- SMV mounting

1шт.

12

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

13

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 1/16 inch

2шт.

14

225-14110

NUT,#10-24

2шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

18

819998C1

SUPPORT

BRACKET - SMV emblem mounting, at hopper

1шт.

Выбрано товаров: 20
