Запчасти Case IH 7100 (9-152) - TRANSPORT WHEEL AND AXLE, ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS

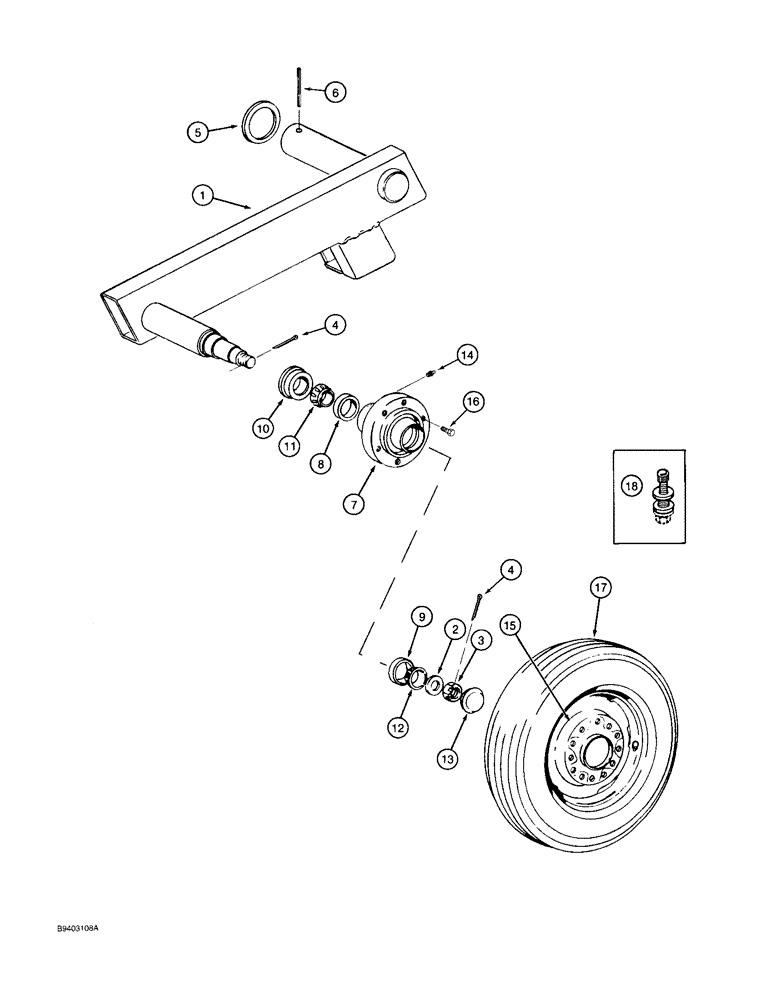

Схема запчастей Case IH 7100 - (9-152) - TRANSPORT WHEEL AND AXLE, ENDWISE TRANSPORT (09) - CHASSIS/ATTACHMENTS
10
12
9
18
4
6
17
4
2
11
16
8
3
5
7
14
13
15
1

Артикул

Название

Примечание

Количество

1

817793C92

CENTER AXLE

AXLE ASSEMBLY - transport wheel, left-hand

1шт.

1

817794C92

CENTER AXLE

AXLE ASSEMBLY - transport wheel, right-hand

1шт.

2

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

- flat, 29/32 x 2 x 5/32 inch (Replaces 619373R1)

1шт.

3

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted 7/8 inch NC

1шт.

4

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

1шт.

5

521159R1

WASHER

- flat, 2-5/16 x 3 x 3/32 inch

1шт.

6

438-32448

PIN,3/8" x 3", Coiled

1шт.

606468R21

HUB

ASSEMBLY - transport wheel

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - transport wheel

1шт.

8

663558R1

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

9

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - tapered roller bearing, outer

1шт.

10

606556R91

OIL SEAL

SEAL - wheel hub oil, with wear sleeve

1шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, inner

1шт.

12

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - tapered roller bearing, outer

1шт.

13

663906R1

CAP

- wheel hub

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, self-tap, 1/4 NF x 1/2 inch

1шт.

15

481344R91

WHEEL

- steel, 14 x 8 KB

1шт.

16

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

- hex conical, 1/2 NF x 15/16 inch

6шт.

17

REF

INSTRUCTION

TIRE - 9.5L-14, 6 ply, tubeless, purchase locally

1шт.

18

810768C1

VALVE

- tubeless tire, steel

1шт.

Выбрано товаров: 20
