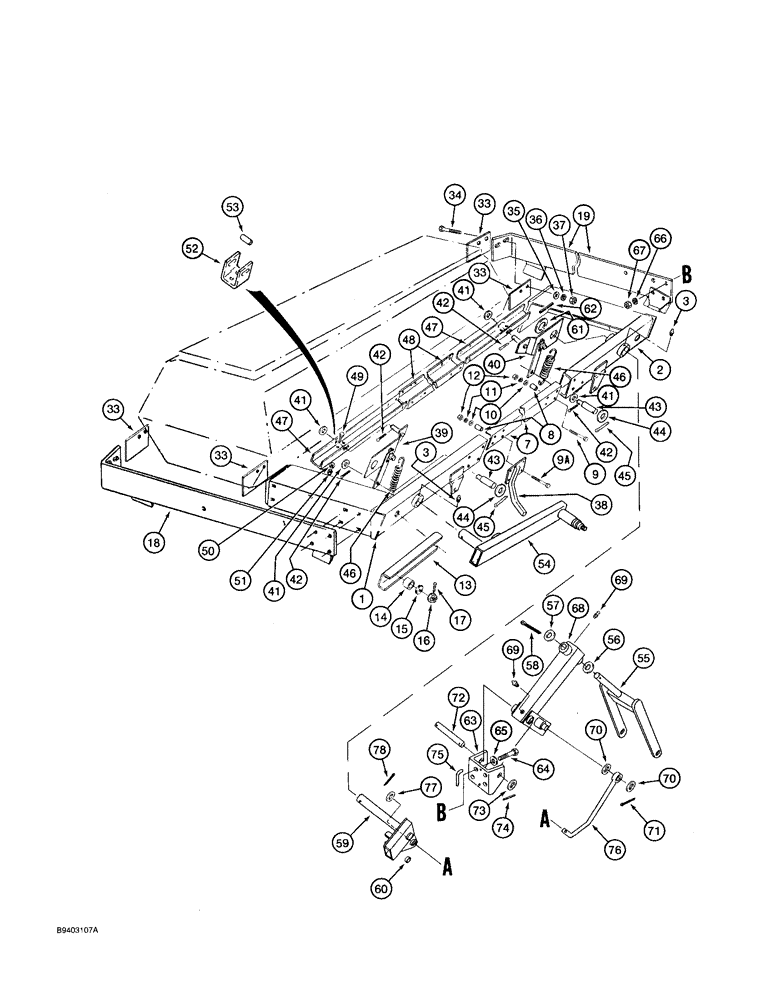

Запчасти Case IH 7100 (9-148) - FRAME AND AXLE, ENDWISE TRANSPORT, FOURTH OR TRAILING UNIT (09) - CHASSIS/ATTACHMENTS

1

819737C4

FRAME

- transport trail, left-hand

1шт.

2

819738C4

FRAME

- transport trail, right-hand

1шт.

3

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

2шт.

4

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch (Not shown)

4шт.

5

492-11075

LOCK WASHER,3/4"

not shown 3/4"

4шт.

6

425-1012

NUT,3/4"-10, G5

(Not shown) 3/4"-10, G5

4шт.

7

819754C4

CHANNEL

- transport frame tie

1шт.

8

819755C1

SPACER

- pipe

8шт.

9

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

9a

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

10

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

8шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

13

819806C1

CHANNEL

- drill spreader

1шт.

14

819823C1

BUSHING

- rear

2шт.

15

819814C1

SPACER

- wear

2шт.

16

425-1216

SLOTTED NUT,Hex, 1"-8, G5

2шт.

17

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

18

817741C2

SUPPORT

- transport frame, left-hand

1шт.

19

817742C2

SUPPORT

- transport frame, right-hand

1шт.

20

419-3824

PLOW BOLT,#3, 1/2" - 13 x 1 1/2", Gr 5

BOLT - plow head, 1/2 NC x 1-1/2 inch (Not shown)

2шт.

21

28646R1

CARRIAGE BOLT,#3, 1/2" - 13 x 4", Gr 5

BOLT - plow head, 1/2 NC x 4 inch (Not shown)

2шт.

22

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

- flat, 17/32 x 1-3/4 x 11/64 inch (Not shown)

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Not shown 1/2"

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Not shown) 1/2"-13, G5

2шт.

25

419-3828

CARRIAGE BOLT,1/2” - 13 x 1-3/4” L, Gr 5

BOLT - plow head, 1/2 NC x 1-3/4 inch (Not shown)

4шт.

26

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch (Not shown)

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Not shown 1/2"

4шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex (Not shown) 1/2"-13, G5

4шт.

29

419-31036

CARRIAGE BOLT,#3, 5/8" - 11 x 2 1/4", Gr 5

BOLT - plow head, 5/8 NC x 2-1/4 inch (Not shown)

4шт.

30

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch (Not shown)

4шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

4шт.

32

425-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

4шт.

33

819753C2

BAR

PLATE - frame spacer

6шт.

34

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

4шт.

35

495-81042

WASHER,25/32" x 1 1/2" x .120"

- flat, 25/32 x 1-1/2 x 7/64 inch

4шт.

36

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

37

425-1012

NUT,3/4"-10, G5

4шт.

38

841021C1

SUPPORT

- transport wheel lockout, left-hand

1шт.

39

819865C1

LEVER

- leveling, left-hand

1шт.

40

819869C1

LEVER

- leveling, right-hand

1шт.

41

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

42

432-1216

COTTER PIN,3/16" x 1"

4шт.

43

819867C2

PIN

- leveling spring anchor

2шт.

44

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

2шт.

45

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.

46

819861C1

COIL SPRING

SPRING - leveling

2шт.

47

817767C2

CHANNEL

- leveling

2шт.

48

818272C1

CHANNEL

- connecting

1шт.

49

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

12шт.

50

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

51

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.

52

1279616C1

BRACKET

- channel lowering

2шт.

53

810737C1

SPACER

- tube, 2-3/8 inch long

2шт.

54

817793C92

CENTER AXLE

AXLE ASSEMBLY - transport wheel, left (See page 9-153)

1шт.

55

817772C2

SUPPORT

- caster wheel

1шт.

56

462997R2

WASHER

- wear (On support pin)

1шт.

57

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

- flat, 1-25/32 x 2-1/2 x 3/64 inch

1шт.

58

432-2448

COTTER PIN,3/8" x 3"

Pin, Split (Cotter), 3/8" x 3"

1шт.

59

817705C2

PIVOT

ASSEMBLY - caster wheel

1шт.

60

608310R1

BUSHING,32.38mm ID x 50.8mm OD x 25.4mm L

- caster wheel pivot

1шт.

61

495-81243

WASHER,2 5/16" x 3" x .120"

- flat, 2-5/16 x 3 x 7/64 inch

1шт.

62

438-32448

PIN,3/8" x 3", Coiled

1шт.

63

817709C1

CHANNEL

- caster wheel support

1шт.

64

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

- hex, 5/8 NC x 3 inch, Grade 8

4шт.

65

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

4шт.

66

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

67

429-1010

NUT,5/8"-11, G8

4шт.

68

817764C1

SUPPORT

- caster wheel

1шт.

69

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, self-tap, 1/4 NF x 1/2 inch

2шт.

70

495-81088

WASHER,1.66" ID x 2.25" OD x 0.06" Thk

- flat, 1-21/32 x 2-1/4 x 3/64 inch

2шт.

71

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

72

817710C1

PIN

- caster wheel pivot

1шт.

73

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/32 inch

1шт.

74

438-32440

PIN,3/8" x 2 1/2", Coiled

1шт.

75

813175C2

LOCK PIN,9.5mm OD

PIN - lock

1шт.

76

817711C1

STEM

ROD - lift

1шт.

77

495-81203

WASHER,1 9/32" x 2" x .120"

- flat, 1-9/32 x 2 x 1/4 inch

1шт.

78

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.
