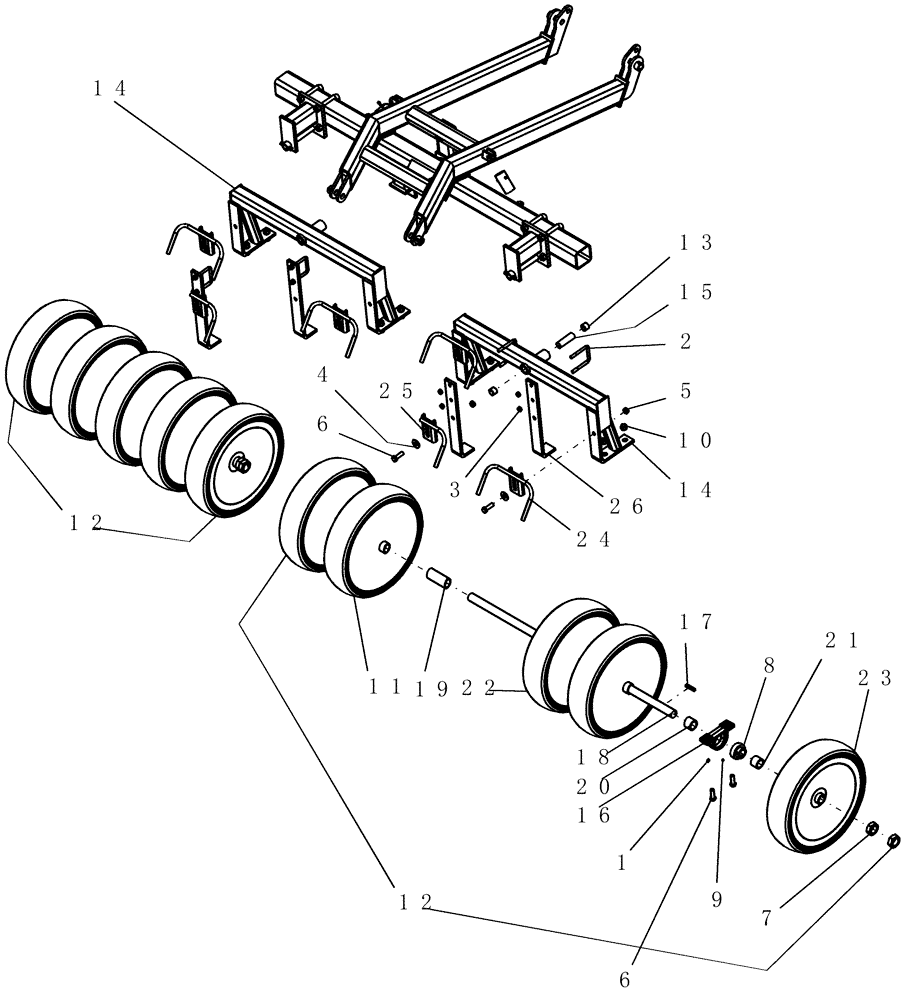

Запчасти Case IH 700 (75.200.09) - PACKER, CENTER - 12" SPACING (75) - SOIL PREPARATION

1

87414

LUBE NIPPLE,1/4" - 28

8шт.

2

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

4шт.

3

86992215

LOCK NUT,1/2"-13, GC

10шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

6шт.

5

85700693

NUT,5/8" - 11, Gr C

6шт.

6

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

14шт.

7

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

8шт.

8

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

4шт.

9

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

4шт.

10

6839

FLANGE NUT

5/8"-11 serrated flange

8шт.

11

9407

TYRE/TIRE

press wheel - 5 1/2" x 22"

10шт.

11

8251

TYRE/TIRE

press wheel - 4" x 22"

6шт.

Not Shown

1шт.

11

7215

TYRE/TIRE

press wheel - 3" x 22"

6шт.

Not Shown

1шт.

12

87418940

WHEEL ASSY

press gang 12" space 5" x 5 1/2"

2шт.

Includes 6397, 6613, 87502149, DR-578, DR-575, DR-913, DS-305, DS-305, DS-352A, DS-353A

1шт.

13

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

4шт.

14

87567183

FRAME

packer gang 5-12" front

2шт.

Includes 6635, 87525921

1шт.

15

87525921

SPACER

packer bushing

2шт.

16

87502149

BEARING HOUSING

pillow block

4шт.

17

DR-575

KEY

3/8" sq x 2 1/4" long

4шт.

18

DR-578

SHAFT

gang 54 1/2" long

2шт.

19

DR-913

SPACER

press wheel 4 51/64" ( \\ )

4шт.

20

DS-305

SPACER

press wheel 1 21/32" ( \! )

4шт.

21

DS-309

SPACER

press wheel 1 1/2" ( !! )

4шт.

21

DS-304

SPACER

press wheel 1/2" ( !! )

4шт.

Not Shown

1шт.

22

DS-352A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber standard ( \\ ) spool

6шт.

Includes 9407

1шт.

23

DS-353A

WHEEL,139.7mm OD

press 5 1/2" rubber end ( !! ) spool

4шт.

24

87504037

MUD CLEANER

12" double

4шт.

25

87504057

MUD CLEANER

12" single

2шт.

26

87504034

BRACKET

rock stripper

4шт.

100

87418937

WHEEL ASSY

press gang 12" space 5" x 3 1/2"

1шт.

Includes DR-578, DR-575, 6397, 6613, 87502149, DS-305, DR-913

1шт.

Not Shown

1шт.

100

87418938

WHEEL ASSY

press gang 12" space 5" x 3"

1шт.

Includes DR-578, DR-575, 6397, 6613, 87502149, DS-305, DR-913

1шт.

Not Shown

1шт.

100

87418939

WHEEL ASSY

press gang 12" space 5" x 4"

1шт.

Includes DR-578, DR-575, 6397, 6613, 87502149, DS-305, DR-913

1шт.

Not Shown

1шт.

100

87418941

WHEEL ASSY

press gang 12" space 5" x 4 1/2"

1шт.

Includes DR-578, DR-575, 6397, 6613, 87502149, DS-305, DR-913

1шт.

Not Shown

1шт.
