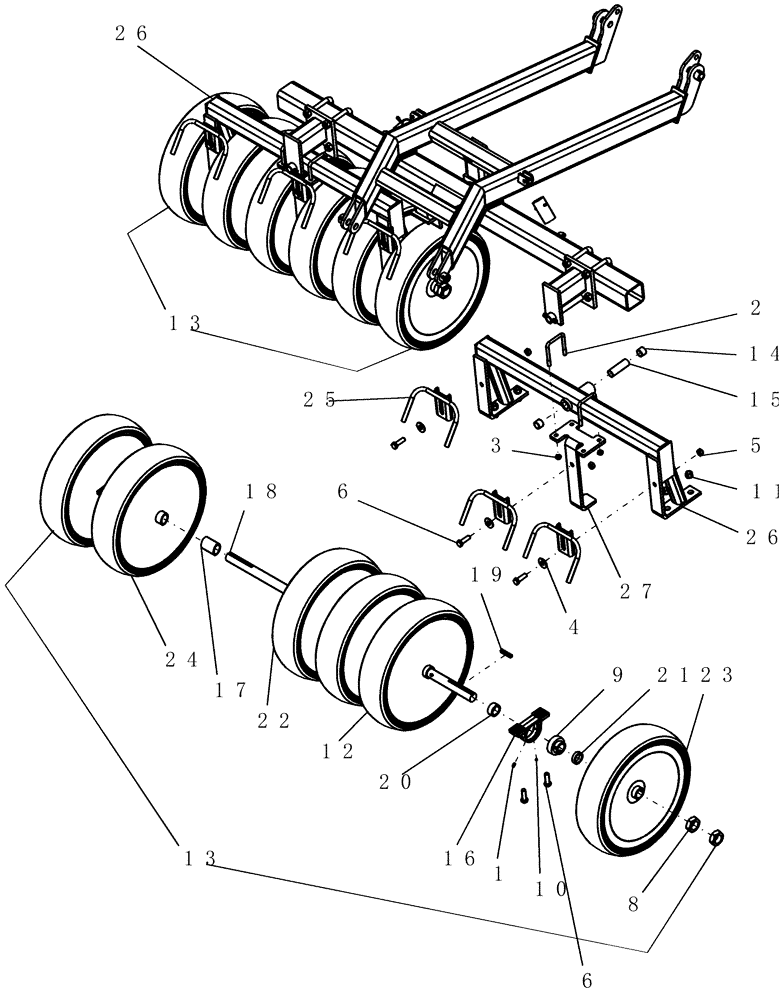

Запчасти Case IH 700 (75.200.08) - PACKER, CENTER - 10" SPACING (75) - SOIL PREPARATION

1

87414

LUBE NIPPLE,1/4" - 28

8шт.

2

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

4шт.

3

86992215

LOCK NUT,1/2"-13, GC

10шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

6шт.

5

85700693

NUT,5/8" - 11, Gr C

6шт.

6

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

14шт.

8

6368

JAM NUT,1-1/2"-12, Cl 5

jam 1 1/2"-12

8шт.

9

6613

BALL BEARING,38.1mm ID x 80mm OD x 24mm W

1 1/2" bore

4шт.

10

6667

SET SCREW

1/4"-28 x 1/4" hl hex skt blk cp

4шт.

11

6839

FLANGE NUT

5/8"-11 serrated flange

8шт.

12

9407

TYRE/TIRE

press wheel - 5 1/2" x 22"

12шт.

13

87418936

WHEEL ASSY

press gang 10" space 6" x 5 1/2"

2шт.

Includes DC-444, DR-575, 6397, 6613, DC-440, DR-921, DS-304, 9407, 87502149

1шт.

14

87420246

BUSHING,25.5mm ID x 31.84mm OD x 25.4mm L

Garmax MGL composite 1 1/4" x 1" x 1"

4шт.

15

87525921

SPACER

packer bushing

2шт.

16

87502149

BEARING HOUSING

pillow block

4шт.

17

DC-440

SPACER

2 51/64" slant cut (//)

6шт.

18

DC-444

SHAFT

gang 56 1/2" long

2шт.

18

DR-578

SHAFT

gang 54 1/2" long

2шт.

Not Shown

1шт.

18

DR-577

SHAFT

gang 47 1/8" long

2шт.

Not Shown

1шт.

19

DR-575

KEY

3/8" sq x 2 1/4" long

4шт.

20

DR-921

SPACER

press wheel 29/32" ( !! )

4шт.

20

DS-301

SPACER

press wheel 1 5/16" ( !! )

4шт.

Not Shown

1шт.

21

DS-304

SPACER

press wheel 1/2" ( !! )

4шт.

21

DS-309

SPACER

press wheel 1 1/2" ( !! )

4шт.

Not Shown

1шт.

22

DS-352A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber standard ( \\ ) spool

4шт.

22

DR-956A

WHEEL,508mm OD x 101.6mm W

press 4" rubber standard ( \\ ) spool

4шт.

Not Shown

1шт.

22

DR-952A

WHEEL

press 3" rubber standard ( \\ ) spool

4шт.

Not Shown

1шт.

22

DS-400

WHEEL,552.45mm OD x 114.3mm W

press 4 1/2" steel standard ( // ) spool

4шт.

Not Shown

1шт.

22

DR-926

WHEEL

press 3 1/2" wide standard ( // ) spool

4шт.

Not Shown

1шт.

23

DS-353A

WHEEL,139.7mm OD

press 5 1/2" rubber end ( !! ) spool

4шт.

23

DR-957A

WHEEL,508mm OD x 101.6mm W

press 4" rubber end ( !! ) spool

4шт.

Not Shown

1шт.

23

DR-954A

WHEEL

press 3" rubber end ( !! ) spool

4шт.

Not Shown

1шт.

23

DS-401

WHEEL

press 4 1/2" steel end ( !! ) spool

4шт.

Not Shown

1шт.

24

DS-354A

WHEEL,508mm OD x 139.7mm W

press 5 1/2" rubber bearing ( \! ) spool

4шт.

24

DR-958A

WHEEL

press 4" rubber bearing ( \! ) spool

4шт.

Not Shown

1шт.

24

DR-953A

WHEEL,508mm OD x 76.2mm W

press 3" rubber bearing ( \! ) spool

4шт.

Not Shown

1шт.

24

DS-403

WHEEL

press 4 1/2" steel bearing ( /! ) spool

4шт.

Not Shown

1шт.

24

DR-918

WHEEL

press 3 1/2" wide bearing ( /! ) spool

4шт.

Not Shown

1шт.

25

87504036

MUD CLEANER

10" double

6шт.

26

87567179

FRAME

packer gang front 6 wheel 10"

2шт.

Includes 6635, 87525921

1шт.

27

87504035

BRACKET

rock stripper

2шт.
