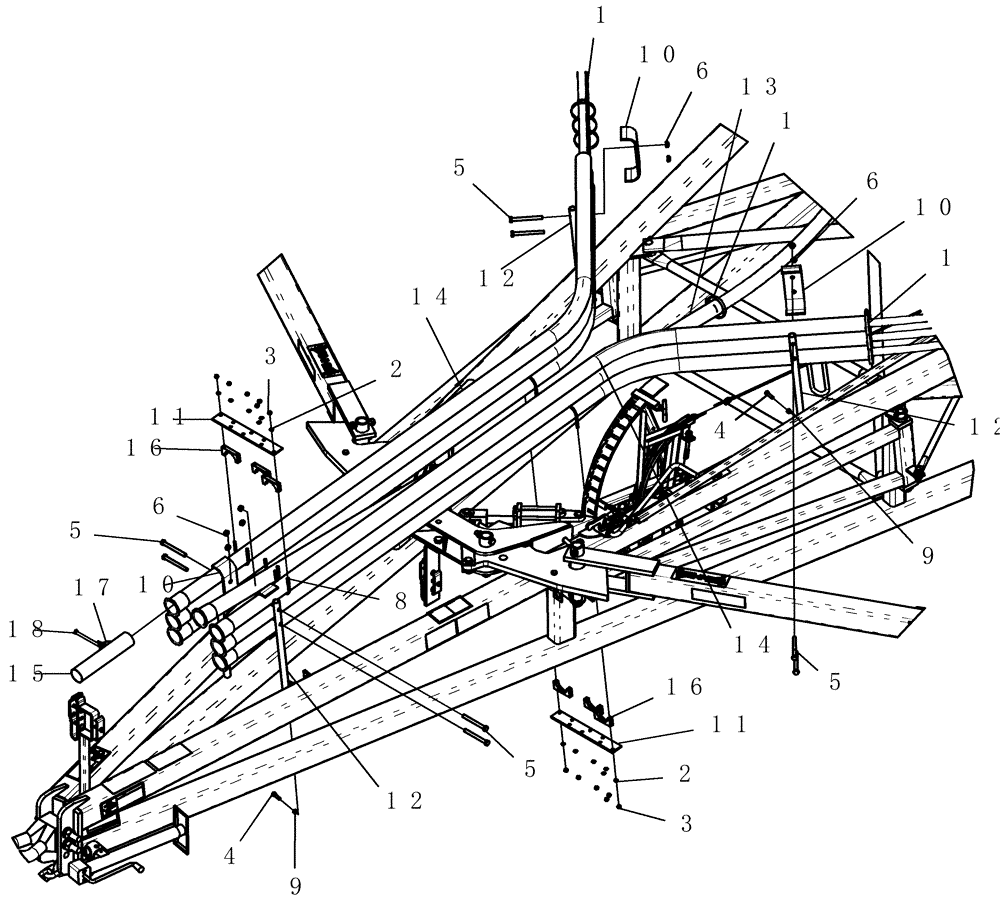

Запчасти Case IH 700 (75.100.01) - HITCH, AIRPACK SECTION - TOW BETWEEN SINGLE AND DOUBLE SHOOT (75) - SOIL PREPARATION

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

7шт.

Single Shoot

1шт.

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

14шт.

Double Shoot

1шт.

2

80681

LOCK WASHER,5/16"

12шт.

Single Shoot

1шт.

2

80681

LOCK WASHER,5/16"

16шт.

Double Shoot

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

12шт.

Single Shoot

1шт.

3

9635082

NUT,5/16" - 18, Gr 5

16шт.

Double Shoot

1шт.

4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

5

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

8шт.

Single Shoot

1шт.

5

87575303

STUD

airpac offset

8шт.

Double Shoot

1шт.

6

86992215

LOCK NUT,1/2"-13, GC

8шт.

8

1824

CLAMP

muffler, 2 1/2"

6шт.

Single Shoot

1шт.

8

1824

CLAMP

muffler, 2 1/2"

8шт.

Double Shoot

1шт.

9

9628503

NUT,3/8"-16, G5

4шт.

10

87504726

CLAMP

air package

4шт.

Single Shoot

1шт.

10

87504726

CLAMP

air package

8шт.

Double Shoot

1шт.

11

87504427

MOUNTING PLATE

hose organizer

2шт.

12

87575304

SHAFT

hose mount

4шт.

13

87504414

TUBE,63.5 mm OD x 3043 mm L

primary straight

1шт.

Single Shoot

1шт.

13

87504414

TUBE,63.5 mm OD x 3043 mm L

primary straight

2шт.

Double Shoot

1шт.

14

87504413

TUBE,63.5 OD x 3189 mm L

primary tow between

6шт.

Single Shoot

1шт.

14

87504413

TUBE,63.5 OD x 3189 mm L

primary tow between

12шт.

Double Shoot

1шт.

15

87504371

PIPE FITTING

air package with latch

7шт.

16

1824

CLAMP

muffler, 2 1/2"

6шт.

17

8190

LATCH

clamp over center

1шт.

18

7327

RIVET,Pop, 1/8" x .390", Stainless

2шт.
