Запчасти Case IH 700 (55.404.AA[03]) - LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS

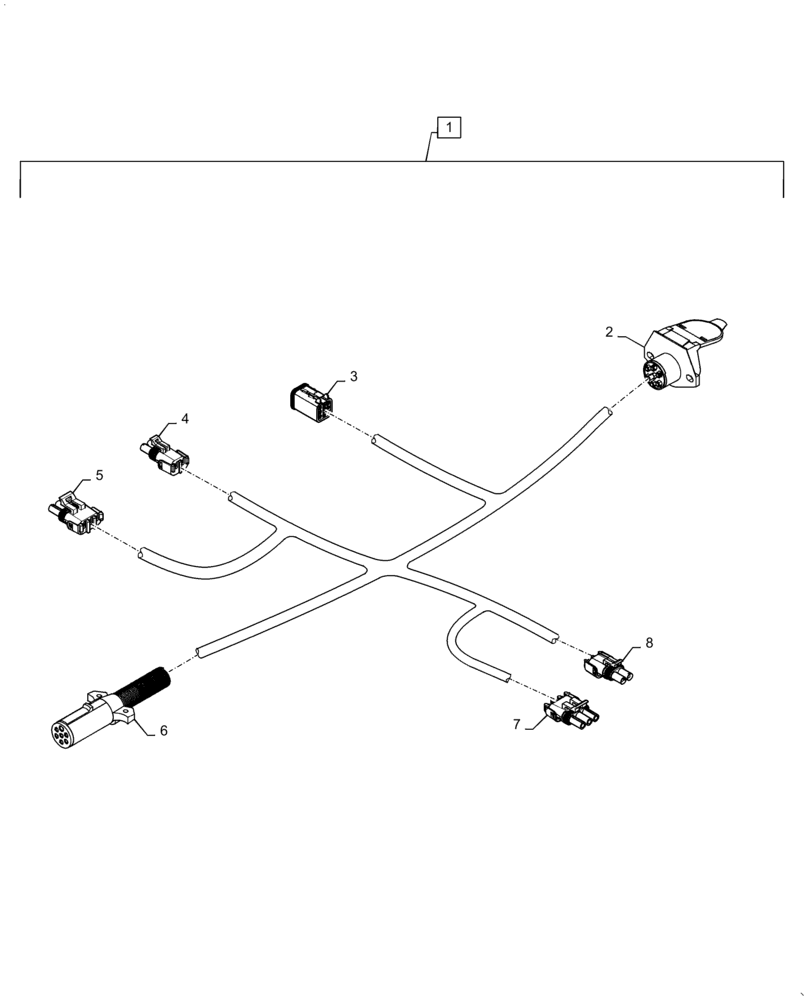

![Схема запчастей Case IH 700 - (55.404.AA[03]) - LIGHTING HARNESS (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5315610.png)
3
8
1
5
4
7
2
6
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
47792146
WIRE HARNESS
Lighting Incl 2 - 8, Start Serial: YFS062001
1шт.
2
84162518
ELEC CONNECTOR
To Air Cart , Start Serial: YFS062001
1шт.
3
87694112
ELEC CONNECTOR,Female, 6 Pole
Module , Start Serial: YFS062001
1шт.
4
87692855
CONTACT HOUSING,Male, 2 Cavities
Right Hand Turn Light , Start Serial: YFS062001
1шт.
5
87644909
WIRE CONNECTOR,Female, 3 Pins
Right Tail Light , Start Serial: YFS062001
1шт.
6
84137504
MULTIPOLE CONNECTOR,Female, 7 Pole
To Tractor Lights , Start Serial: YFS062001
1шт.
7
87644909
WIRE CONNECTOR,Female, 3 Pins
Left Tail Light , Start Serial: YFS062001
1шт.
8
87692855
CONTACT HOUSING,Male, 2 Cavities
Left Turn Light , Start Serial: YFS062001
1шт.
Выбрано товаров: 8
