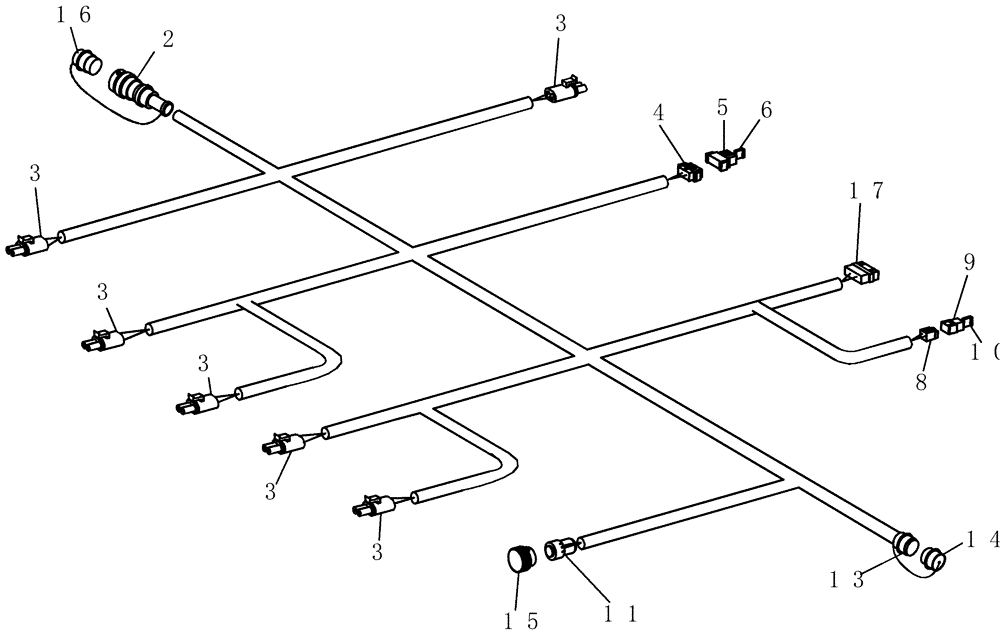

Запчасти Case IH 700 (55.100.03) - HARNESS, POSITION MONITOR TOW BEHIND (55) - ELECTRICAL SYSTEMS

0

87399184

HARNESS

frame, tow behind

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

15117

ELEC CONNECTOR,2 Pin

plastic 2c plug

6шт.

4

51200011

ELEC CONNECTOR,12 Pin

plastic 12c plug

1шт.

5

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

6

225055C1

PLUG

connector 20awg

12шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

9

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

10

225055C1

PLUG

connector 20awg

3шт.

11

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

1шт.

13

352506A1

ELEC CONNECTOR,Male, 9 Pin

metal 9c receptacle

1шт.

14

245041C1

CAP

dust 23 cond plug Deutsch

1шт.

15

NSS

NOT SOLD SEPARAT

dust cap

1шт.

16

NSS

NOT SOLD SEPARAT

cap

1шт.

17

NSS

NOT SOLD SEPARAT

connector

1шт.
