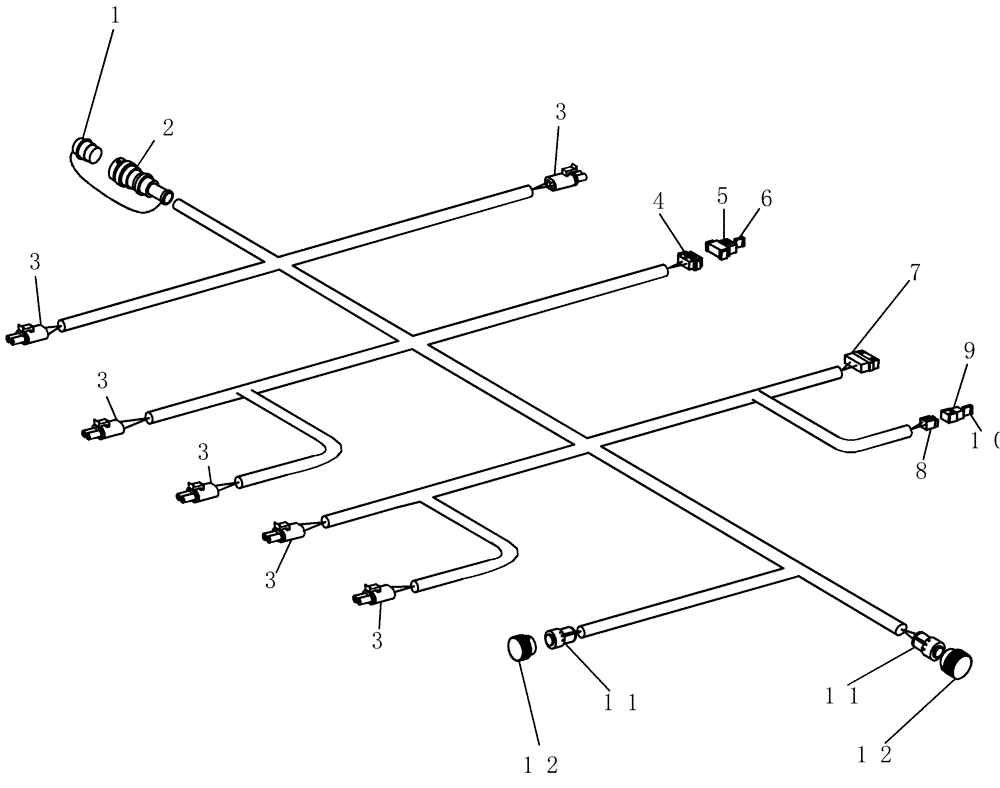

Запчасти Case IH 700 (55.100.02) - HARNESS, POSITION MONITOR TOW BETWEEN (55) - ELECTRICAL SYSTEMS

0

87399186

HARNESS

frame tow between, Serial Range: -Y8S015000

1шт.

1

NSS

NOT SOLD SEPARAT

cap

1шт.

0

84368483

WIRE HARNESS

Seedtool, TBT, LHD, 13.2m, Start Serial: Y8S015001

1шт.

2

279043A1

ELEC CONNECTOR,Female, 9 Pin

metal 9c plug

1шт.

3

15117

ELEC CONNECTOR,2 Pin

plastic 2c plug

6шт.

4

51200011

ELEC CONNECTOR,12 Pin

plastic 12c plug

1шт.

5

223672A1

MULTIPOLE CONNECTOR,Male, 12 Pin

elec plastic 12c receptacle

1шт.

6

225055C1

PLUG

connector 20awg

12шт.

7

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

34 Pin Plug

1шт.

7

87410950

ELEC. TERMINAL PIN,Female

Super Seal Connector Receptacle

1шт.

8

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

9

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

10

225055C1

PLUG

connector 20awg

3шт.

11

425050A1

ELEC CONNECTOR,Female, 6 Pin

plastic 6c plug

2шт.

12

NSS

NOT SOLD SEPARAT

dust cap

2шт.
