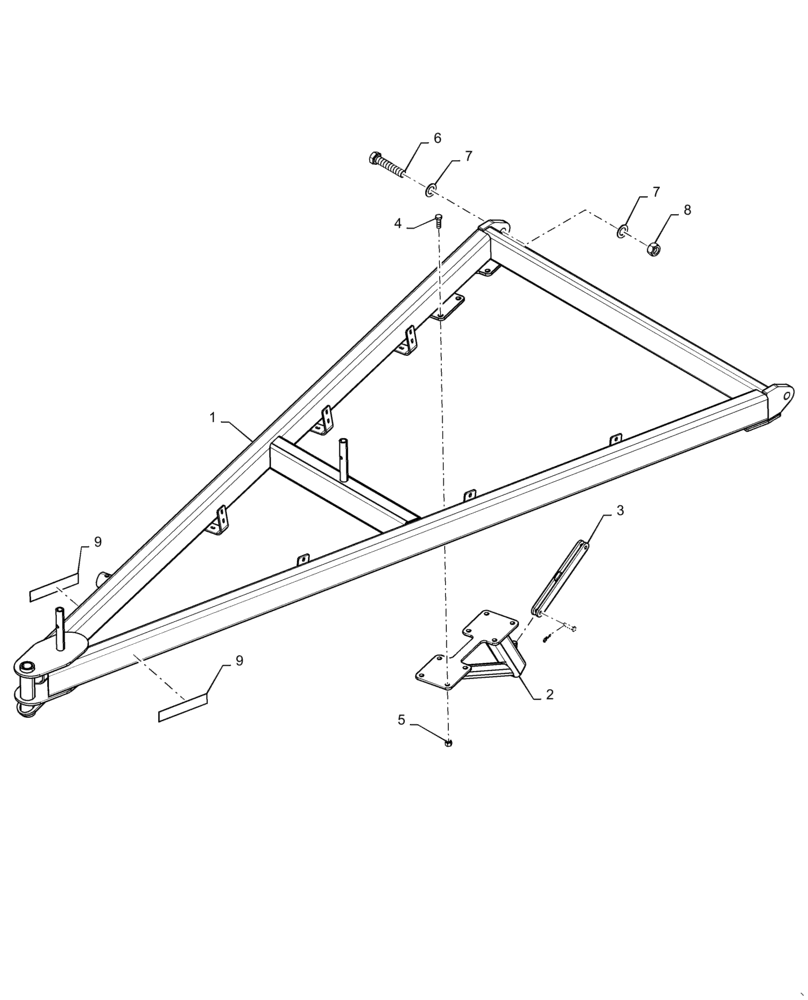

Запчасти Case IH 700 (39.110.AA[06]) - AIRCART HITCH LONG (39) - FRAMES AND BALLASTING

1

47693596

HITCH

Air Cart Long , Start Serial: YFS062001

1шт.

2

47693601

HITCH

Support , Start Serial: YFS062001

1шт.

3

47693605

SUPPORT

Rear Hitch , Start Serial: YFS062001

1шт.

4

385922

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8

, Start Serial: YFS062001

8шт.

5

146988

LOCK NUT,M16 x 2, Cl 8

, Start Serial: YFS062001

8шт.

6

1886177

BOLT,Hex, M30 x 3.5 x 150mm, Cl 8.8

, Start Serial: YFS062001

2шт.

7

87020814

WASHER,33mm ID x 56mm OD x 4mm Thk

, Start Serial: YFS062001

4шт.

8

87752066

NUT

, Start Serial: YFS062001

2шт.

9

311864A1

REFLECTOR

, Start Serial: YFS062001

2шт.
