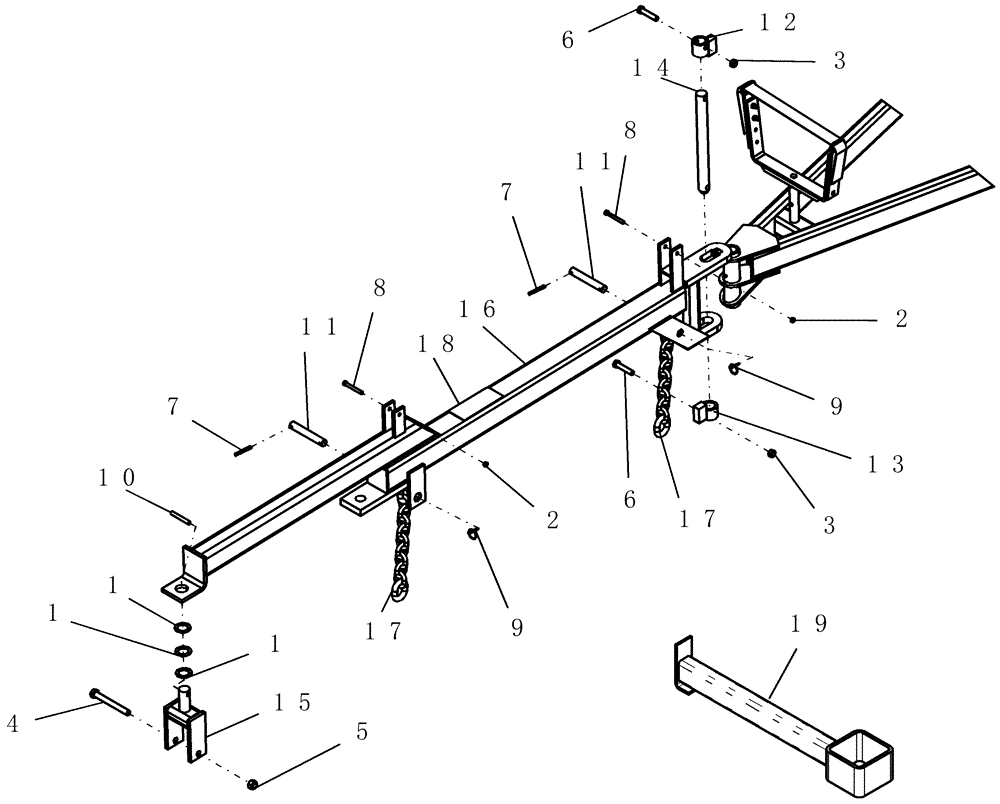

Запчасти Case IH 700 (39.110.09) - HITCH, NH3 (39) - FRAMES AND BALLASTING

1

1313

WASHER,1-1/2" ID x 2-1/4" OD x 10 Ga Thk

1 1/2" id 2 1/4" 10ga

3шт.

2

88902

NUT,3/8"-16

2шт.

3

85700693

NUT,5/8" - 11, Gr C

2шт.

4

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

1шт.

5

280375

NUT,3/4"-10, GC

1шт.

6

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

7

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

2шт.

8

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

2шт.

9

302676A1

LINCH PIN

4.76 mm x 31.75 mm long

2шт.

10

432606A1

ROLL PIN

1/2" x 3 1/2"

1шт.

11

87420138

PIN

25.4 x 136 ul, 2 holes

2шт.

12

87505049

LOCK PIN

Top

1шт.

13

87505047

LOCK PIN

bottom

1шт.

14

87420139

PIN,38.1mm OD x 439mm L

38.1 x 378 ul

1шт.

15

87504095

ADAPTER

nh3 hitch

1шт.

16

87504094

HITCH

nh3 cart

1шт.

Includes 87580890

1шт.

17

1032163

CHAIN (AG)

safety, 40,400 lb

2шт.

18

87580890

DECAL

tow hitch

1шт.

19

87504735

ARM

Tow Hitch Storage

1шт.
