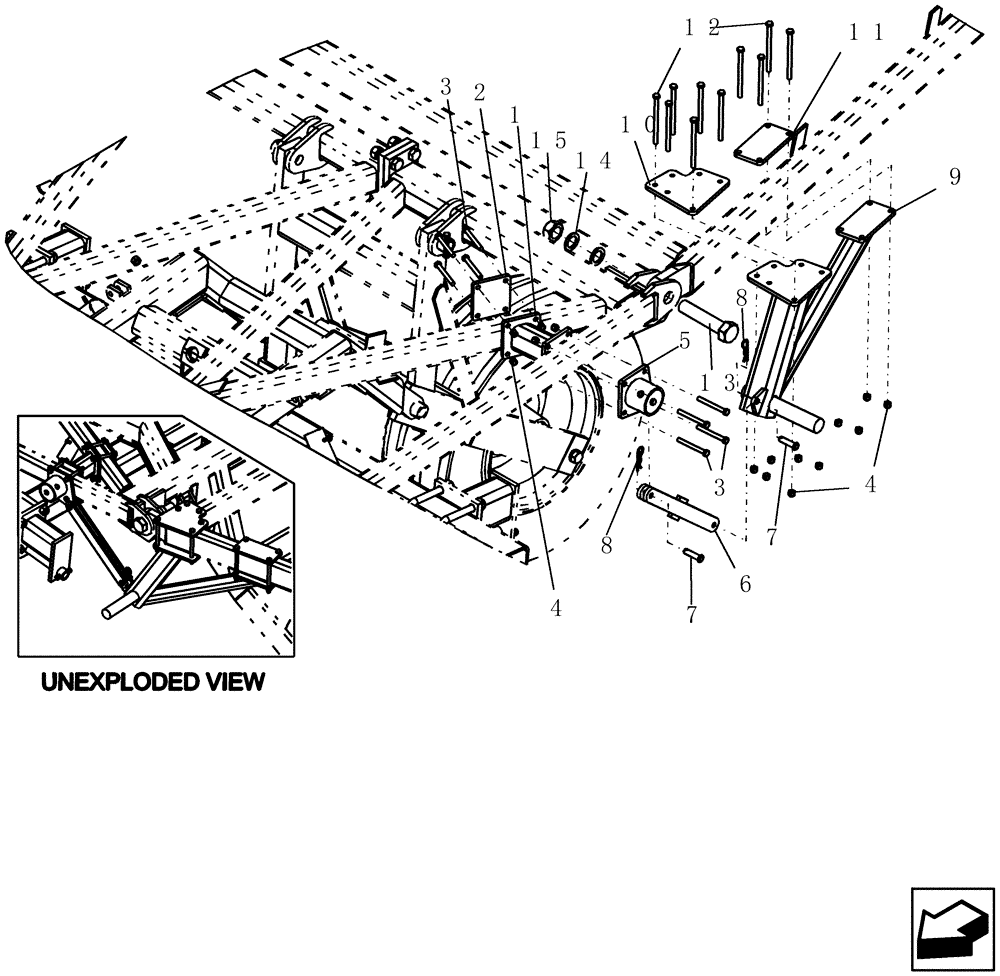

Запчасти Case IH 700 (39.110.08) - HITCH, REAR AIR CART AUXILIARY SUPPORT (39) - FRAMES AND BALLASTING

1

87696919

BRACKET

hitch jack mount support

1шт.

2

87696929

PLATE

hitch jack

1шт.

3

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

8шт.

4

88902

NUT,3/8"-16

18шт.

5

87696921

MOUNTING PARTS

hitch jack

1шт.

6

87696925

SUPPORT

hitch strut

1шт.

7

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

2шт.

8

87328562

HAIR PIN COTTER

1/8" x 2 9/16"

2шт.

9

87696927

FRAME

hitch jacking point

1шт.

10

87696930

PLATE

hitch support

1шт.

11

87699206

PLATE

hitch support

1шт.

12

20304

BOLT,Hex, 3/8" - 16 x 5 1/2", Gr 5

10шт.

13

7110

BOLT,Hex, 1 1/4" - 7 x 6", Gr 5

1шт.

14

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

15

86609684

NUT,1 1/4"-7, GB

1шт.
