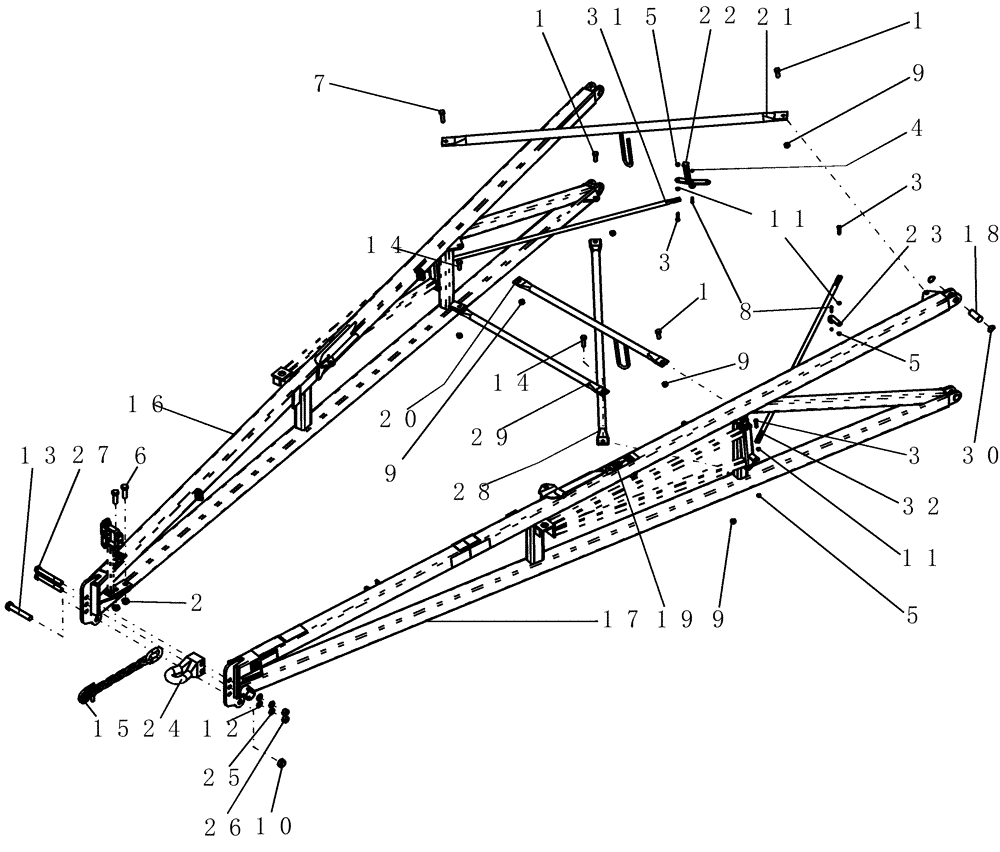

Запчасти Case IH 700 (39.110.05) - HITCH, ASSEMBLY (39) - FRAMES AND BALLASTING

1

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

4шт.

2

280286

NUT,1"-8, GB

2шт.

3

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

4

280736

NUT,5/16"-18, GC

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

4шт.

6

84128

BOLT,Hex, 1" x 3", Gr 5

2шт.

7

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

8

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

9

280375

NUT,3/4"-10, GC

6шт.

10

86609684

NUT,1 1/4"-7, GB

1шт.

11

86632558

JAM NUT,Jam, 1/2"-13, G5

3шт.

12

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

13

87552232

BOLT,Hex, 1 1/4" - 7 x 7 1/2", Gr 5

1шт.

14

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

1шт.

15

GR-457A

CHAIN (AG)

assembly, safety 60,600 lb

1шт.

16

87502366

HITCH

front right

1шт.

17

87502369

HITCH

front left

1шт.

18

87420080

HEADLESS PIN

1 1/2" x 3 15/32" ul

4шт.

19

87485204

DECAL

center lockshaft

1шт.

19

87492922

DECAL

pull handle, Russian

1шт.

19

87492921

DECAL

pull handle, French

1шт.

20

87565830

SUPPORT

front hitch cross

1шт.

21

87503845

SUPPORT

front hitch long

1шт.

22

87503846

ARM

hydraulic valve

1шт.

23

87571659

ARM

valve actuator

1шт.

24

87506220

HITCH

hitch

1шт.

24

84471082

HITCH

CAT 4,5, Not Shown

1шт.

25

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

2шт.

26

86511609

NUT,1"-8, G8

2шт.

27

87020629

BOLT,Hex, 1" - 8 x 8 1/2", Gr 8

2шт.

28

87503834

SUPPORT

crossmember hitch

1шт.

29

87503837

SUPPORT

crossmember hitch

2шт.

30

86632531

SNAP RING,#150, Ext

8шт.

31

87503849

LINK

tension

1шт.

32

87571244

LINK

valve shut off

1шт.
