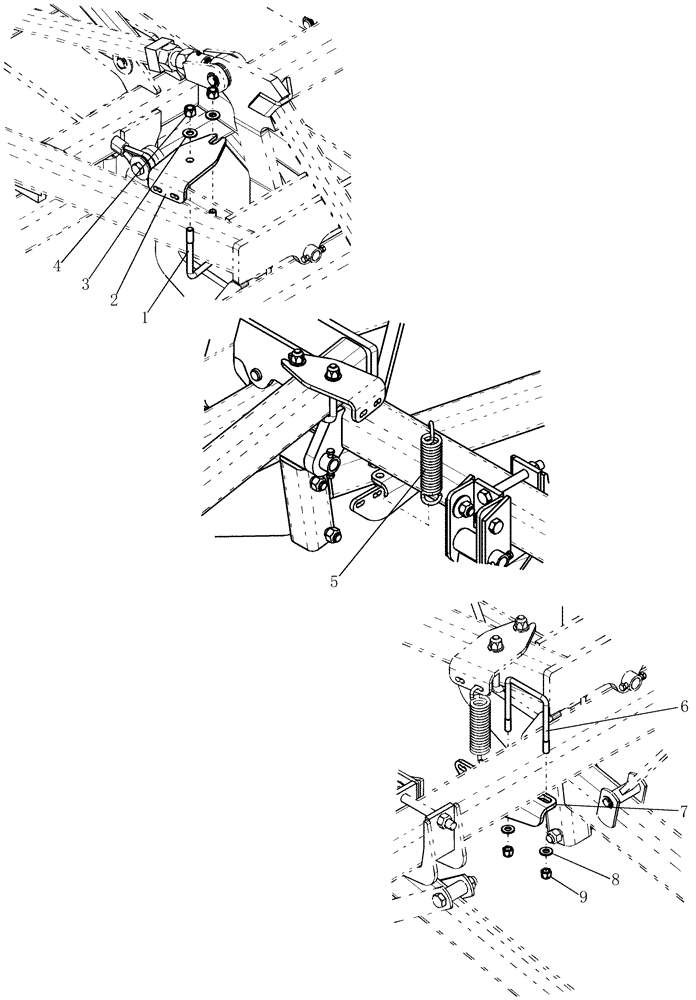

Запчасти Case IH 700 (39.100.23[01]) - OUTER TOOLBAR FRAME SPRING 60-10", 60-7 1/2" (39) - FRAMES AND BALLASTING

1

9987

U-BOLT

us 5/8"-11 3 1/16" w 5 1/2" d G5

2шт.

2

84293464

BRACKET

spring, 2 hole

2шт.

3

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

4

85700693

NUT,5/8" - 11, Gr C

4шт.

5

87506498

TENSION SPRING

.295 wire x 1.74 od x 7.8 inside hooks, 20 coils

2шт.

6

412749A1

U-BOLT

us 1/2"-13 4 1/8" w 5 1/4" d G5 1 1/4" thread

2шт.

7

84293460

BRACKET

Spring, 2 Hole Mount

2шт.

8

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

4шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.
